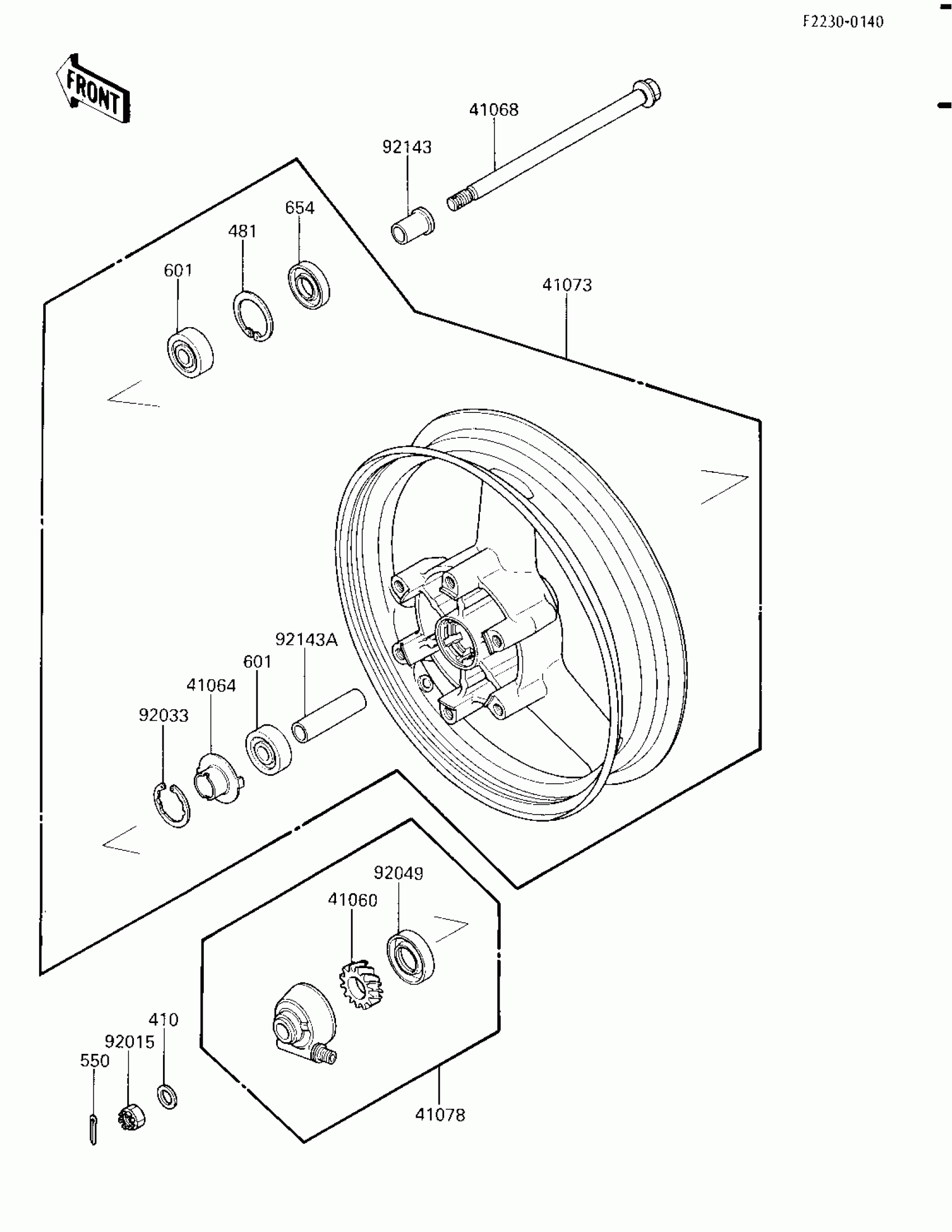

Kawasaki Ninja® 250R FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW,23T

41060-1107

$20.90

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.81

41068

AXLE,FR

41068-1220

$69.66

41073

WHEEL-ASSY,FR,WHITE N

41073-1332-T6

$587.92

41078

CASE-ASSY-METER GEAR

41078-1055

$124.72

92015

NUT,CASTLE,14MM

42045-020

$7.80

92033

RING-SNAP,42MM

92033-1041

$4.88

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

92143

COLLAR,L=36.5

92027-1979

$19.46

92143A

COLLAR,15.2X22X60

92027-1980

$14.15

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

550

PIN-COTTER,3.0X25

550D3025

Unavailable

601

BEARING-BALL

601B6202UU

$20.38

654

OIL SEAL,22X35X8

654A223508

Unavailable
