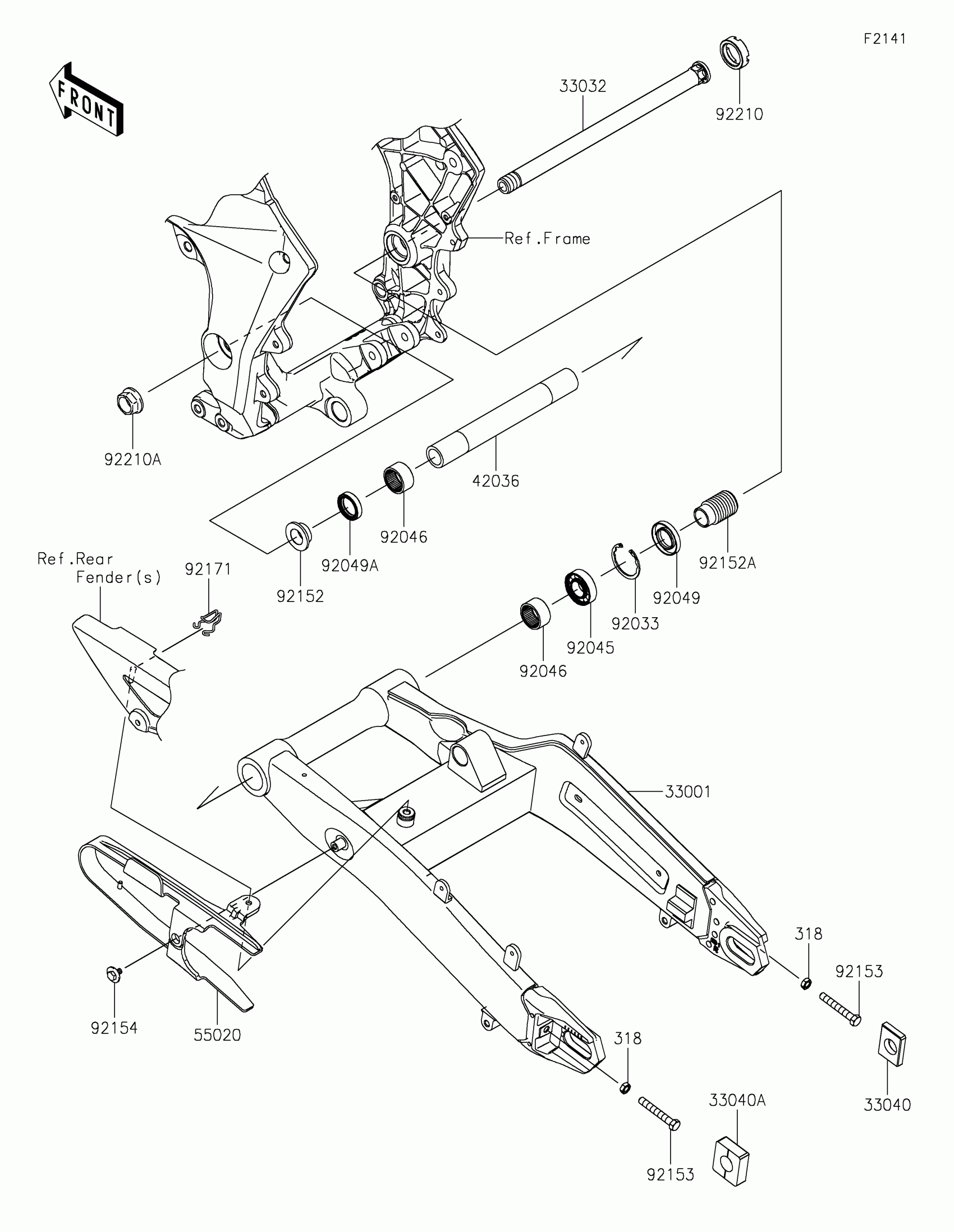

Kawasaki Ninja 1100SX SE Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING

33001-0764

$966.94

33032

SHAFT-SWING ARM

33032-0044

$106.56

33040

ADJUSTER-CHAIN,RH

33040-0040

Unavailable

33040A

ADJUSTER-CHAIN,LH

33040-0110

$35.07

42036

SLEEVE,20.1X28X226

42036-0069

$73.05

55020

GUARD,CHAIN

55020-0903

$76.25

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$7.08

92152

COLLAR,SWING ARM,L=12.5

92152-1234

$6.84

92152A

COLLAR,SWING ARM,L=47

92152-2980

$37.85

92153

BOLT,8X55

92153-1407

$1.57

92154

BOLT-UPSET-WP,6X12

92154-4179

$1.03

92171

CLAMP

92171-0907

$9.93

92210

NUT,30MM

92210-0134

$25.26

92210A

NUT,FLANGED,20MM

92210-0320

$9.07

318

NUT-HEX-SMALL,8MM

318AA0800

$0.54
