2025 Kawasaki Ninja 1100SX Se Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

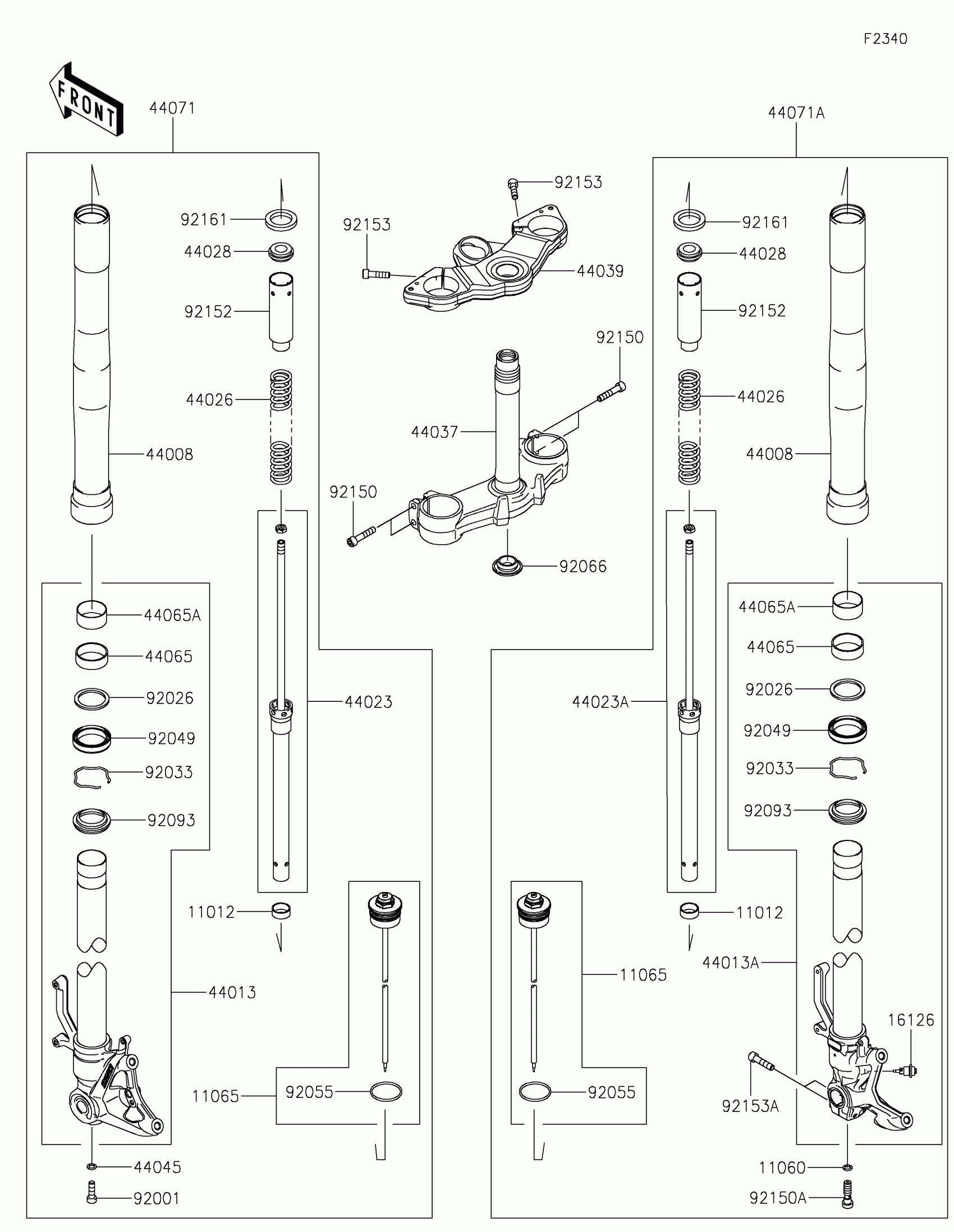

2025 Kawasaki Ninja 1100SX Se Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1761

1

$35.56

In stock

11060

1

$3.25

In stock

11065

CAP,FORK BOLT COMP

11065-1500

1

$121.56

In stock

16126

VALVE,FORK

16126-0031

1

$182.76

In stock

44008

PIPE-FORK OUTER,GRAY

44008-0053-11G

1

$481.45

In stock

44013

PIPE-FORK INNER,LH

44013-0418

1

$476.65

In stock

44013A

PIPE-FORK INNER,RH

44013-0419

1

$476.65

In stock

44023

1

$454.26

In stock

44023A

1

$462.44

In stock

44026

SPRING-FRONT FORK

44026-0153

1

$93.11

In stock

44028

GUIDE-FORK SPRING

44028-1083

1

$9.07

In stock

44037

HOLDER-FORK UNDER

44037-0220

1

$567.90

In stock

44039

1

$316.22

In stock

44045

1

$4.88

In stock

44065

1

$19.06

In stock

44065A

BUSHING-FRONT FORK

44065-0036

1

$19.31

In stock

44071

DAMPER-ASSY,FORK,LH

44071-1633

1

$964.25

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-1634

1

$969.30

In stock

92001

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1

$5.15

In stock

92049

SEAL-OIL

92049-0125

1
Out of stock

92055

RING-O

92055-0131

1

$4.95

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

SEAL,DUST

92093-0035

1

$23.33

In stock

92150

BOLT,SOCKET

92150-1512

1
Out of stock

92150A

BOLT,FORK CYLINDER

92150-1514

1

$5.81

In stock

92152

COLLAR

92152-0263

1

$14.39

In stock

92153

BOLT,SOCKET,8X30

92153-0500

1
Out of stock

92153A

BOLT,SOCKET

92153-0537

1
Out of stock

92161

DAMPER

92161-0418

1

$6.11

In stock
