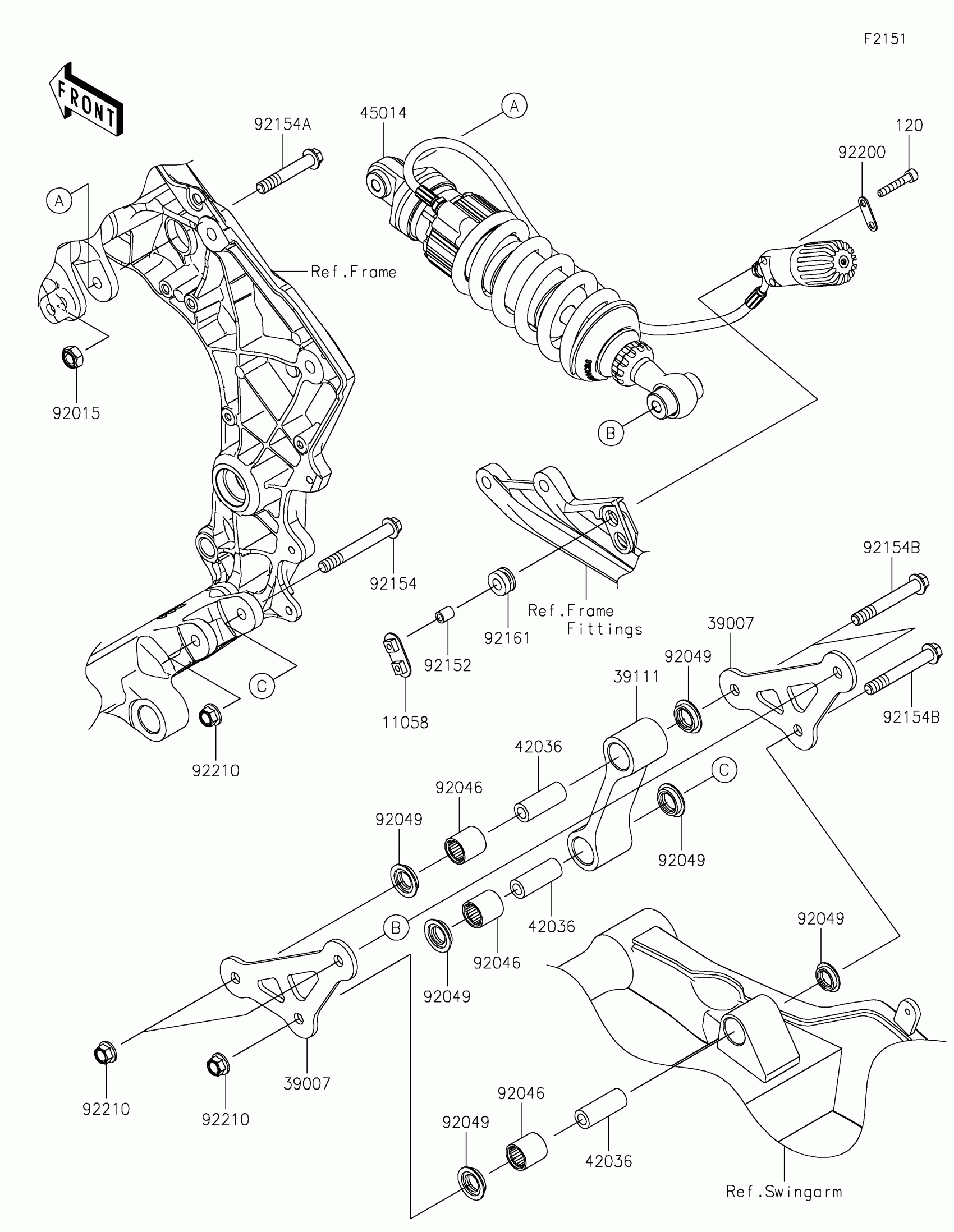

Kawasaki Ninja 1100SX SE Suspension/Shock Absorber Diagram

Description

Price

11058

BRACKET,ADJUSTER

11058-1363

$7.22

39007

ARM-SUSP,P.SILVER

39007-0405-458

$31.10

39111

ROD-TIE,SUSPENSION

39111-0414

$48.20

42036

SLEEVE,10.1X17X44.5

42036-1342

$10.83

45014

SHOCKABSORBER,OHLINS

45014-0828

$1,616.14

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92152

COLLAR,6.4X10X12

92152-1628

$7.81

92154

BOLT,FLANGED,10X77

92154-0262

$4.92

92154A

BOLT,FLANGED,10X60

92154-0263

$4.66

92154B

BOLT,FLANGED,10X67

92154-0264

$4.66

92161

DAMPER

92161-2540

$3.95

92200

WASHER,ADJUSTER

92200-2637

$3.71

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

120

BOLT-SOCKET,6X35

120CC0635

$1.93
