2025 Kawasaki Ninja 1100SX Se Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

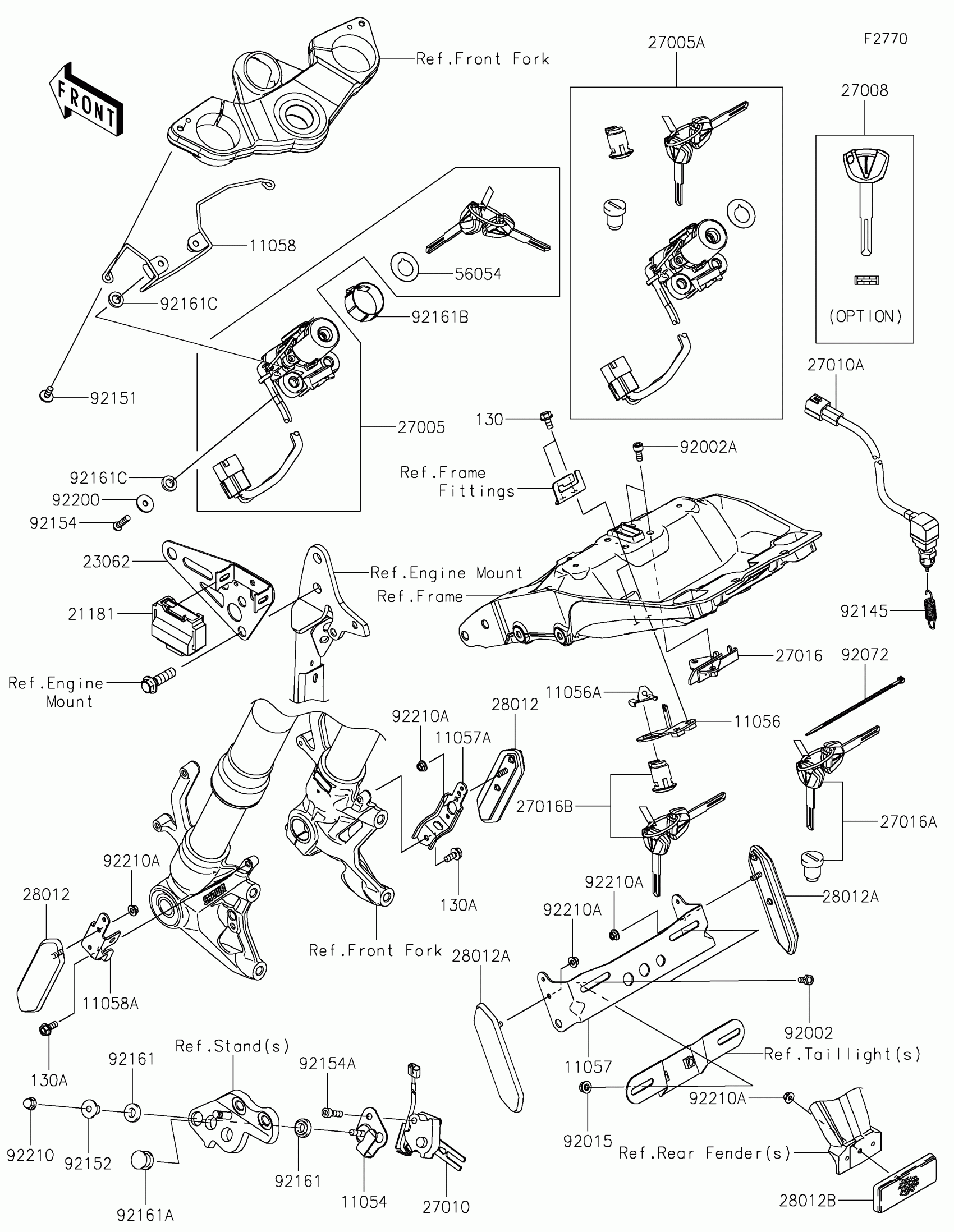

2025 Kawasaki Ninja 1100SX Se Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,SIDE STAND SWITCH

11054-1904

1
Out of stock

11056

BRACKET,KEY CYLINDER

11056-0264

1
Out of stock

11056A

BRACKET

11056-1084

1
Out of stock

11057

BRACKET,RR,REFLECTOR

11057-2748

1
Out of stock

11057A

BRACKET,REFLECTOR,RH

11057-7295

1
Out of stock

11058

BRACKET,IGNITION SWITCH

11058-1358

1
Out of stock

11058A

BRACKET,REFLECTOR,LH

11058-2247

1
Out of stock

21181

AMPLIFIER,IMMOBI

21181-0029

1
Out of stock

23062

BRACKET-COMP,REGULATOR

23062-0902

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0725

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-5202

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0662

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0112

1
Out of stock

27010A

SWITCH,CRUISE CONTROL CANCEL

27010-0923

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,TANK CAP

27016-5425

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5427

1
Out of stock

28012

REFLECTOR-REFLEX,CCC

28012-0045

1
Out of stock

28012A

REFLECTOR-REFLEX,RED,CCC

28012-0046

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

56054

MARK,IGNITION SWITCH

56054-3854

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92072

BAND,L=148

92072-3768

1
Out of stock

92145

SPRING,BRAKE LAMP SWITCH

92145-1902

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR

92152-1074

1
Out of stock

92154

BOLT,TORX,6X24

92154-1129

1
Out of stock

92154A

BOLT,SOCKET,6X22

92154-1898

1
Out of stock

92161

DAMPER

92161-0117

1
Out of stock

92161A

DAMPER

92161-0118

1
Out of stock

92161B

DAMPER

92161-1506

1
Out of stock

92161C

DAMPER,10X17X3

92161-1507

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210A

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130A

BOLT-FLANGED,6X14

130BB0614

1
Out of stock
