2025 Kawasaki Ninja 1100SX Se Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

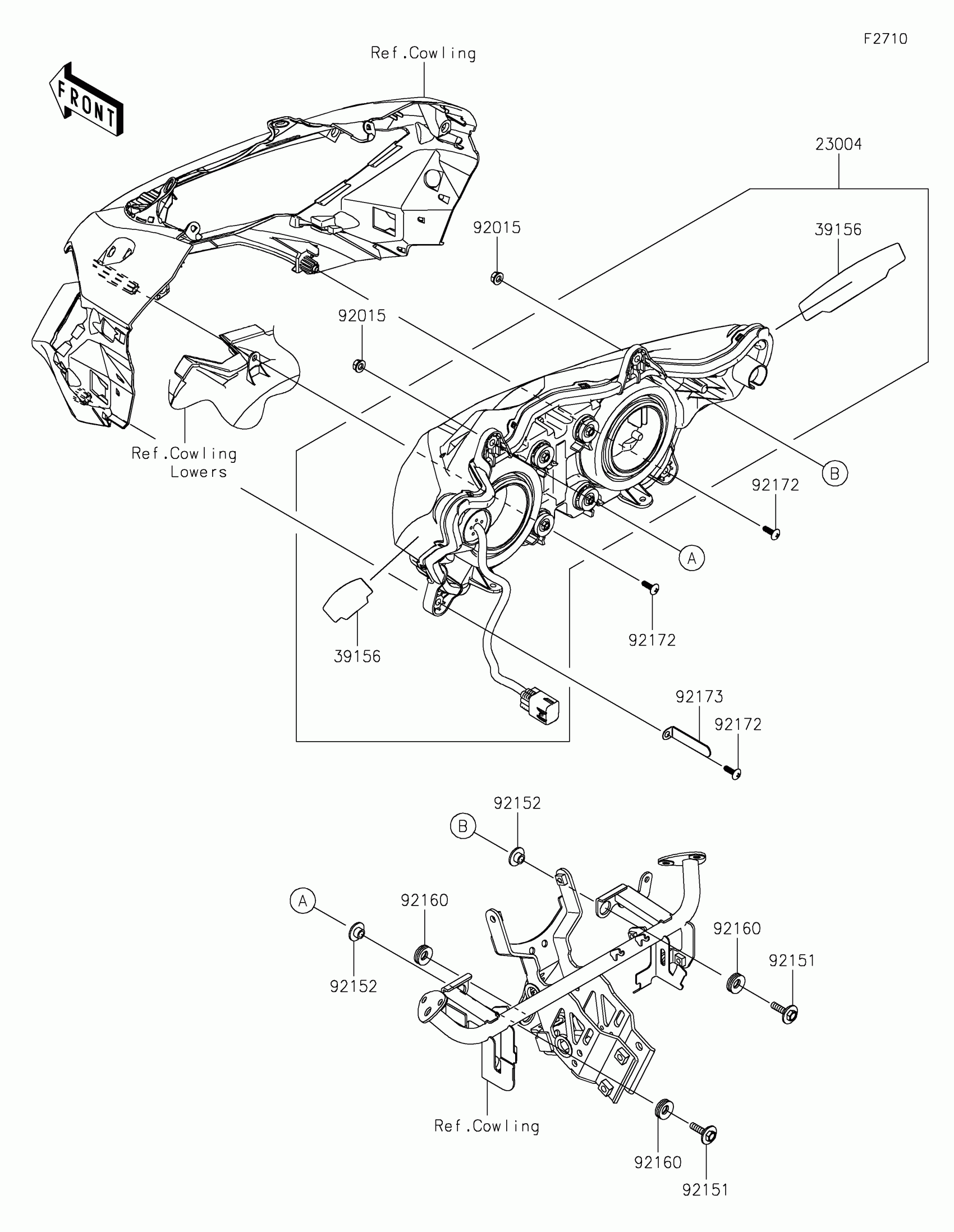

2025 Kawasaki Ninja 1100SX Se Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0412

1

$1,210.68

In stock

39156

PAD

39156-2153

1

$19.64

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92151

BOLT,6X25

92151-1241

1

$3.97

In stock

92152

COLLAR

92152-1255

1

$3.29

In stock

92160

DAMPER

92160-1278

1

$3.49

In stock

92172

SCREW,TAPPING,5X16

92172-0238

1

$0.97

In stock

92173

CLAMP

92173-2861

1

$2.53

In stock
