2025 Kawasaki Ninja 1100SX Se Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

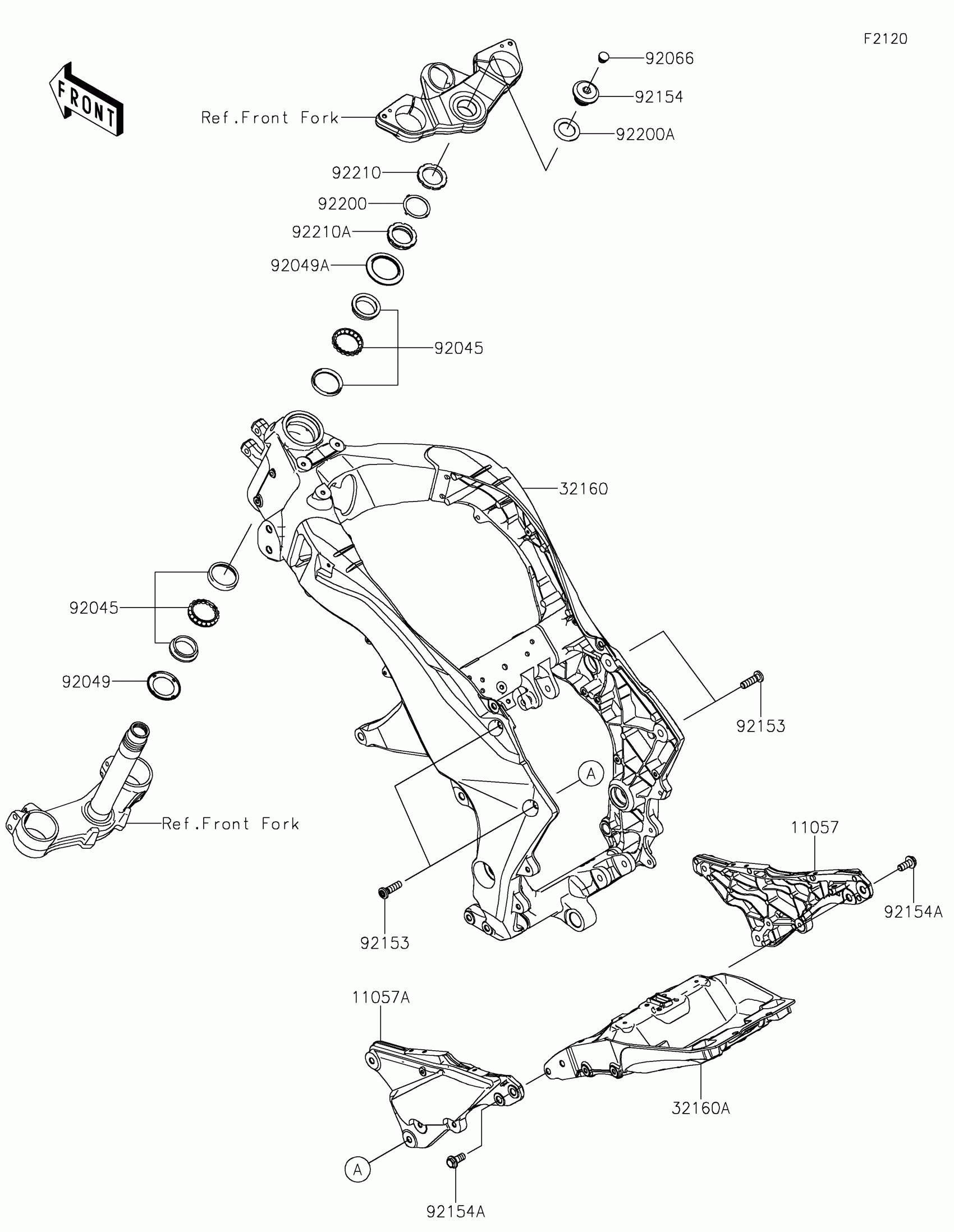

2025 Kawasaki Ninja 1100SX Se Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR,RH,F.S.BLACK

11057-0807-18R

1

$295.63

In stock

11057A

BRACKET,RR,LH,F.S.BLACK

11057-2955-18R

1

$313.41

In stock

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-1882-18R

1

$1,971.26

In stock

32160A

FRAME-COMP,RR

32160-2045

1

$693.55

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92066

PLUG

92066-0071

1

$2.68

In stock

92153

BOLT,SOCKET,10X35

92153-1442

1
Out of stock

92154

BOLT,26MM

92154-7059

1

$29.32

In stock

92154A

BOLT,FLANGED,10X23

92154-7488

1

$5.92

In stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,27X42X2.3

92200-0081

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0823

1
Out of stock
