2025 Kawasaki Ninja 1100SX Se Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

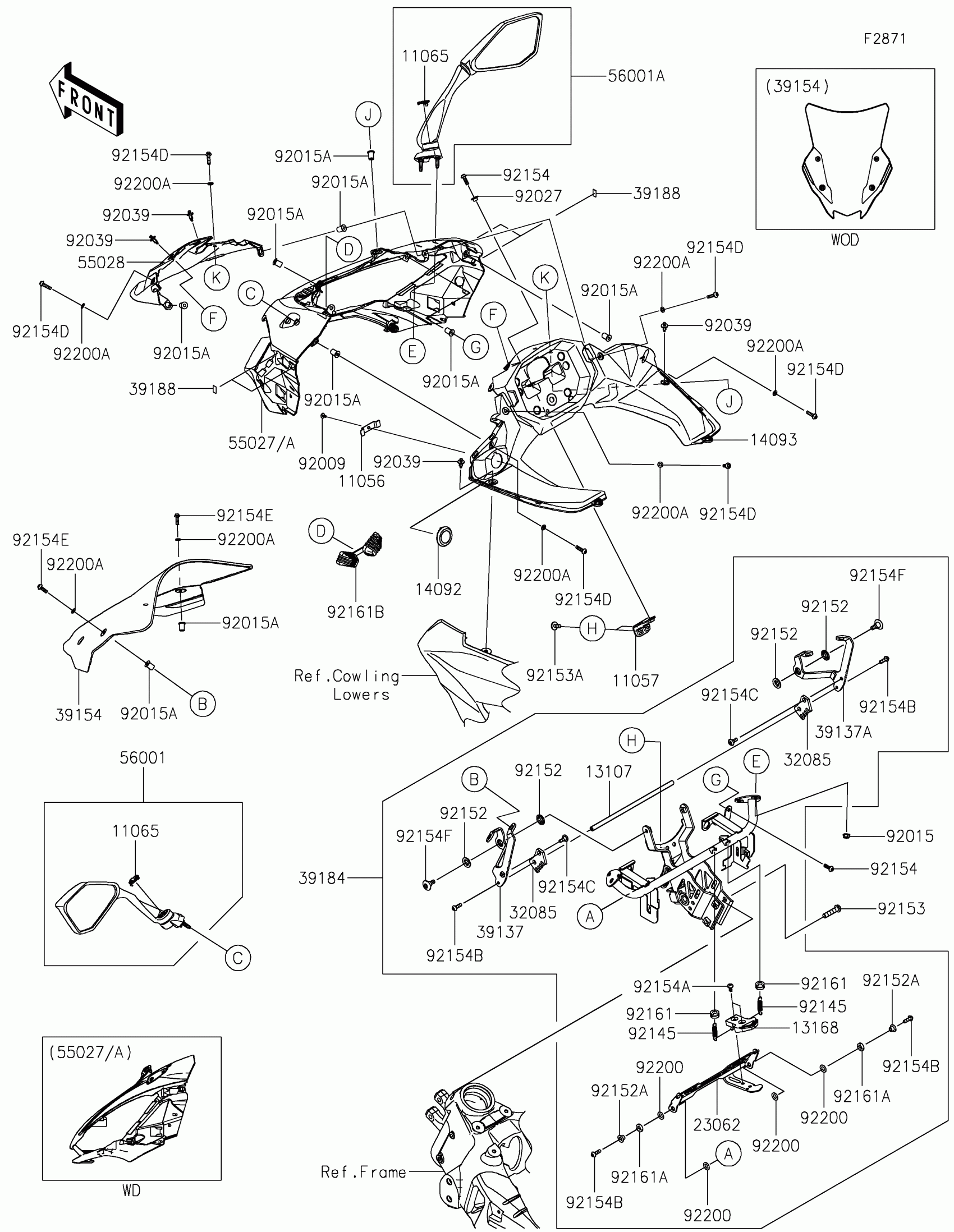

2025 Kawasaki Ninja 1100SX Se Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0373

1
Out of stock

11057

BRACKET,METER COVER

11057-0403

1
Out of stock

11065

CAP,MIRROR

11065-0945

1
Out of stock

13107

SHAFT

13107-0241

1
Out of stock

13168

LEVER,ADJUST

13168-0211

1
Out of stock

14092

COVER,DC SOCKET

14092-0214

1
Out of stock

14093

COVER,METER

14093-1097

1
Out of stock

23062

BRACKET-COMP

23062-0136

1
Out of stock

32085

STOPPER

32085-0865

1
Out of stock

39137

STAY-COMP,LH

39137-0670

1
Out of stock

39137A

STAY-COMP,RH

39137-0671

1
Out of stock

39154

WINDSHIELD

39154-0434

1
Out of stock

39184

BRACKET-ASSY,WINDSHIELD

39184-0749

1
Out of stock

39188

TAPE

39188-0022

1
Out of stock

55027

COWLING,UPP,M.D.BLACK

55027-5407-17K

1
Out of stock

55027A

COWLING,UPP,M.M.G.GRAY

55027-5408-68P

1
Out of stock

55028

COWLING,FR

55028-0621

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0259

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0260

1
Out of stock

92009

SCREW,TAPPING,4X8

92009-1155

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR

92027-1880

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92145

SPRING

92145-0805

1
Out of stock

92152

COLLAR,10X20X3.75

92152-0913

1
Out of stock

92152A

COLLAR,5.6X8X7.8

92152-1506

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92153A

BOLT,SOCKET,6X14

92153-1021

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X10

92154-0211

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-0287

1
Out of stock

92154C

BOLT,SOCKET,5X14

92154-0427

1
Out of stock

92154D

BOLT,SOCKET,5X20

92154-0919

1
Out of stock

92154E

BOLT,SOCKET,5X18

92154-1945

1
Out of stock

92154F

BOLT,SOCKET,6X18

92154-2316

1
Out of stock

92161

DAMPER

92161-0056

1
Out of stock

92161A

DAMPER,8.2X15X3

92161-0998

1
Out of stock

92161B

DAMPER

92161-1886

1
Out of stock

92200

WASHER,8.2X15X1

92200-0742

1
Out of stock

92200A

WASHER,5.2X10X1.0

92200-1820

1
Out of stock
