2025 Kawasaki Ninja 1100SX Se Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

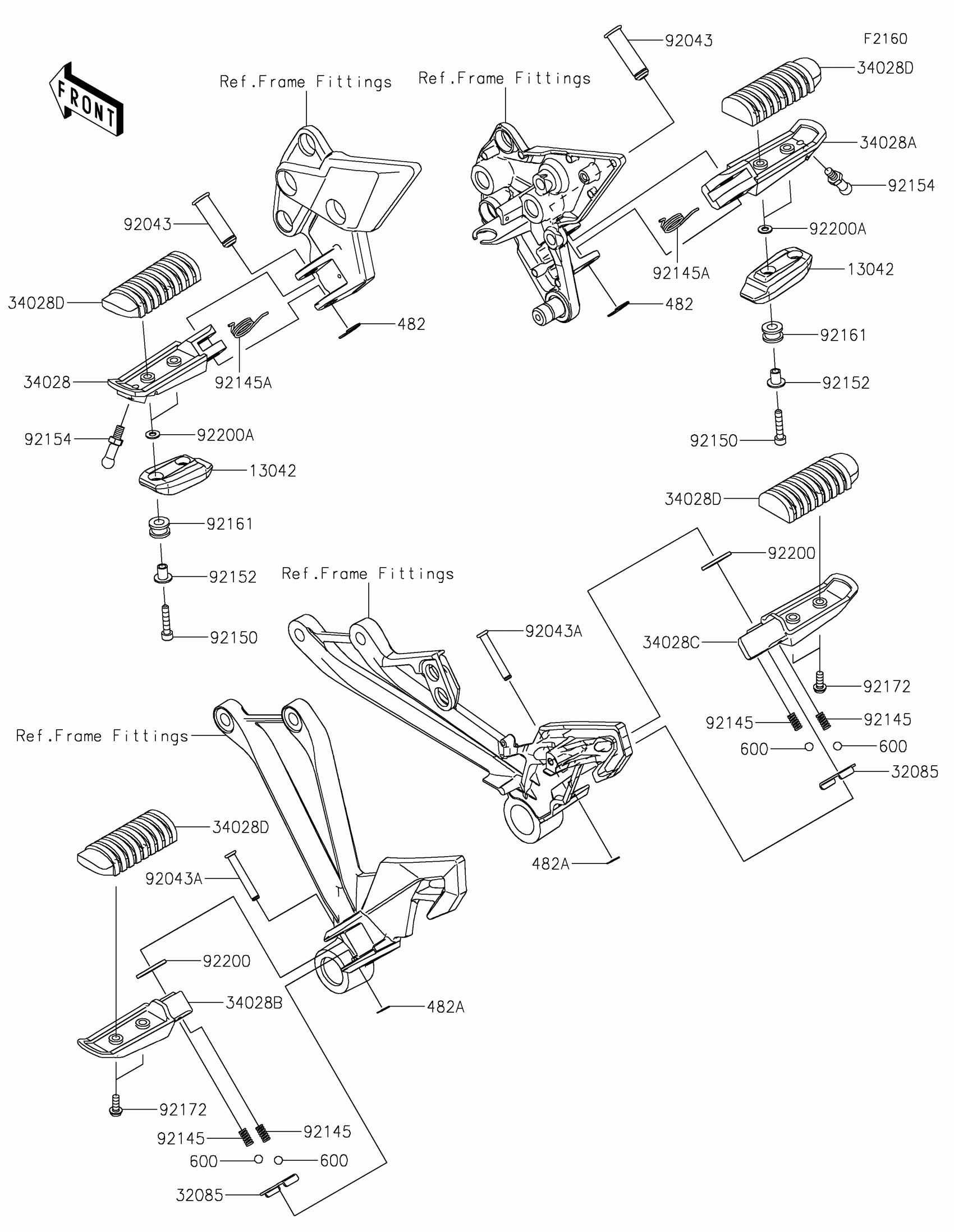

2025 Kawasaki Ninja 1100SX Se Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,STEP

13042-0773

1
Out of stock

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,FR,LH

34028-0352

1
Out of stock

34028A

STEP,FR,RH

34028-0353

1
Out of stock

34028B

STEP,RR,LH

34028-0377

1
Out of stock

34028C

STEP,RR,RH

34028-0378

1
Out of stock

34028D

STEP,RUBBER

34028-1430

1
Out of stock

92043

PIN,12X42.5

92043-1594

1
Out of stock

92043A

PIN,6X40

92043-1595

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92145A

SPRING

92145-1828

1
Out of stock

92150

BOLT,SOCKET,5X25

92150-1684

1
Out of stock

92152

COLLAR

92152-2596

1
Out of stock

92154

BOLT,BANK SENSOR,6X10

92154-1854

1
Out of stock

92161

DAMPER,8X16X8

92161-2082

1
Out of stock

92172

SCREW,5X14

92172-0976

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

92200A

WASHER,5.3X11X1

92200-1929

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
