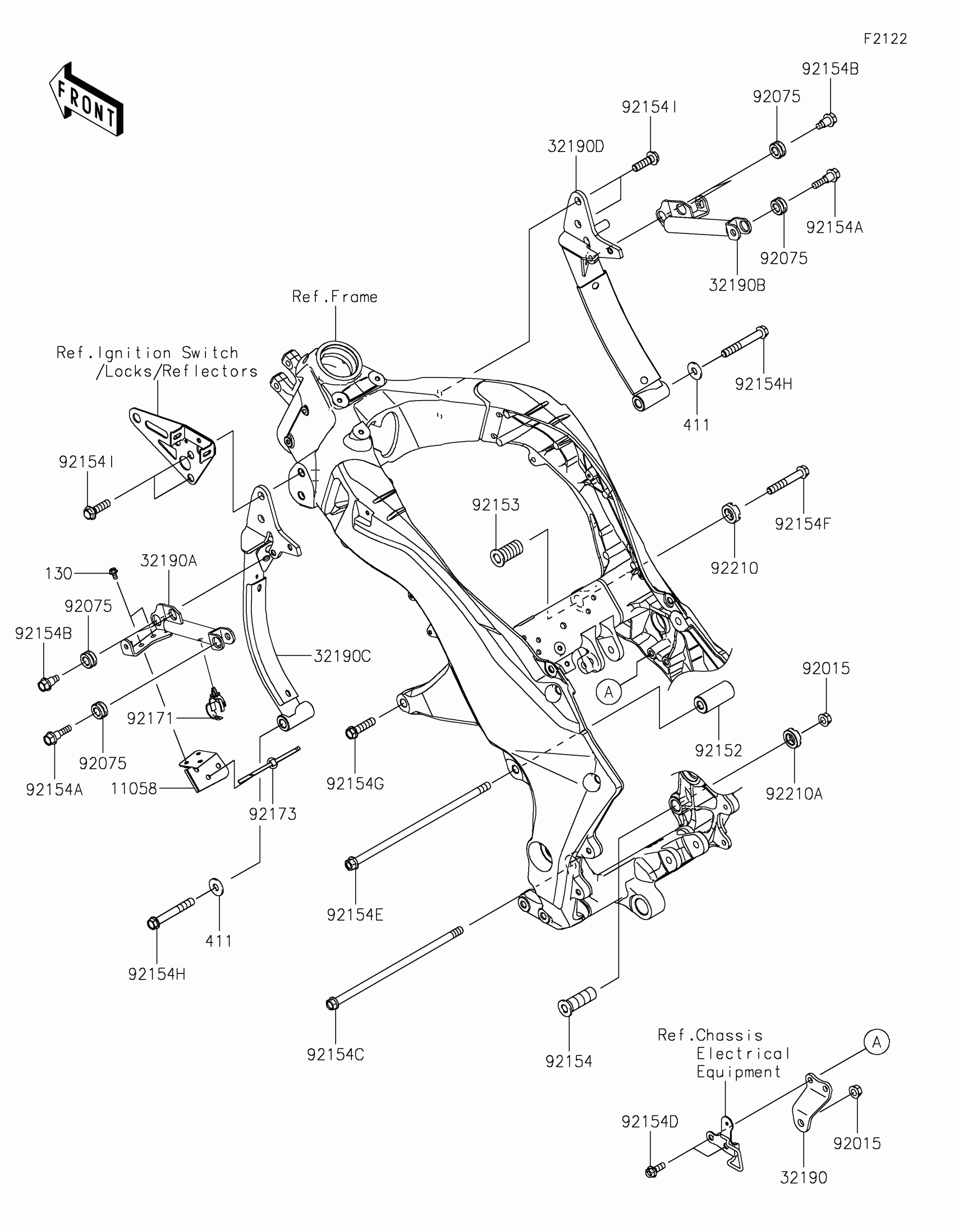

Kawasaki Ninja 1100SX SE Engine Mount Diagram

#

Description
Price

11058

BRACKET,HEAT SHIELD,LH

11058-1374

$9.07

32190

BRACKET-ENGINE,CR CASE UPP,BLK

32190-0458-18R

$10.69

32190A

BRACKET-ENGINE,LH

32190-0582

$38.19

32190B

BRACKET-ENGINE,RH

32190-0583

$38.19

32190C

BRACKET-ENGINE,LH,F.S.BLACK

32190-0648-18R

$164.07

32190D

BRACKET-ENGINE,RH,F.S.BLACK

32190-0649-18R

$164.07

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92075

DAMPER

92075-1898

$3.57

92152

COLLAR,11X26X56.5

92152-0853

$14.78

92153

BOLT,SOCKET,20X43

92153-0488

$17.08

92154

BOLT,ENGINE MOUNT,18X53.5

92154-0267

$29.09

92154A

BOLT,FLANGED,8X35

92154-0742

$10.22

92154B

BOLT,FLANGED,8X20

92154-0749

$9.68

92154C

BOLT,FLANGED,10X255

92154-0827

$23.92

92154D

BOLT,FLANGED,8X20

92154-1852

$2.15

92154E

BOLT,FLANGED,10X270

92154-2309

$29.09

92154F

BOLT,FLANGED,10X65

92154-2310

$7.47

92154G

BOLT,FLANGED,10X40

92154-2311

$4.92

92154H

BOLT,FLANGED,10X75

92154-2312

Unavailable

92154I

BOLT,FLANGED,10X35

92154-7111

$4.90

92171

CLAMP,20MM DIA.

92171-0069

$2.29

92173

CLAMP

92173-0742

$6.99

92210

NUT,20MM

92210-0591

$14.78

92210A

NUT,CASTLE,18MM

92210-1517

$16.64

130

BOLT-FLANGED,5X10

130BB0510

$4.19

411

WASHER-PLAIN,10MM,BLACK

411AB1000

$3.68
