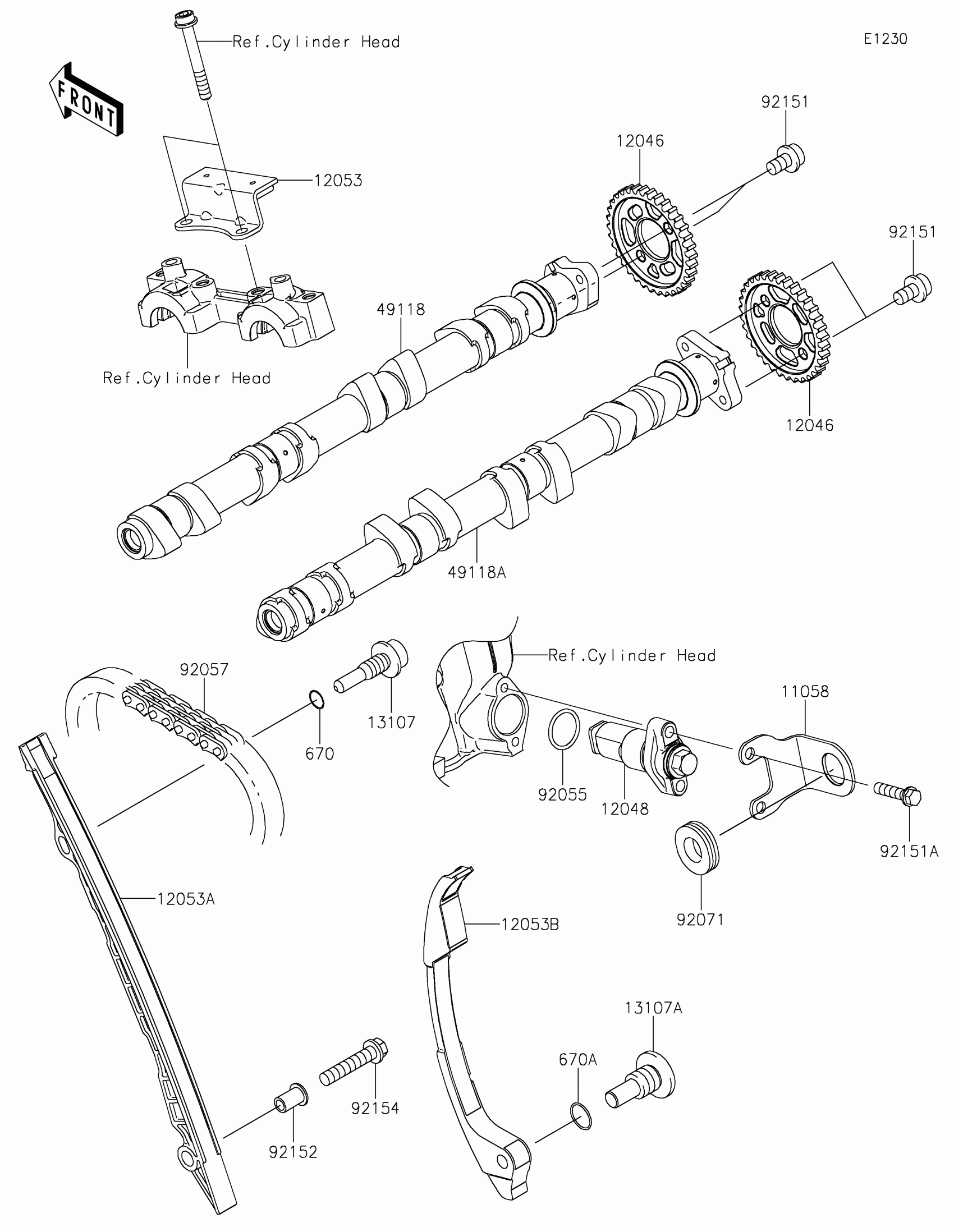

Kawasaki Ninja 1100SX SE Camshaft(s)/Tensioner Diagram

Description

Price

11058

BRACKET

11058-1159

$5.46

12046

SPROCKET,34T

12046-0646

$25.24

12048

TENSIONER-ASSY

12048-0080

$141.91

12053

GUIDE-CHAIN,UPP

12053-0163

$38.79

12053A

GUIDE-CHAIN,FR

12053-0342

$29.82

12053B

GUIDE-CHAIN,RR

12053-0343

$118.25

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

13107A

SHAFT

13107-1376

$8.46

49118

CAMSHAFT-COMP,EXHAUST

49118-1302

$436.76

49118A

CAMSHAFT-COMP,INTAKE

49118-1303

$436.76

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,98XRH2015-128M

92057-0901

$112.26

92071

GROMMET

92071-1043

$3.91

92151

BOLT,SOCKET,6X10

92151-1829

$1.98

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-1167

$5.25

92154

BOLT,FLANGED,6X30

92154-1942

$2.37

670

O RING,9MM

670D1509

$3.57

670A

O RING,14MM

670D2014

$4.18
