Find the part on the Engine Cover diagram for your 2025 Kawasaki Ninja 1100SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

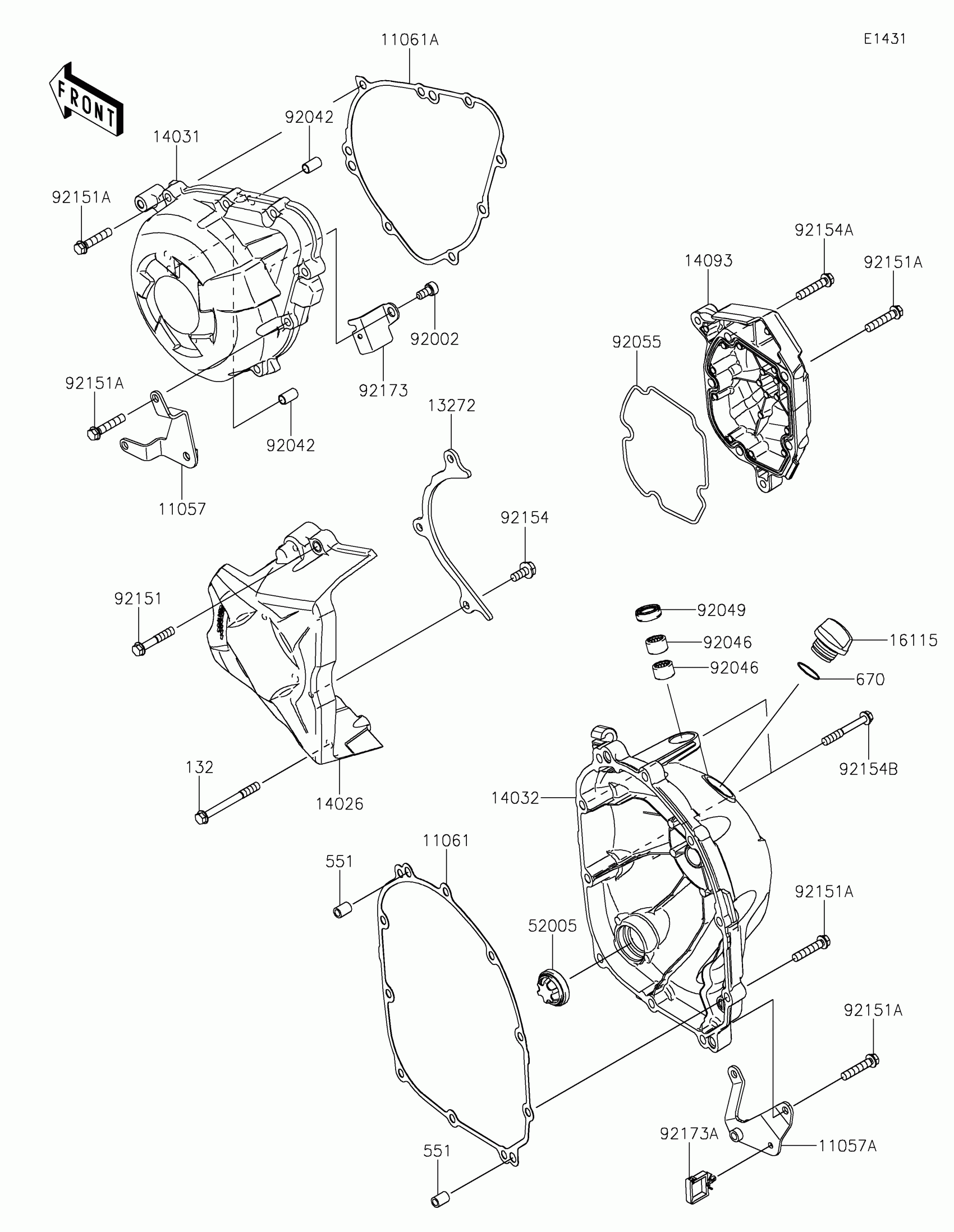

2025 Kawasaki Ninja 1100SX Se Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2957

1
Out of stock

11057A

BRACKET

11057-2958

1
Out of stock

11061

GASKET,CLUTCH

11061-1637

1
Out of stock

11061A

GASKET,GENERATOR

11061-1638

1
Out of stock

13272

PLATE

13272-0859

1
Out of stock

14026

COVER-CHAIN

14026-0161

1
Out of stock

14031

COVER-GENERATOR

14031-0610

1
Out of stock

14032

COVER-CLUTCH

14032-0704

1
Out of stock

14093

COVER,PULSER

14093-0543

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

52005

GAUGE

52005-1120

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92046

BEARING-NEEDLE,HK1210FM

92046-0034

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,PULSER COVER

92055-0199

1
Out of stock

92151

BOLT,6X35

92151-1135

1
Out of stock

92151A

BOLT,6X30

92151-1873

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X12

92154-1888

1
Out of stock

92154A

BOLT,6X30

92154-2652

1
Out of stock

92154B

BOLT,FLANGED,6X45

92154-7260

1
Out of stock

92173

CLAMP

92173-1321

1
Out of stock

92173A

CLAMP

92173-1513

1
Out of stock

132

BOLT-FLANGED-SMALL,6X60

132BC0660

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

670

O RING,20MM

670B2020

1
Out of stock
