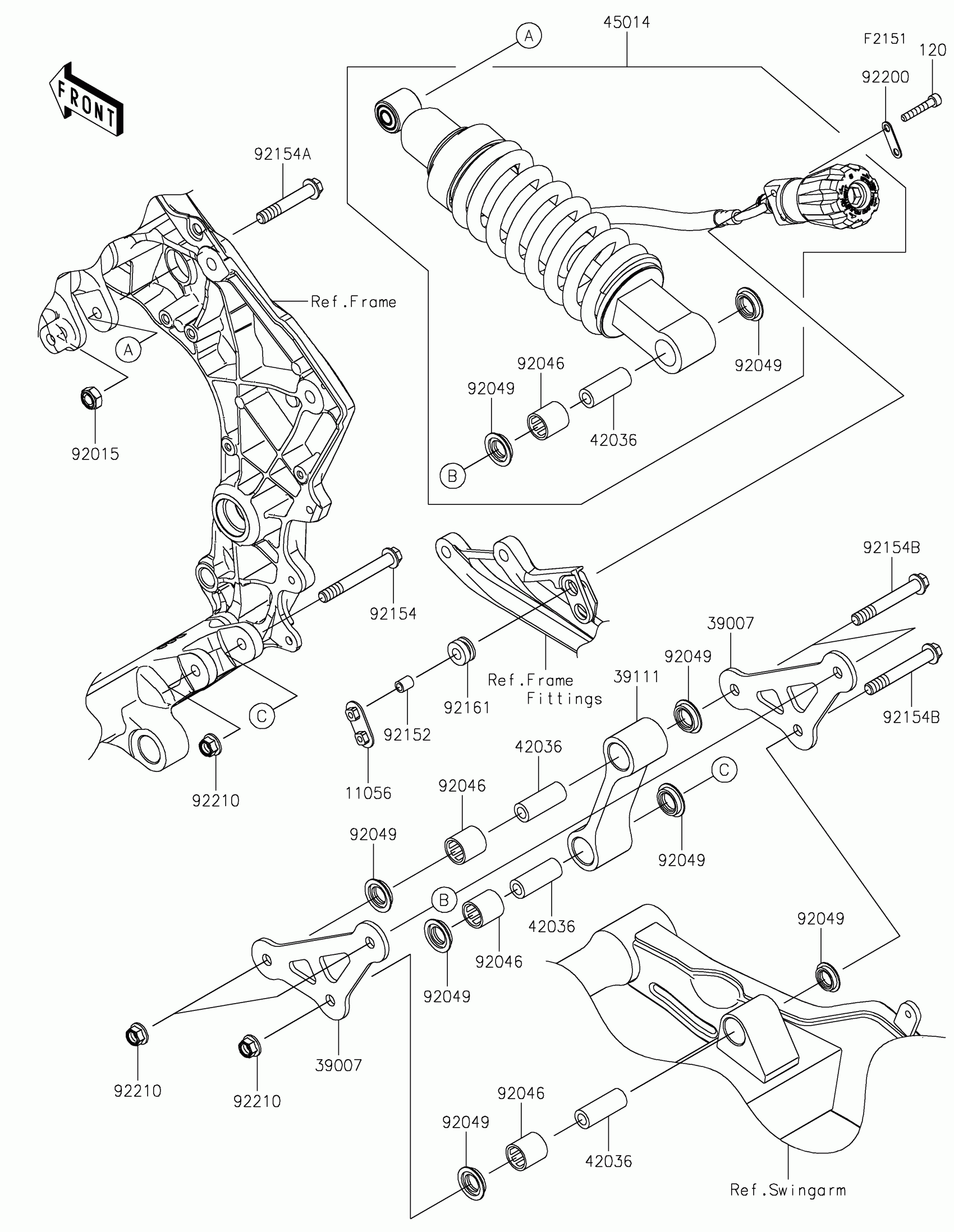

Kawasaki NINJA® 1000SX Suspension/Shock Absorber Diagram

Description

Price

11056

BRACKET

11056-1914

$4.95

120

BOLT-SOCKET,6X35

120CC0635

$1.93

39007

ARM-SUSP,P.SILVER

39007-0405-458

$31.10

39111

ROD-TIE,SUSPENSION

39111-0350

$98.23

42036

SLEEVE,10.1X17X44.5

42036-1342

$10.83

45014

SHOCKABSORBER,SPG SIL+BODY BLK

45014-0592-37R

$1,291.85

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92152

COLLAR,6.4X10X12

92152-1628

$7.81

92154

BOLT,FLANGED,10X77

92154-0262

$4.92

92154A

BOLT,FLANGED,10X60

92154-0263

$4.66

92154B

BOLT,FLANGED,10X67

92154-0264

$4.66

92161

DAMPER

92161-0036

$1.98

92200

WASHER

92200-2307

$2.29

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
