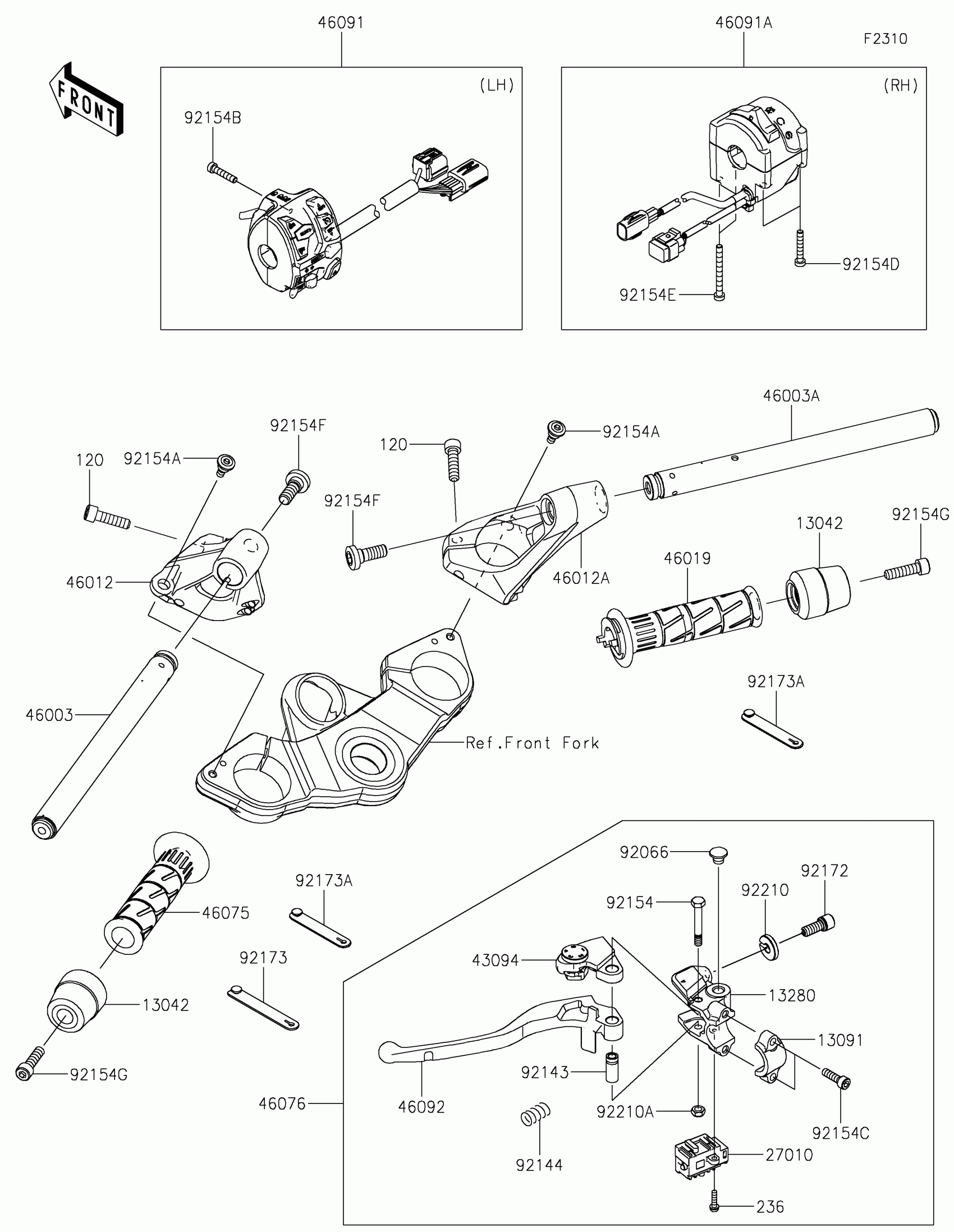

Kawasaki NINJA® 1000SX Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,8X30

120CA0830

$1.98

13042

WEIGHT,HANDLE

13042-5025

$54.35

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13280

HOLDER

13280-0926

$52.39

236

SCREW-PAN-WSP-CROS

236AB0416

$9.90

27010

SWITCH,CLUTCH

27010-0925

Unavailable

43094

ADJUSTER

43094-0008

$36.81

46003

HANDLE,LH

46003-0764

$78.59

46003A

HANDLE,RH

46003-0765

$68.74

46012

HOLDER-HANDLE,LH,F.S.BLACK

46012-0090-18R

$124.04

46012A

HOLDER-HANDLE,RH,F.S.BLACK

46012-0091-18R

$124.04

46019

GRIP-ASSY,THROTTLE

46019-0080

$38.91

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0168

$130.44

46091

HOUSING-ASSY-CONTROL,LH

46091-0535

$447.28

46091A

HOUSING-ASSY-CONTROL,RH

46091-0545

$250.73

46092

LEVER-GRIP,CLUTCH

46092-0577

$15.87

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92154

BOLT

92154-2318

$6.02

92154A

BOLT,SOCKET,6X16.5

92154-2325

$3.15

92154B

BOLT,SOCKET,5X25

92154-2596

$3.51

92154C

BOLT,SOCKET,6X20

92154-2644

$2.98

92154D

BOLT,5X30

92154-3921

$3.51

92154E

BOLT,5X50

92154-3922

$3.51

92154F

BOLT,SOCKET,10X27

92154-4042

$18.22

92154G

BOLT,SOCKET,8X30

92154-4138

$2.29

92172

SCREW

92172-1138

$5.76

92173

CLAMP

92173-2194

$1.56

92173A

CLAMP

92173-2199

$1.32

92210

NUT

92210-1519

$10.02

92210A

NUT,LOCK,6MM

92210-1544

$2.72
