Description

Price

33001

ARM-COMP-SWING,F.S.BLACK

33001-0726-18R

$1,021.26

33032

SHAFT-SWING ARM

33032-0044

$106.56

42036

SLEEVE,20.1X28X226

42036-0069

$73.05

42036A

SLEEVE,REAR AXLE,LH,SILVER

42036-1153-KX

$106.91

42036B

SLEEVE,REAR AXLE,RH,SILVER

42036-1265-KX

$106.91

55020

GUARD,CHAIN

55020-0903

$76.25

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004UL11

92045-0017

$10.93

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$17.41

92049

SEAL-OIL,MHSA25X42X6

92049-1314

$10.44

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

$7.08

92151

BOLT,SOCKET,10X40

92151-1899

$4.42

92152

COLLAR,SWING ARM,L=47

92152-0154

$37.85

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

$6.84

92154

BOLT-UPSET-WP,6X12

92154-4179

$1.03

92171

CLAMP

92171-0907

$9.93

92200

WASHER,10.5X18X2.0

92200-0531

$3.12

92210

NUT,30MM

92210-0134

$25.26

92210A

NUT,FLANGED,20MM

92210-0320

$9.07

92210B

NUT,POP,6MM,L=16.5

92210-0324

$4.68

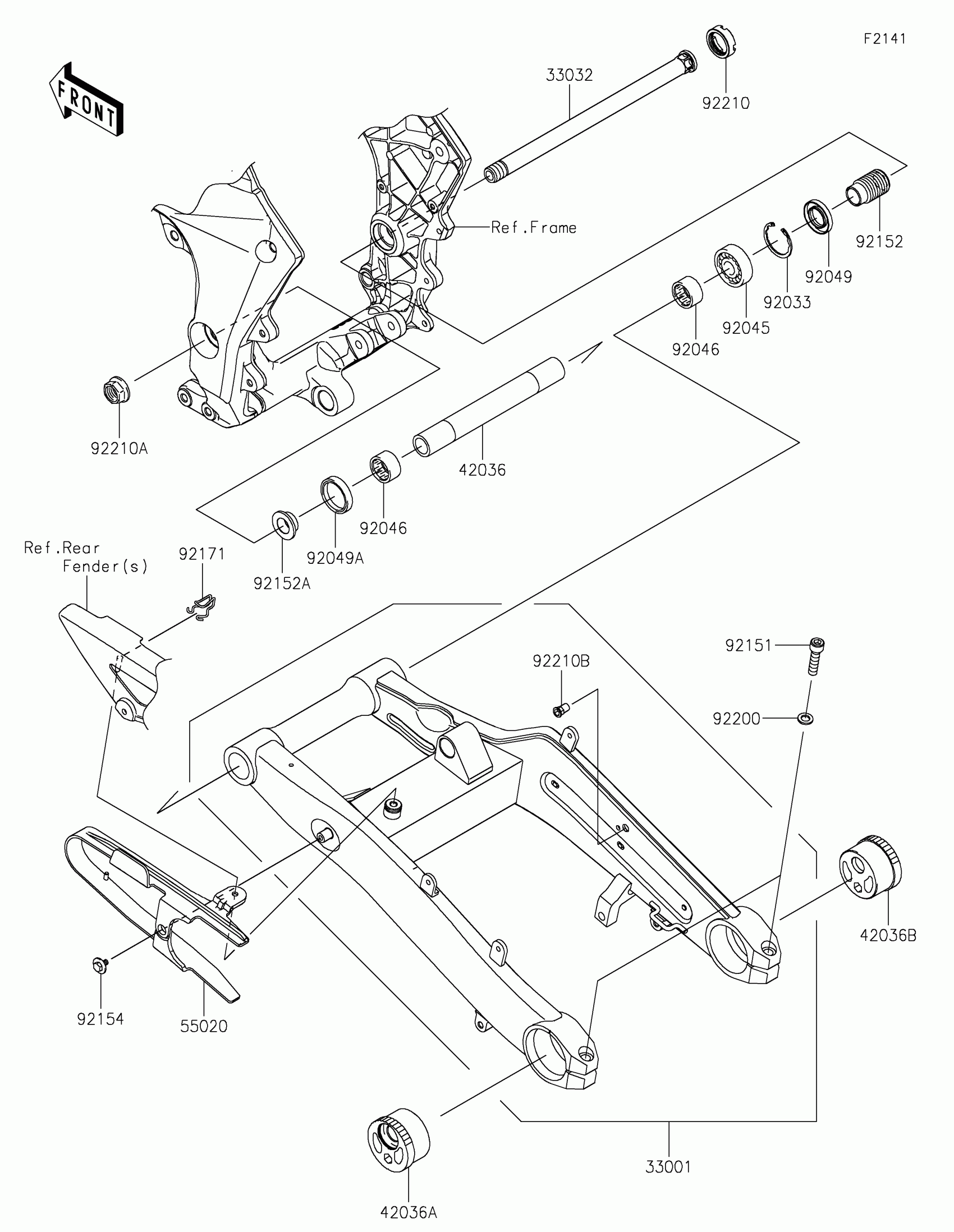

Kawasaki NINJA® 1000SX Swingarm Diagram
