1987 Kawasaki Ninja® 1000R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

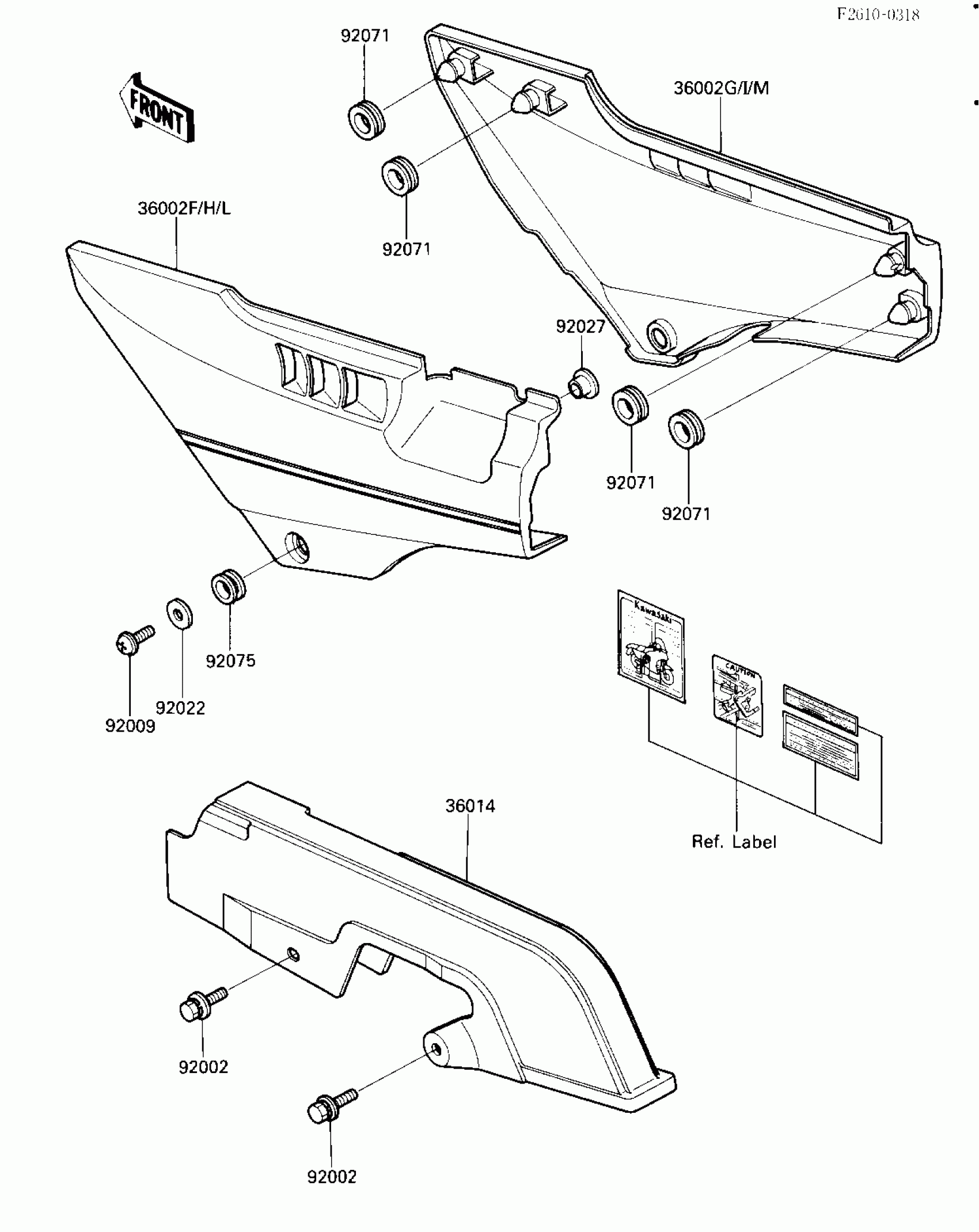

1987 Kawasaki Ninja® 1000R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36002H

COVER-SIDE,LH,EBONY/P

36002-5159-T4

1
Out of stock

36002H

COVER-SIDE,RH,EBONY/P

36002-5160-T4

1
Out of stock

36002L

COVER-SIDE,LH,WHITE/GOLD (Cana

36002-5343-W5

1
Out of stock

36002M

COVER-SIDE,RH,WHITE/GOLD (Cana

36002-5344-W5

1
Out of stock

36014

CASE-CHAIN

36014-1125

1
Out of stock

92002

BOLT,6X16

92002-1136

1
Out of stock

92009

SCREW,6X18

92009-1111

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1619

1
Out of stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock
