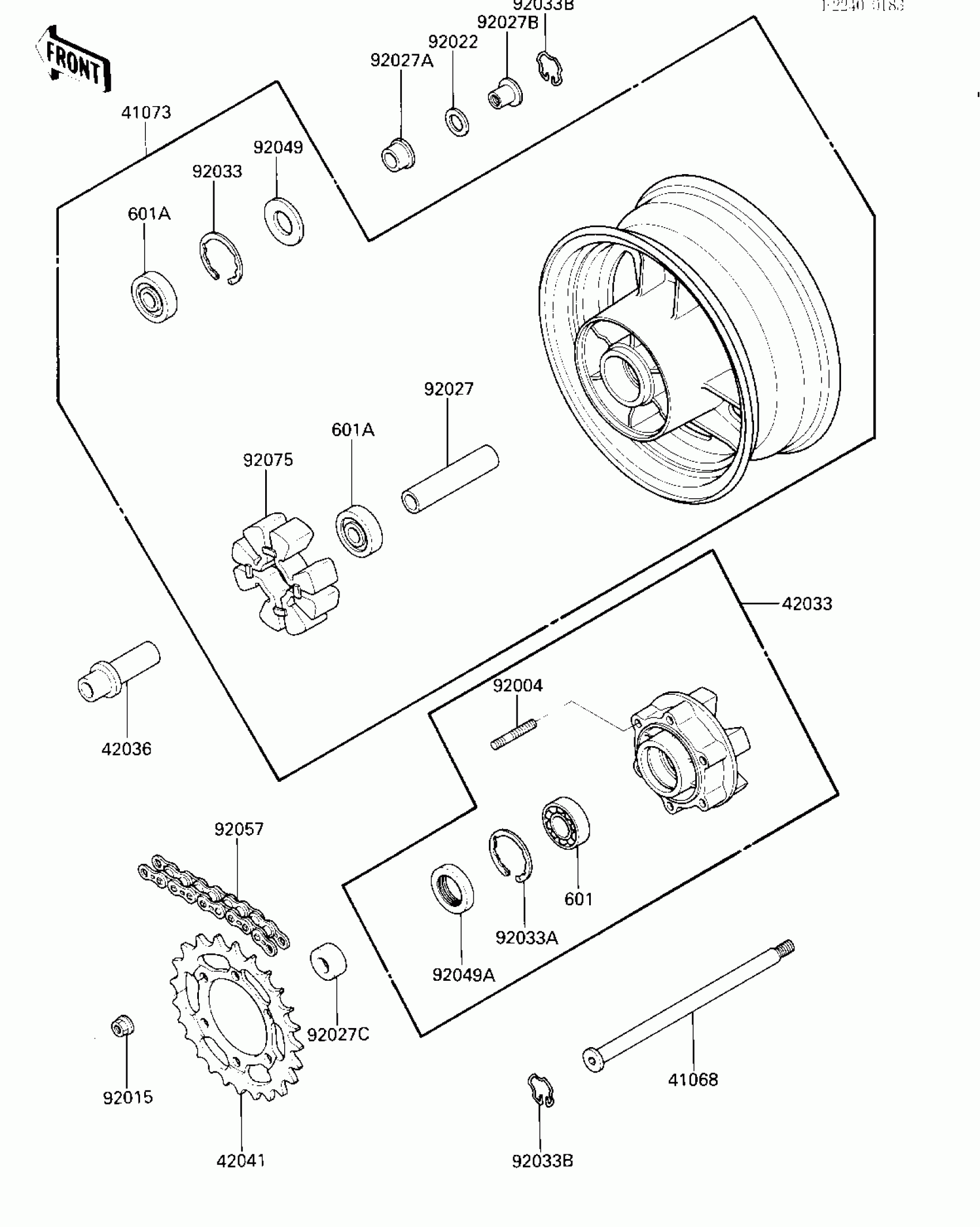

Kawasaki Ninja® 1000R REAR WHEEL/HUB/CHAIN Diagram

Description

Price

41068

AXLE,RR

41068-1194

Unavailable

41073

WHEEL-ASSY,RR,BLACK

41073-1312-R2

$713.44

42033

COUPLING-ASSY,RR HUB

42033-1117

$259.82

42036

SLEEVE,RR HUB,L=53

42036-1150

$41.42

42041

SPROCKET-HUB,41T

42041-1200

$133.50

92004

STUD,12X27

92004-1155

$10.14

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,23X32X2.3

92022-1618

$5.42

92027

COLLAR,20.2X28X96

92027-1660

$18.29

92027A

COLLAR,RR AXLE,L=20

92027-1792

$34.31

92027B

COLLAR,RR AXLE,L=28

92027-1810

$32.61

92027C

COLLAR,RR AXLE,L=20.5

92027-1884

$34.31

92033

RING-SNAP,52MM

92033-1043

$6.15

92033A

RING-SNAP,62MM

92033-1044

$8.59

92033B

RING-SNAP,RR AXLE

92033-1156

$3.41

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92049A

SEAL-OIL,AJN40627

92050-027

$16.96

92057

DR,CHAIN EK632UVD0 94

92057-1213

$744.86

92075

DAMPER,SHOCK,RR HUB

92075-1593

$100.40

601

BALL BEARING,#6206

601B6206

$17.84

601A

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable
