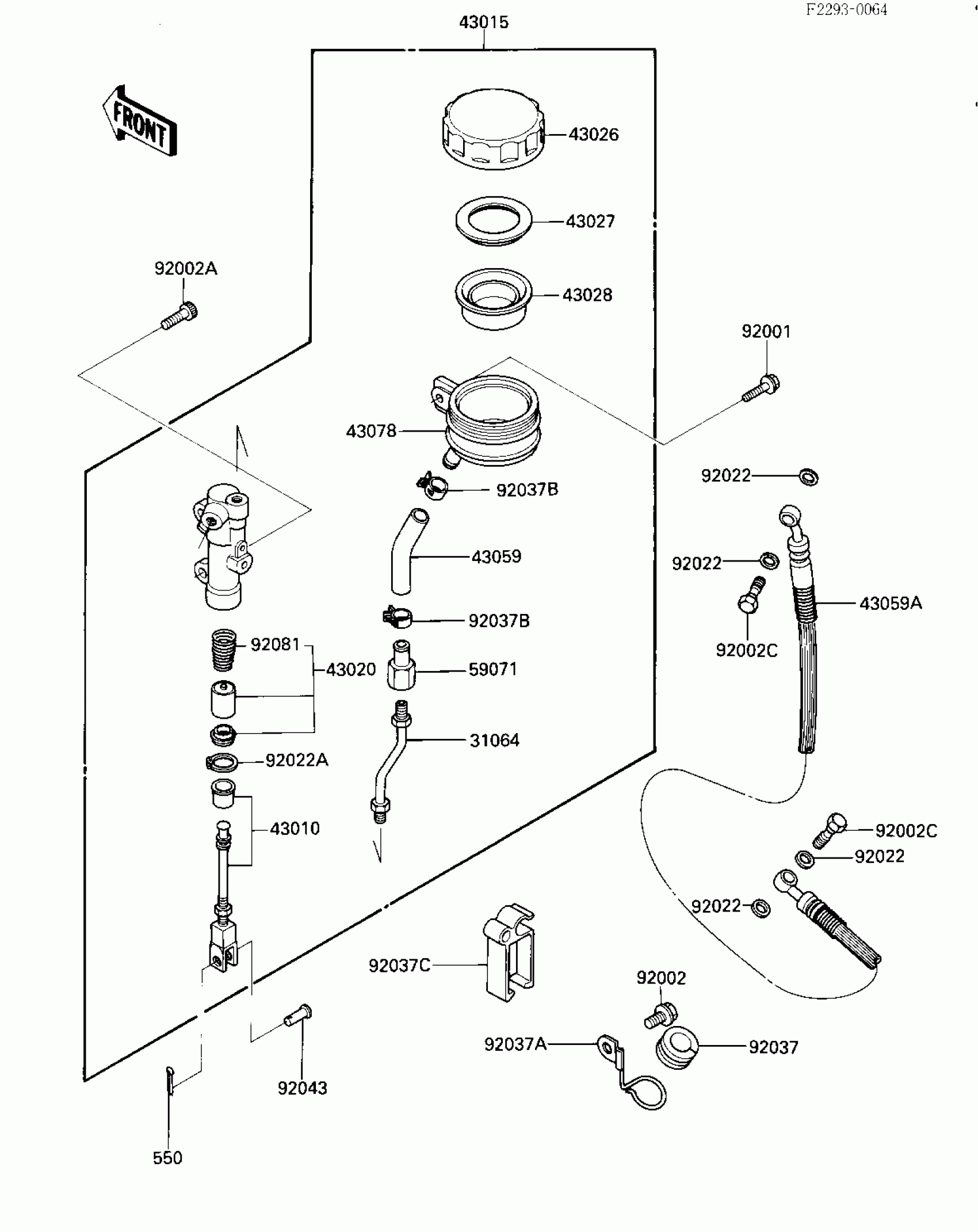

Kawasaki Ninja® 1000R REAR MASTER CYLINDER Diagram

Description

Price

31064

PIPE-COMP,RR MASTER C

31064-1071

$17.17

43010

ROD-ASSY-BRAKE

43010-1056

$70.49

43015

CYLINDER-ASSY-MASTER,

43015-1290

$373.02

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1318

$32.05

43059A

HOSE-BRAKE,RR

43059-1334

Unavailable

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.87

59071

JOINT

59071-1102

$16.07

92001

BOLT,6X20

92001-1460

$2.99

92002

BOLT,FLANGED,10X10

92002-1311

$5.59

92002A

BOLT,SOCKET,8X30

92002-1558

$2.49

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92037

GROMMET,HOSE CLAMP

43064-007

$4.18

92037A

CLAMP

92037-1540

$16.71

92037B

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037C

CLAMP,BRAKE HOSE

92037-1770

$10.02

92043

PIN,8MM

92043-1303

$2.98

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

550

PIN COTTER 2.0X15

550D2015

Unavailable
