1987 Kawasaki Ninja® 1000R Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

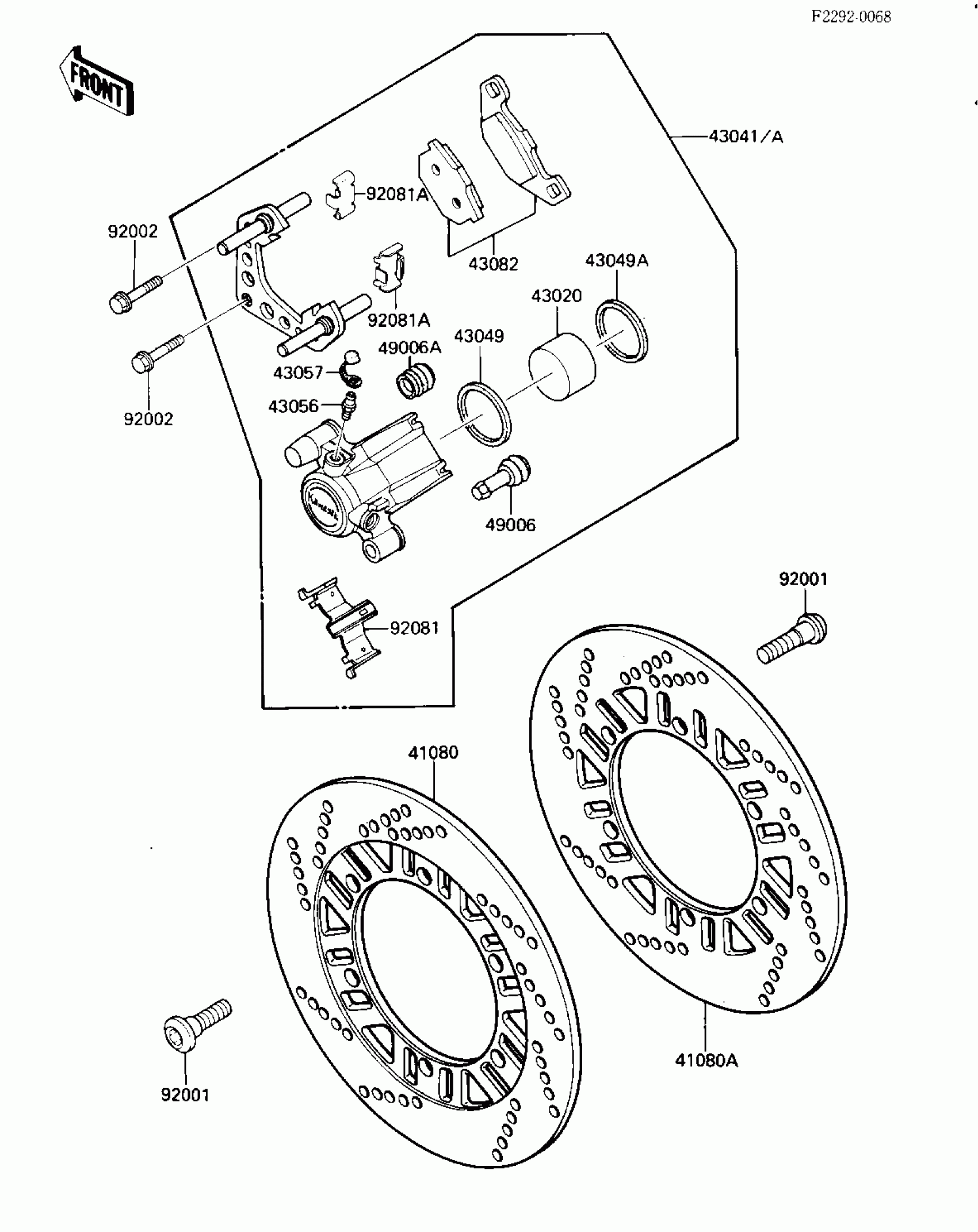

1987 Kawasaki Ninja® 1000R Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,LH

41080-1154

1
Out of stock

41080A

DISC,FR,RH

41080-1155

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1066

1

$95.25

In stock

43041

CALIPER-ASSY,FR,LH

43041-1194

1

$472.44

In stock

43041A

CALIPER-ASSY,FR,RH

43041-1471

1

$405.14

In stock

43049

1

$11.01

In stock

43049A

PACKING,PISTON

43049-1028

1

$10.02

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1061

1

$53.01

In stock

49006

BOOT,CALIPER

49006-1094

1

$9.69

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92001

1

$3.72

In stock

92002

BOLT,FLANGED,10X41

92002-1468

1

$7.04

In stock

92081

SPRING,PAD

92081-1525

1

$15.31

In stock

92081A

SPRING,PAD STOPPER

92081-1661

1

$9.60

In stock
