1987 Kawasaki Ninja® 1000R Front Master Cylinder Diagram

← All diagrams

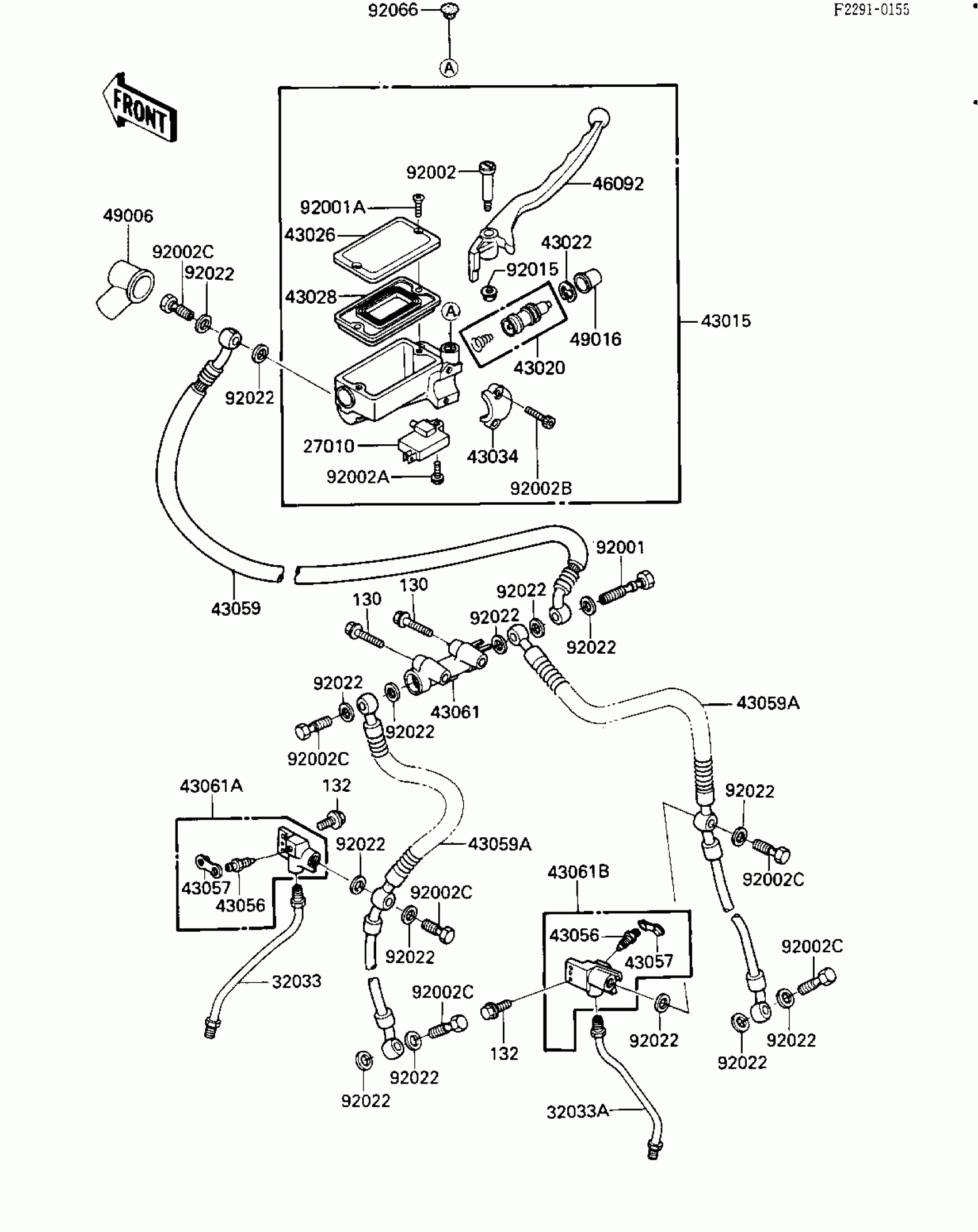

Find the part on the Front Master Cylinder diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

32033

PIPE,BRAKE,FR,LH

32033-1635

1
Out of stock

32033A

PIPE,BRAKE,FR,RH

32033-1636

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1301

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1054

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

1
Out of stock

43056

BREATHER-BRAKE

43056-1051

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43059

HOSE-BRAKE,FR

43059-1300

1
Out of stock

43059A

HOSE-BRAKE,FR

43059-1301

1
Out of stock

43061

JOINT-BRAKE

43061-1004

1
Out of stock

43061A

JOINT-BRAKE,FORK.LH

43061-1057

1
Out of stock

43061B

JOINT-BRAKE,FORK,RH

43061-1058

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1117

1
Out of stock

49006

BOOT,DUST

49006-1041

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001A

SCREW,5MM,BLACK

92001-1727

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

130

BOLT-FLANGED,6X60

130G0660

1
Out of stock

132

BOLT-FLANGED-SMALL

132H0616

1
Out of stock
