1987 Kawasaki Ninja® 1000R Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

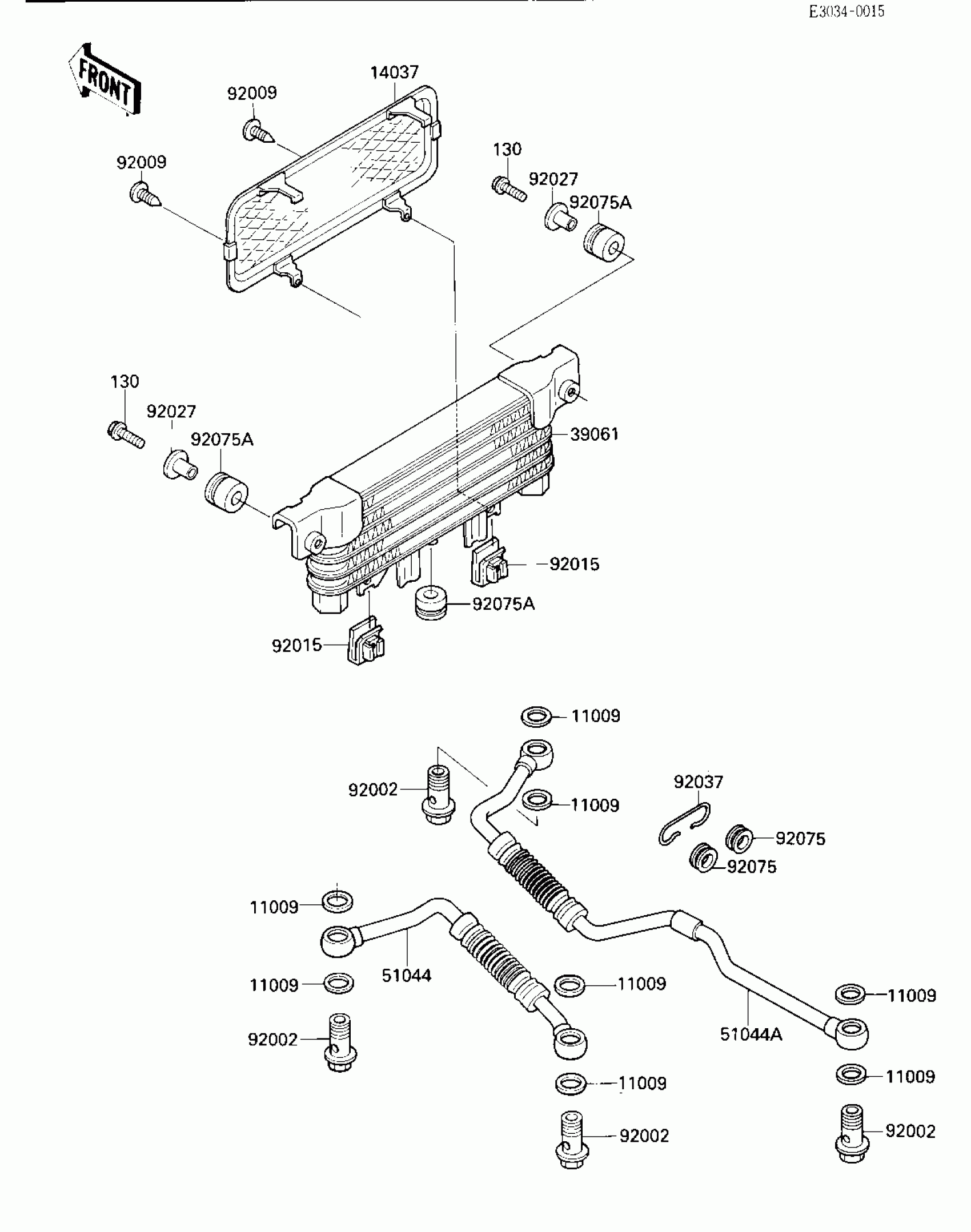

1987 Kawasaki Ninja® 1000R Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

14037

SCREEN,OIL COOLER

14037-1073

1
Out of stock

39061

OIL COOLER

39061-1108

1
Out of stock

51044

TUBE-ASSY,OIL COOLER,LH

51044-1068

1
Out of stock

51044A

TUBE-ASSY,OIL COOLER,RH

51044-1086

1
Out of stock

92002

BOLT,14X28.5

92001-1930

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92015

NUT,6MM

92015-1582

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92037

CLAMP,OIL COOLER

92037-1905

1
Out of stock

92075

DAMPER,OIL COOLER

92075-1942

1
Out of stock

92075A

DAMPER

92075-277

1
Out of stock

130

BOLT-FLANGED

130J0620

1
Out of stock
