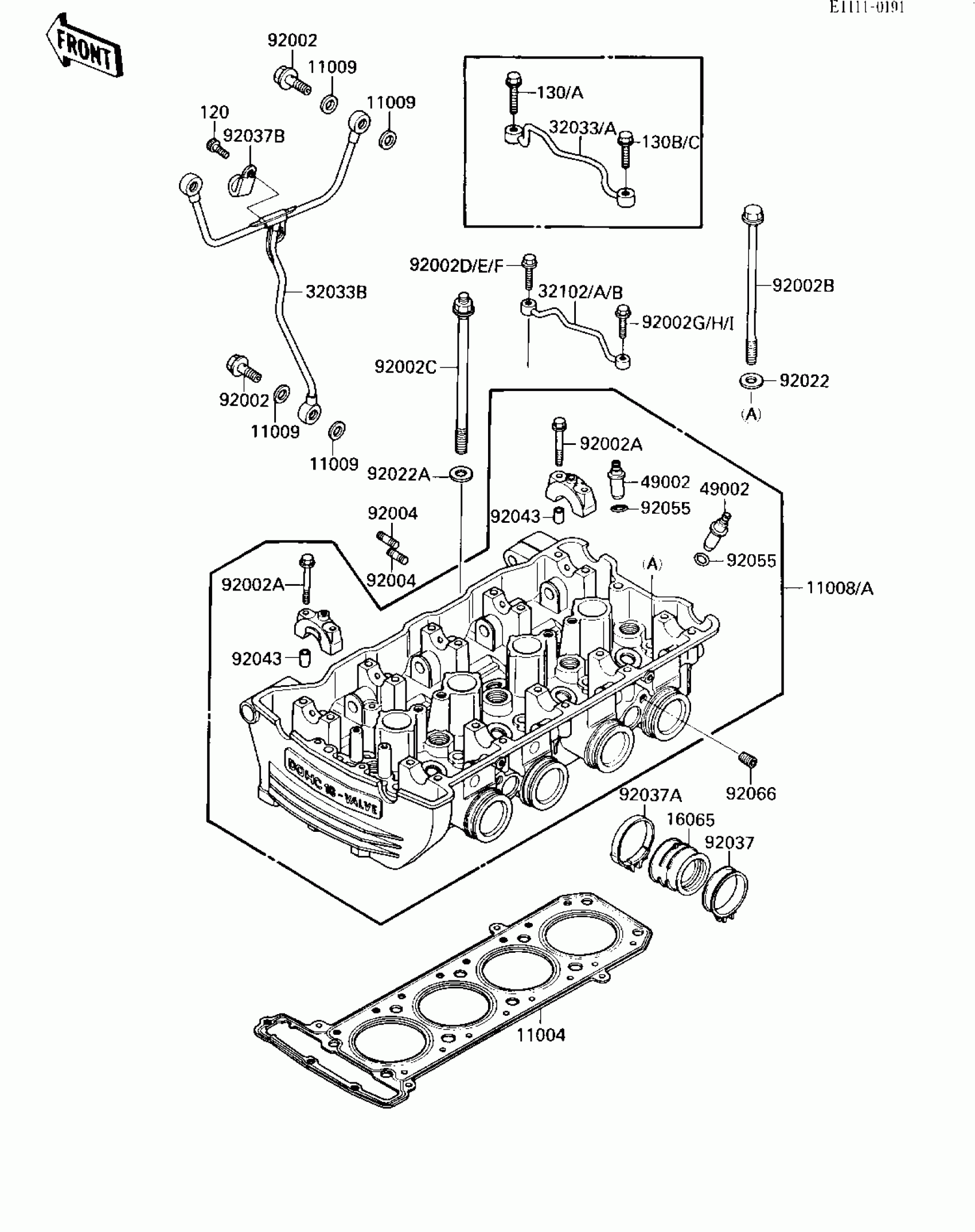

Find the part on the Cylinder Head diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1148

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1147

1
Out of stock

11008A

HEAD-COMP-CYLINDER (Canada)

11008-1148

1
Out of stock

11009

GASKET,12.5X18X1.5

11009-1376

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1130

1
Out of stock

32033B

PIPE,OIL PAN-HEAD

32033-1850

1
Out of stock

32102

PIPE,CYLINDER HEAD

32102-1423

1
Out of stock

49002

GUIDE-VALVE

49002-1052

1
Out of stock

92002

BOLT,BANJO,12X23

92001-1871

1
Out of stock

92002A

BOLT,6X46

92001-1872

1
Out of stock

92002B

BOLT,10X164

92002-1943

1
Out of stock

92002C

BOLT,11X164

92002-1486

1
Out of stock

92002D

BOLT,6X31.6

92002-1911

1
Out of stock

92002G

BOLT,6X26.6

92002-1912

1
Out of stock

92004

STUD,8X28

92004-1110

1
Out of stock

92022

WASHER,10.5X20X1.6

92022-1591

1
Out of stock

92022A

WASHER,11.5X20.5X1.6

92022-1720

1
Out of stock

92037

CLAMP,ID=53,BLACK

92037-1304

1
Out of stock

92037A

CLAMP

92037-1523

1
Out of stock

92037B

CLAMP,L=45

92037-1539

1
Out of stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92055

RING-O,11.7MM

92055-1265

1
Out of stock

92066

PLUG,PT1/8X7

92066-1201

1
Out of stock

120

BOLT-SOCKET,6X10

120S0610

1
Out of stock
