1987 Kawasaki Ninja® 1000R Mufflers Diagram

← All diagrams

Find the part on the Mufflers diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

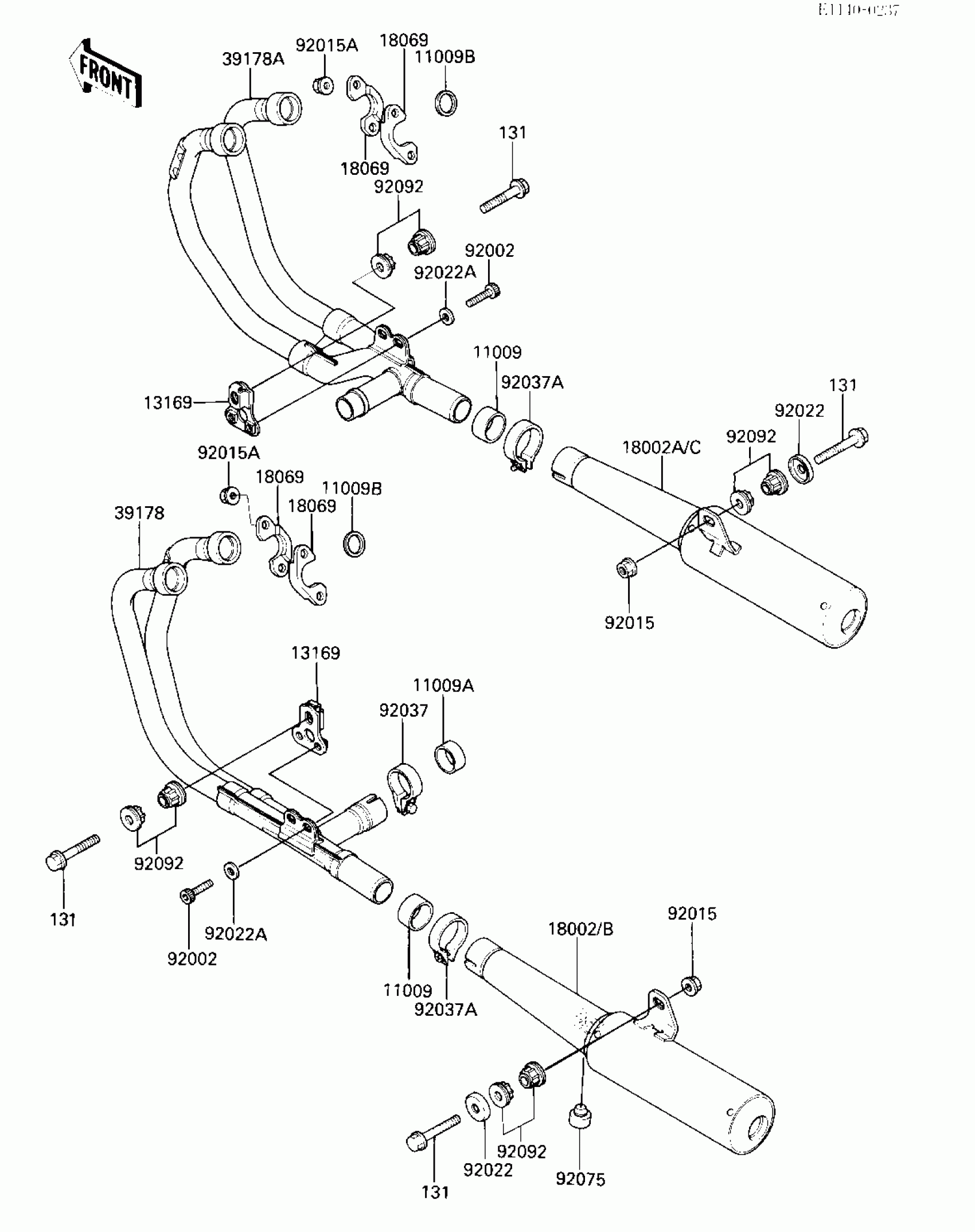

1987 Kawasaki Ninja® 1000R Mufflers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,MUFFLER

11009-1348

1
Out of stock

11009A

1

$34.75

In stock

11009B

1

$6.49

In stock

13169

PLATE,EXHAUST MANIFOL

13169-1911

1
Out of stock

18002

1

$662.49

In stock

18002B

1

$572.00

In stock

18002C

1

$595.74

In stock

18069

HOLDER-EXHAUST PIPE

18069-1054

1
Out of stock

39178

1

$469.43

In stock

39178A

1

$469.43

In stock

92002

BOLT

92002-1371

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92015A

NUT,LOCK,8MM

92015-1380

1

$3.46

In stock

92022

1

$5.42

In stock

92022A

WASHER

92022-1594

1
Out of stock

92037

CLAMP,MUFFLER,BLACK

92037-1270

1

$19.49

In stock

92037A

CLAMP,POWER CHAMBER

92037-1537

1

$19.14

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$13.70

In stock

131

BOLT-FLANGED,10X55,BLACK

131J1055

1
Out of stock
