2013 Kawasaki Ninja® 1000 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

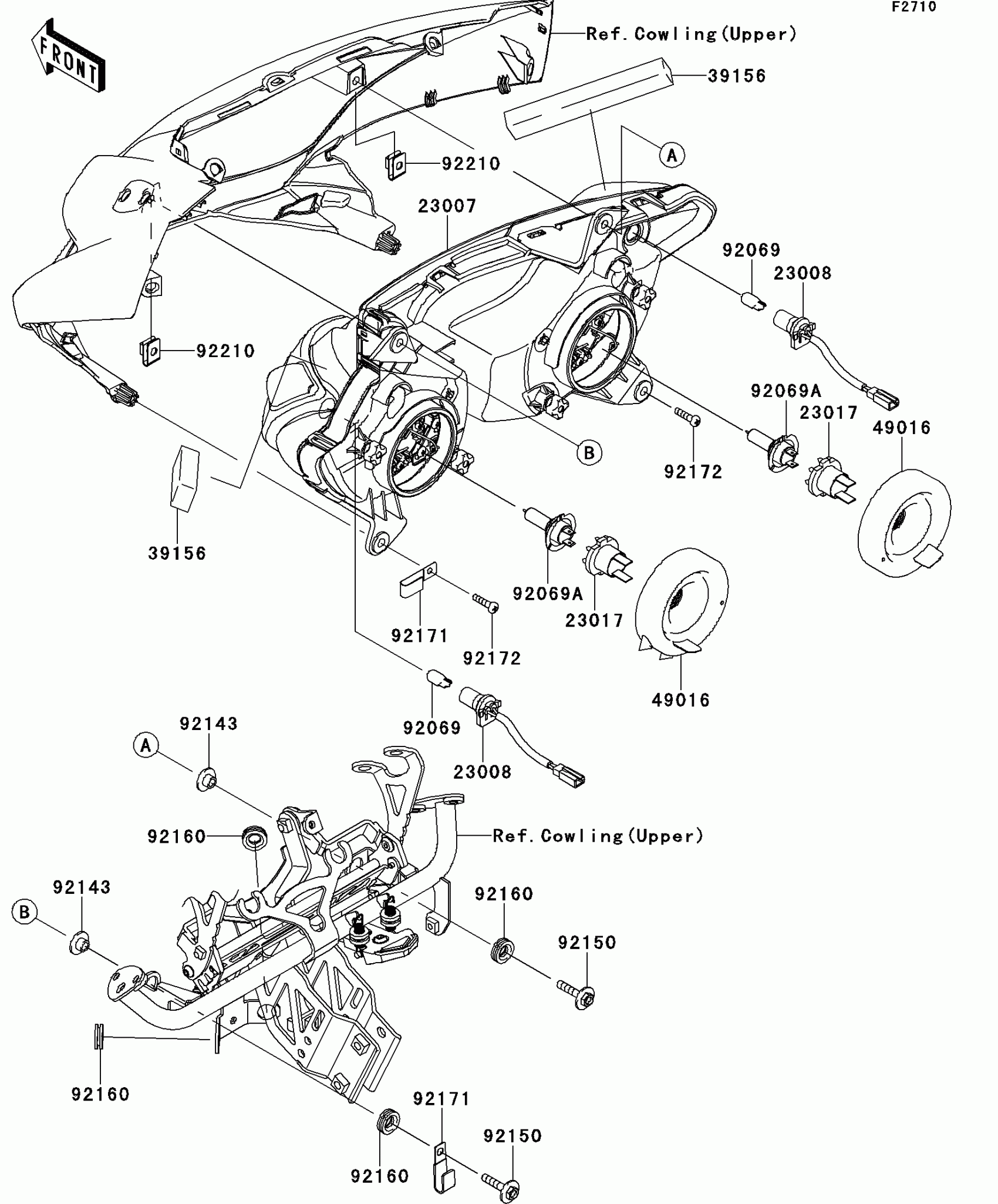

2013 Kawasaki Ninja® 1000 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007

LENS-COMP,HEAD LAMP

23007-0144

1

$327.52

In stock

23008

1

$84.65

In stock

23017

SOCKET,HEAD LAMP

23017-1067

1

$92.23

In stock

39156

PAD,20X140X15

39156-0736

1

$10.12

In stock

49016

1

$17.54

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92069A

BULB,12V 55W,H7

92069-1126

1
Out of stock

92143

COLLAR,L=7.4

92143-1019

1

$3.75

In stock

92150

BOLT,6X30

92150-1694

1

$3.85

In stock

92160

DAMPER

92160-1278

1

$3.49

In stock

92171

CLAMP

92171-0305

1

$7.12

In stock

92172

SCREW

92172-1072

1

$2.00

In stock

92210

NUT

92210-0130

1
Out of stock
