2013 Kawasaki Ninja® 1000 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

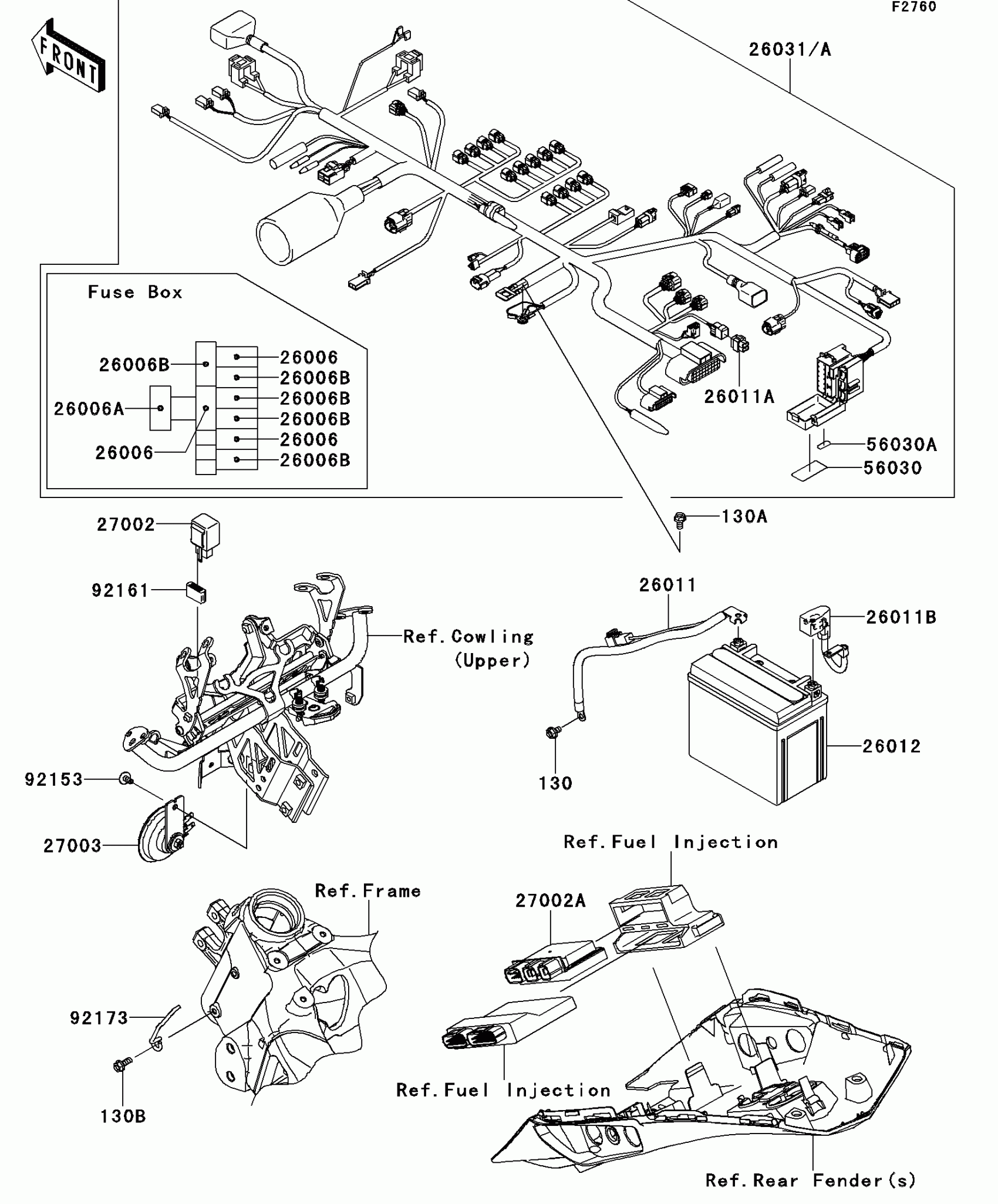

2013 Kawasaki Ninja® 1000 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26006

1

$5.34

In stock

26006A

1

$5.71

In stock

26006B

1

$3.50

In stock

26011

1

$41.31

In stock

26011A

WIRE-LEAD,CAP

26011-0271

1

$13.98

In stock

26011B

1

$44.68

In stock

26012

1

$145.53

In stock

26031A

HARNESS,MAIN

26031-1480

1
Out of stock

27002

1

$55.88

In stock

27002A

RELAY-ASSY

27002-0007

1
Out of stock

27003

HORN

27003-0075

1

$73.92

In stock

56030

LABEL,FUSE BOX

56030-0361

1

$4.10

In stock

56030A

LABEL,FUSE BOX,2A

56030-0425

1

$4.03

In stock

92153

BOLT,SOCKET,6X12

92153-1948

1

$1.53

In stock

92161

DAMPER,SIGNAL RELAY

92161-0283

1

$2.42

In stock

92173

CLAMP

92173-0182

1

$7.46

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130B

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
