2013 Kawasaki Ninja® 1000 Generator Diagram

← All diagrams

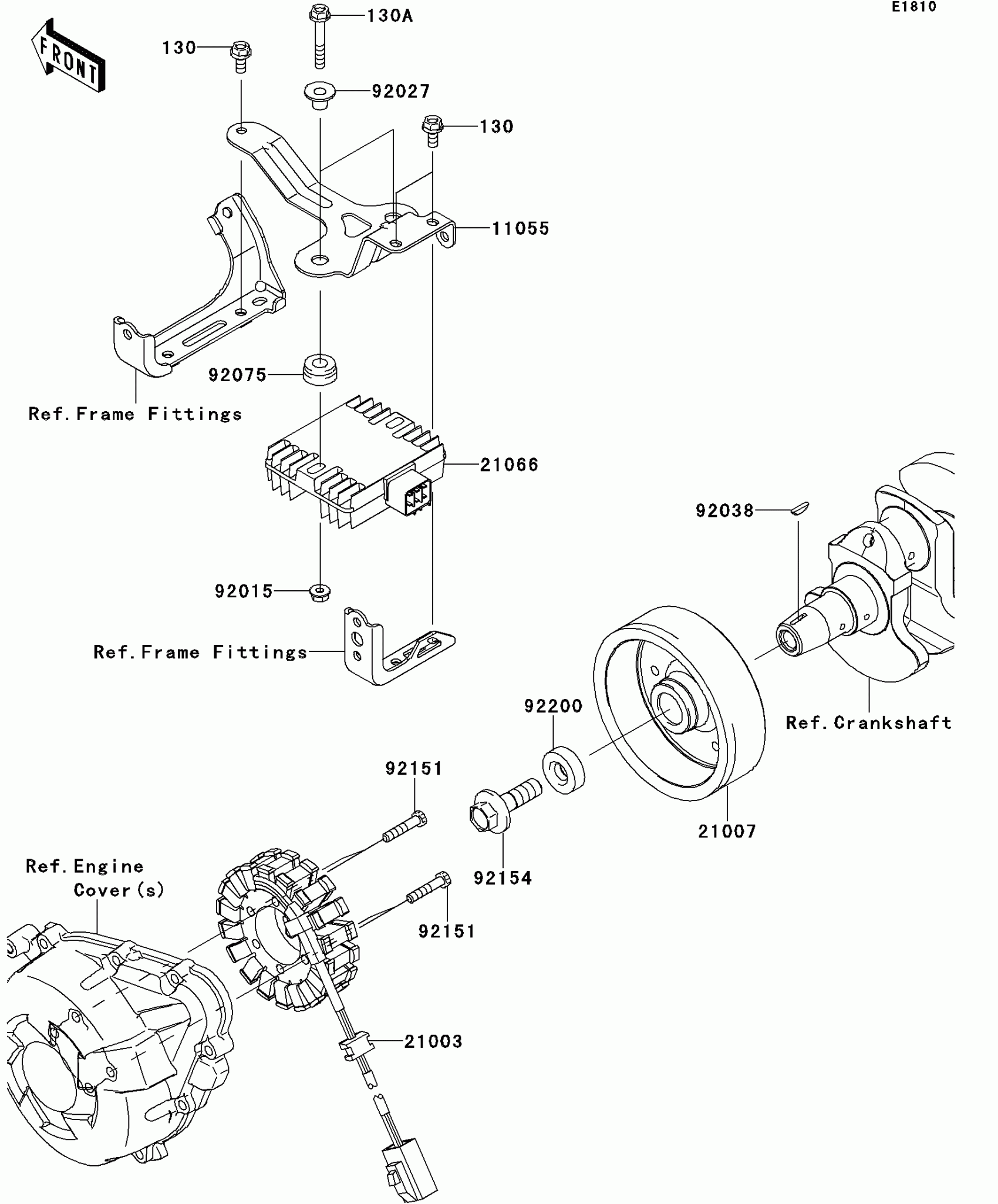

Find the part on the Generator diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REGULATOR

11055-1788

1

$24.76

In stock

21003

STATOR

21003-0096

1
Out of stock

21007

ROTOR

21007-0135

1

$612.57

In stock

21066

REGULATOR-VOLTAGE

21066-0705

1

$162.47

In stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92027

1

$4.37

In stock

92038

KEY

92038-1060

1

$7.63

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92151

BOLT,6X30

92151-1626

1

$2.25

In stock

92154

BOLT,FLANGED,12X40

92154-0347

1

$12.12

In stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock
