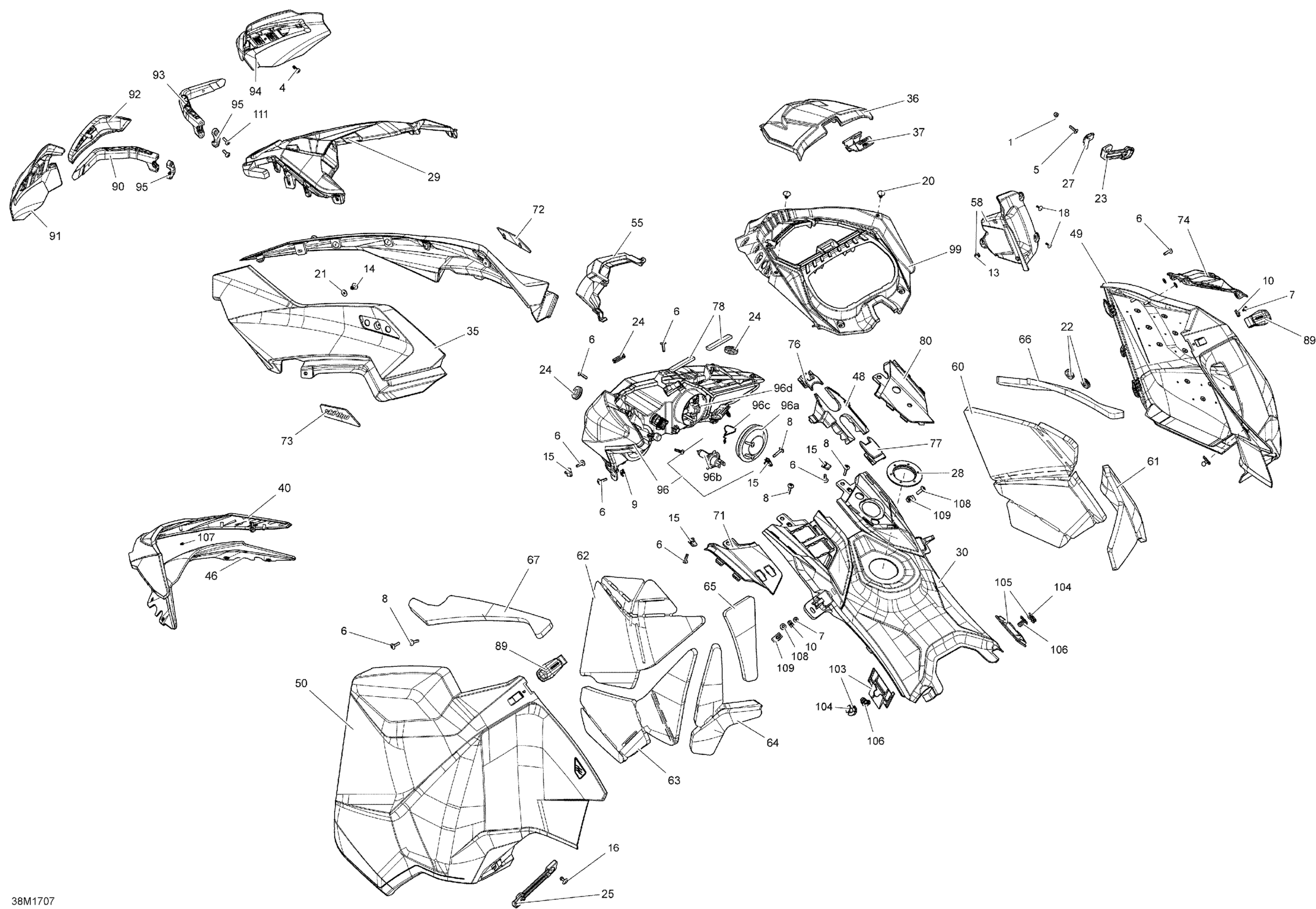

Ski-Doo MXZ 600 RS, 2017 Hood Diagram

#

Description
Price

1

Flange Elastic Nut M5

233251434

$2.00

4

Torx Screw Truss Head K50X20 T20

250000760

$2.11

5

Torx Screw M5 X 20

250000792

$2.11

6

Torx Screw M5 X 20

250000528

$2.11

7

Hexalob Screw M4 X 10

250000565

$2.11

8

Torx Screw M5 X 26

250000587

$4.44

9

Jack Nut M5

250100035

$6.99

10

Weld Nut M4

250100156

$4.34

13

Black, Cap

275500241

$3.49

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

Panel Nut M5 X 0.8

250000958

$4.23

16

Pop Rivet 3/16”

293150108

$1.19

18

Pop Rivet 5/32"

293150170

$3.19

20

Black, Dart

414644300

$0.98

21

Washer

517124300

$0.19

22

Grommet

517302841

$7.89

23

RH Panel Latch

517303612

$9.99

24

Grommet

517303756

$4.09

25

LH Panel Latch

517303808

$11.49

27

Latch Support

517304221

$9.19

28

Console Nut

517304518

$15.29

29

Catalyst Grey - Center Hood | Model Silver

517305368

$209.99

30

Yellow Sunburst, Rear Console | Package X

517306133

$209.99

35

HYPER SILVER - RH HOOD - Call your local BRP dealership | Model Silver

517305880

Unavailable

35

HYPER SILVER - LH HOOD - Call your local BRP dealership | Model Silver

517305879

$189.99

36

Deep Black, Upper Storage Access Cover

517304912

$18.49

37

Cover Latch

517304917

$12.99

40

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$25.49

48

Deep Black, Console Support

517304970

$14.49

49

Deep Black - RH Panel | Manual Start

517305508

$309.99

50

Deep Black LH Panel

517305510

$199.99

55

YELLOW HEADLIGHT TRIM CAP - Call your local BRP dealership

517305936

Unavailable

58

Deep Black RH Console | Package XRS

517305060

$35.99

60

RH Upper Panel Foam

517305082

$39.99

61

RH Rear Panel Foam

517305085

$19.99

62

LH Upper Panel Foam

517305086

$21.99

63

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

$24.99

64

LH Lower Panel Foam

517305088

$21.99

65

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

$13.49

66

RH Rear Hood Foam

517305090

$16.49

67

LH Rear Hood Foam

517305091

$16.49

71

Deep Black, LH Front Console

517305128

$31.99

72

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$16.49

73

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

$16.49

74

RH Panel Vent Grid Deep Black

517305140

$31.99

76

Deep Black, Support Console Cap

517305147

$4.99

77

Deep Black, Support Console Cap

517305148

$4.99

78

Seal Joint

517305157

$2.39

80

DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership

517305183

Unavailable

89

Panel Latch

517305279

$18.99

90

Deep Black, LH Arm

517305290

$24.99

91

LH Deflector, Smoked 60%

517305291

$24.99

92

Sunburst Yellow, LH Cap, SKI-DOO

517305589

$38.99

92

Sunburst Yellow, RH Cap, SKI-DOO

517305588

$38.99

93

Deep Black, RH Arm

517305293

$24.99

94

RH Deflector, Smoked 60%

517305294

$23.99

95

Clamp

517305296

$4.76

96

Headlamp

517306180

$249.99

96a

Cap

219400070

$18.49

96b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

96c

Holder Bracket

219800282

$5.89

96d

Spring

219800281

$3.49

99

Deep Black, Indicator Support

517305512

$59.99

103

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

104

Ring

517305723

$3.49

105

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

106

Pin

517305734

$3.49

107

Push Nut

250100158

$2.11

108

Torx Truss Screw M6 X 20

250000705

$2.11

109

Panel Nut M6 X 1.0

250100198

$2.11

111

Torx Screw M5 X 20

250000724

$1.69
