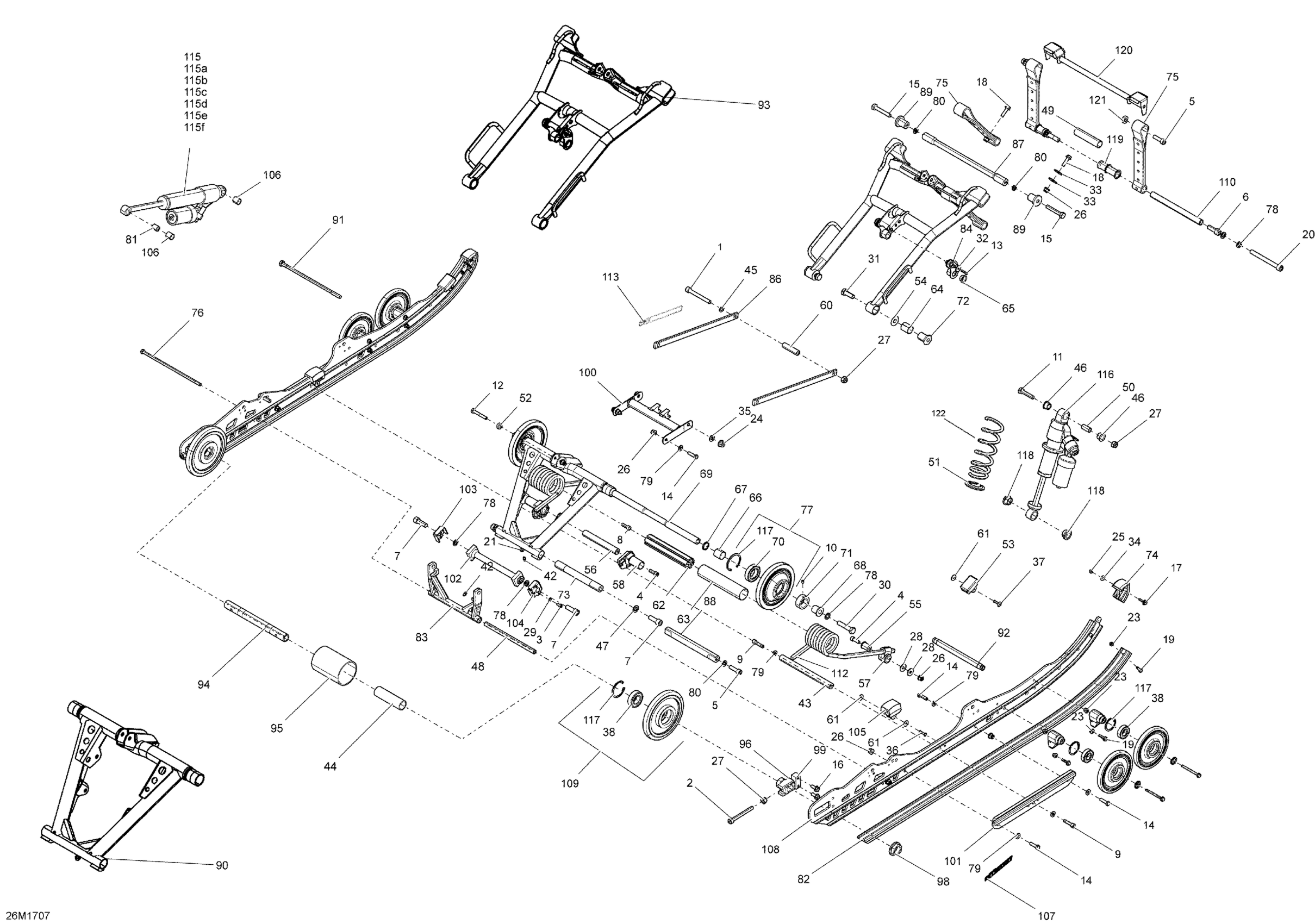

Ski-Doo MXZ 600 RS, 2017 Rear Suspension Diagram

#

Description
Price

1

Socket Screw M10 X 90

205009044

$7.23

2

Socket Head Screw

205009087

$10.52

3

Socket Head Screw M6 X 12

205061260

$1.26

4

Socket Screw M8 X 25

205082554

$1.74

5

Socket Head Screw M10 X 35

205503554

$6.18

6

Socket Head Screw M12 X 35

205523554

$4.28

7

Socket Head Screw Scotch Grip Din.912

205523587

$2.06

8

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.56

9

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

10

Socket Set Screw M6 X 8

206260844

$1.25

11

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

12

Hex. Screw M8 X 55

207085586

$6.11

13

Hex. Screw M5 X 20

207152044

$0.88

14

Hex. Cap Screw M8 X 30

207183054

$3.61

15

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

16

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

17

Hex. Flange Screw M5 X 25

207652544

$0.42

18

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

19

Phillips Screw M6 X 25

208562531

$1.74

20

SOCKET HEAD SCREW M12 X 120 - Call your local BRP dealership

231022087

Unavailable

21

Hexagonal Nut M6

232061404

$0.32

23

Elastic Stop Nut M6

232561414

$1.55

24

Flange Elastic Nut M10

233201466

$2.63

25

Flange Elastic Nut M5

233251434

$1.66

26

Elastic Flange Nut M8

233281466

$0.83

28

Flat Washer 8 mm

234082410

$1.11

29

Lock Washer M6, Black

234161471

$0.52

30

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.52

31

Hex. Cap Screw M12 X 35

250000537

$2.63

32

Washer

250200016

$0.72

33

Flat Washer 8 mm

250200128

$1.74

34

Washer

250200140

$0.83

35

Flat Washer

250200143

$2.63

36

Pop Rivet 3/16"

293150013

$1.11

37

Pop Rivet 3/16

293150224

$0.98

38

Ball Bearing

293350115

$11.15

42

Grease Fitting

408200700

$2.80

43

Axle

503151600

$15.35

44

Center Spacer

503156000

$8.92

45

Washer

503175800

$3.26

46

Urethane Bushing

503189117

$6.88

47

Washer | 7415/7416. 7417/7418.

503189148

$2.72

48

Pivot Arm Axle

503189156

$20.74

49

Spacer

503189265

$4.75

50

Bushing | Includes 240d to 240d1

503189282

$4.18

51

Spring Stopper

503190271

$20.74

52

Spacer

503190526

$8.72

53

Rubber Stopper

503190576

$10.23

54

Washer

503190656

$2.91

55

Spring Support Kit

861805547

$8.14

56

Spring Cam Axe

503191178

$27.66

57

Spring Support Kit

861805547

$8.14

58

LH Spring Cam

503191191

$13.88

58

RH Spring Cam

503191190

$13.78

60

Bar Axle

503191192

$40.74

61

Washer

503191273

$1.06

62

Spring Axle

503191344

$34.58

63

Plastic Bushing

503191345

$6.89

64

Bushing

503191554

$5.88

65

Swivel Bushing

503191555

$5.71

66

Bushing

503191773

$13.60

67

Washer

503191774

$2.25

68

Bushing

503191775

$15.26

69

Upper Shaft

503191776

$46.12

70

Ball Bearing

503191778

$11.46

71

Retaining Ring

503191782

$13.95

72

Lower Axle

503191966

$15.35

73

Lower Shaft

503192095

$46.12

74

Runner Protector

503192299

$23.82

75

Stopper Strap

503192360

$19.97

76

Bolt M8 X 248mm

503192440

$29.97

77

BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership

503192483

Unavailable

78

Washer

503192491

$4.38

81

Axle Shock Absorber

503196509

$11.98

82

Black Slider, 154"

503192618

$33.05

83

Pivot Arm

503192701

$274.58

84

LH ROCKER ARM - Call your local BRP dealership

503192706

Unavailable

84

RH ROCKER ARM - Call your local BRP dealership

503192707

Unavailable

86

ROD_LINK - Call your local BRP dealership

503192712

Unavailable

87

Slide Bushing

503192713

$93.82

88

Limit Axle

503192715

$78.43

89

Bushing

503192721

$34.58

90

Rear Arm

503193126

$332.28

91

Bolt M10 X 251MM

503193227

$16.12

92

Pivot Axle

503193435

$38.43

93

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 2000 to 2000,006

503195009

Unavailable

94

Rear Axle

503193692

$129.20

95

Bushing

503193693

$14.80

96

Spacer

503193694

$36.12

98

Nut

503193695

$26.89

98

Nut

503193696

$25.35

99

Tensioner

503193697

$38.43

100

Reinforcement

503194129

$104.58

101

Rail Reinforcement

503194175

$104.58

102

Cam Axle

503194161

$233.82

103

Plate

503194162

$27.66

104

Plate

503194163

$27.66

105

Stopper Rubber

503194164

$12.65

106

Leg Cushion

505072663

$7.40

107

Runner Decal

516004755

$9.11

108

RAIL_SUSPENSION ECOAT - Call your local BRP dealership

503194424

Unavailable

109

Wheel 165" | Includes 670 to 670b

503194127

$49.97

110

AXLE - Call your local BRP dealership

503194431

Unavailable

112

LH Spring

503194179

$59.97

112

RH Spring

503194180

$59.97

113

Shock Position Decal

516005609

$16.89

115

Rear Shock | Includes 5500 to 5500,006

503194348

$877.49

115a

O-Ring

415093807

$34.58

115b

Piston Ring | Not Shown

415093806

$14.97

115c

Air Valve

505070398

$17.66

115d

Screw | Not Shown

505070399

$4.00

115e

O-Ring

505070400

$4.38

115f

O-Ring

415093804

$4.38

116

Center Shock

503194347

Unavailable

117

Retaining Ring

415129598

$8.92

118

Bushing

503189271

$10.46

119

AXLE - Call your local BRP dealership

503194432

Unavailable

120

AXLE - Call your local BRP dealership

503194427

Unavailable

121

TROUCATED WASHER - Call your local BRP dealership

503194430

Unavailable

122

SPRING - Call your local BRP dealership

503194450

Unavailable
