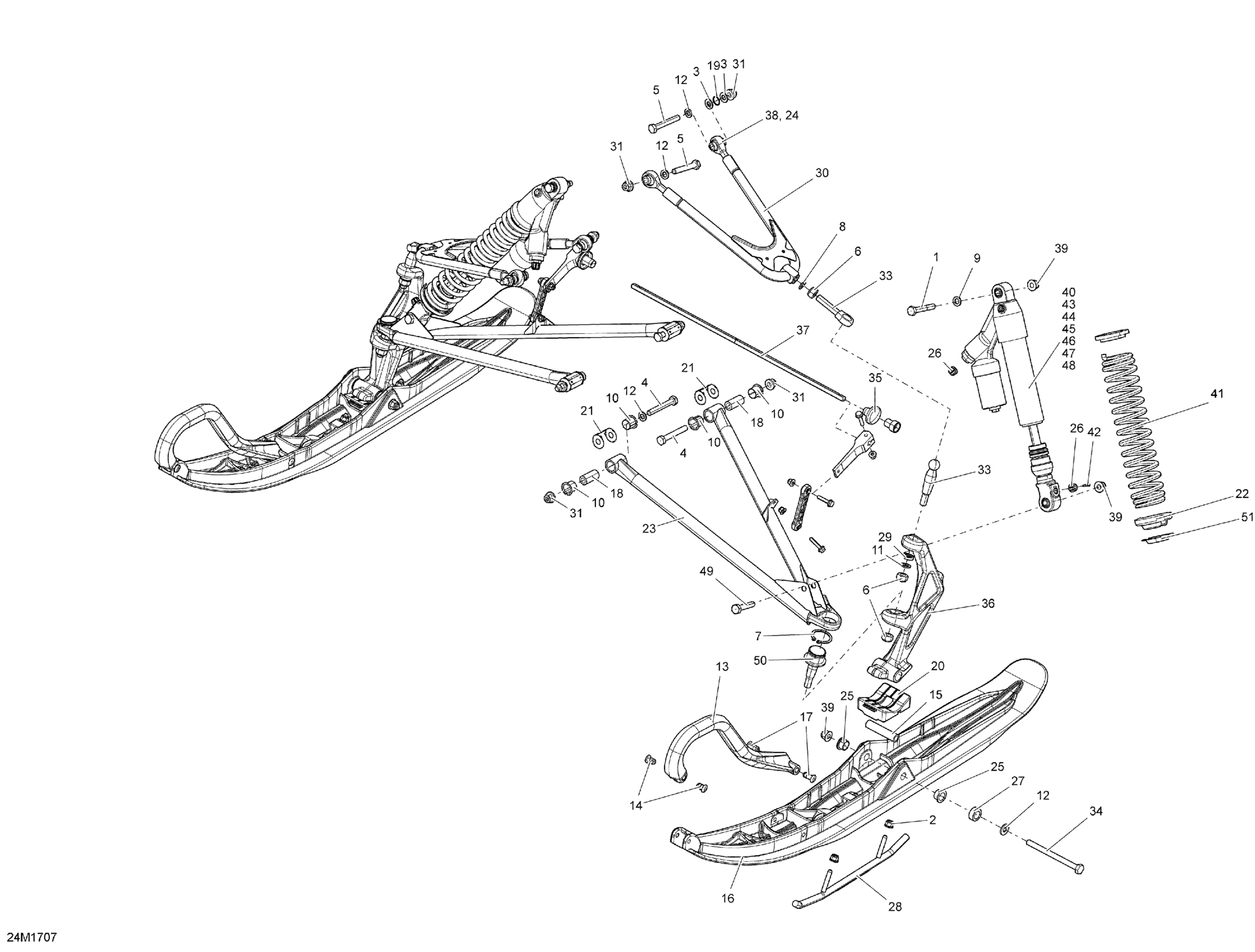

Ski-Doo MXZ 600 RS, 2017 Front Suspension And Ski Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

2

Hex. Flange Elastic Nut M8

233281414

$1.31

3

Flat Washer 10 mm

234001410

$1.12

4

Screw Hex. M10 X 70

250001024

$2.00

5

SCREW HEX. M10 X 65 - Call your local BRP dealership

250000387

Unavailable

6

Hex. Elastic Hex. Nut M12

250100089

$0.45

6

Hex Elastic Nut M12 X 1.25

232521464

$2.00

7

Circlip

293370035

$2.48

8

Washer

503189276

$3.10

9

Washer

503189564

$0.70

10

Cushion

503191766

$5.54

11

Washer

503192491

$4.25

12

Washer

503192496

$0.73

13

Black Handle

505073138

$33.55

14

Retainer 17mm long

505071812

$4.30

15

Spacer

506133300

$19.37

16

Black Pilot Ski 5.7X

505072205

$145.49

17

Retainer 23mm Long

505072133

$4.88

18

Aluminum Bushing

505072401

$15.64

19

O-Ring

505072448

$2.18

20

Ski Stopper

505072594

$17.13

21

Wear Plate

505072634

$4.31

22

Spring Stopper

505072635

$32.81

23

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

23

LH LOWER ARM - Call your local BRP dealership

505072655

$235.04

24

Nut Hexagonal RH.

232026414

$1.43

25

Leg Bushing

505072690

$5.75

26

Adjustment Knob

505072753

$2.01

27

Spacer

505072807

$17.13

28

Round Carbide Runner

860201043

$140.27

29

SPACER - Call your local BRP dealership

505073506

Unavailable

30

RH UPPER ARM - Call your local BRP dealership

505073528

Unavailable

30

LH UPPER ARM - Call your local BRP dealership

505073527

Unavailable

31

Hex. Flange Elastic Nut M10

250100165

$0.81

33

Upper Ball Joint This part replaces 505073491.

505073561

$50.72

34

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

35

Cap

572091300

$8.70

36

LEG-SKI MACH. - Call your local BRP dealership

505074010

Unavailable

36

LEG-SKI MACH. - Call your local BRP dealership

505074011

Unavailable

37

Stabilisator

505072602

$70.12

38

BALL JOINT - Call your local BRP dealership

505073532

Unavailable

39

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

40

RH FRONT SHOCK - Call your local BRP dealership

505073695

Unavailable

40

LH FRONT SHOCK - Call your local BRP dealership

505073694

Unavailable

41

Deep Black, Spring

505073537

$64.90

42

Allen Screw M3 X 0.5 X 10

250000644

$2.00

43

O-Ring

415093807

$33.55

44

Piston Ring | Not Shown

415093806

$14.52

45

Air Valve

505070398

$17.13

46

Screw | Not Shown

505070399

$3.88

47

O-Ring

505070400

$4.25

48

O-Ring

415093804

$4.25

49

Hex Screw M10 X 1.5 X 55

207005554

$7.09

50

Ball Joint

505073636

$48.48

51

Cap

706200793

$4.28
