Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

STATOR PLATE - Call your local BRP dealership

420893060

Unavailable

3

AC GENERATOR 12V 360W - Call your local BRP dealership This part replaces 420665727.

420891544

Unavailable

4

Pick-Up

410922951

$114.99

5

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

6

Torx Screw M6 X 16

420640324

$2.11

7

Starting Pulley

420852590

$29.49

8

Flat Washer

420827405

$1.69

9

Socket Head Screw M8 X 12

420841520

$1.69

10

Tube

420460871

$2.11

11

Conduit Clip

420960896

$2.21

12

Tie Rap

420866714

$1.90

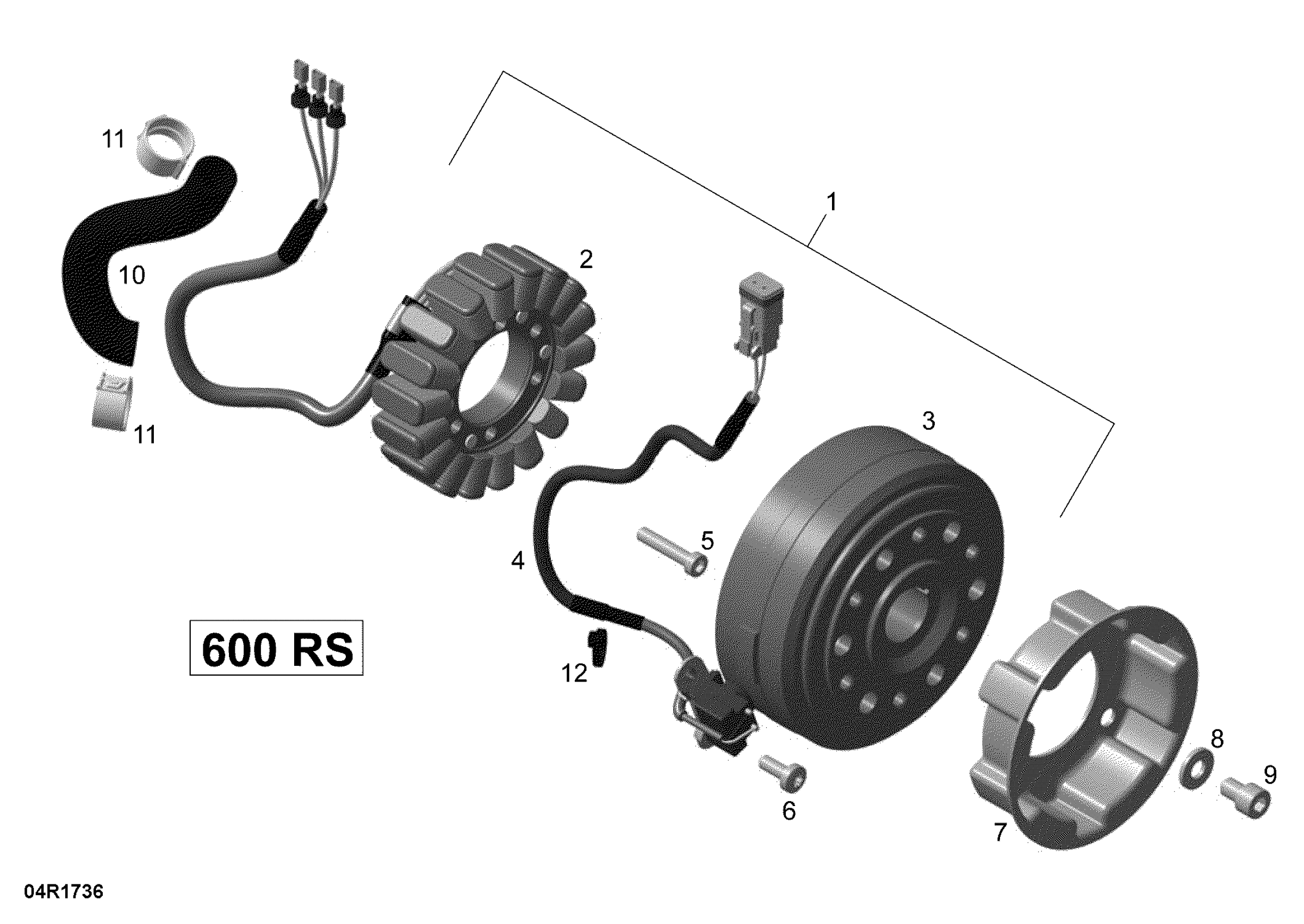

Ski-Doo MXZ 600 RS, 2017 03- Magneto Diagram

Not Available As Spare Part - Friction Washer

STATOR PLATE - Call your local BRP dealership

AC GENERATOR 12V 360W - Call your local BRP dealership This part replaces 420665727.

Pick-Up

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

Torx Screw M6 X 16

Starting Pulley

Flat Washer

Socket Head Screw M8 X 12

Tube

Conduit Clip

Tie Rap
