Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Shim

420827767

$16.86

3

Ball Bearing 6207 | With drive pin

420832575

$52.99

4

Ball Bearing 6207 | With drive pin

420832575

$52.99

5

Oil Seal

420931795

$17.63

6

Lock Washer, 22 mm

420945759

$1.90

7

Hex. Nut, M22 X 1.5

420842239

$17.53

8

Ball Bearing 6208 | With drive pin

420832600

$79.49

9

Washer

420926190

$11.63

10

Oil Seal

420931910

$37.99

11

Ball Bearing This part replaces 420832603.

420832671

$104.99

12

Oil Seal | Included in gasket kit

420931284

$23.49

13

Woodruff Key

420246015

$3.17

14

Needle Bearing

420832445

$27.49

15>16

Piston Ass'y, 71.87 mm

420893303

$228.99

16

Semi-Trapez Ring

420815295

$63.99

17

Piston Pin

420916413

$38.49

18

Piston Circlip

420845106

$3.93

19

Ball Bearing 6207 | With drive pin

420832575

$52.99

20

Oil Seal

420931455

$35.99

21

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

22

ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership

420891637

Unavailable

23

Rod Repair Kit - Call your local BRP dealership

420891639

$313.99

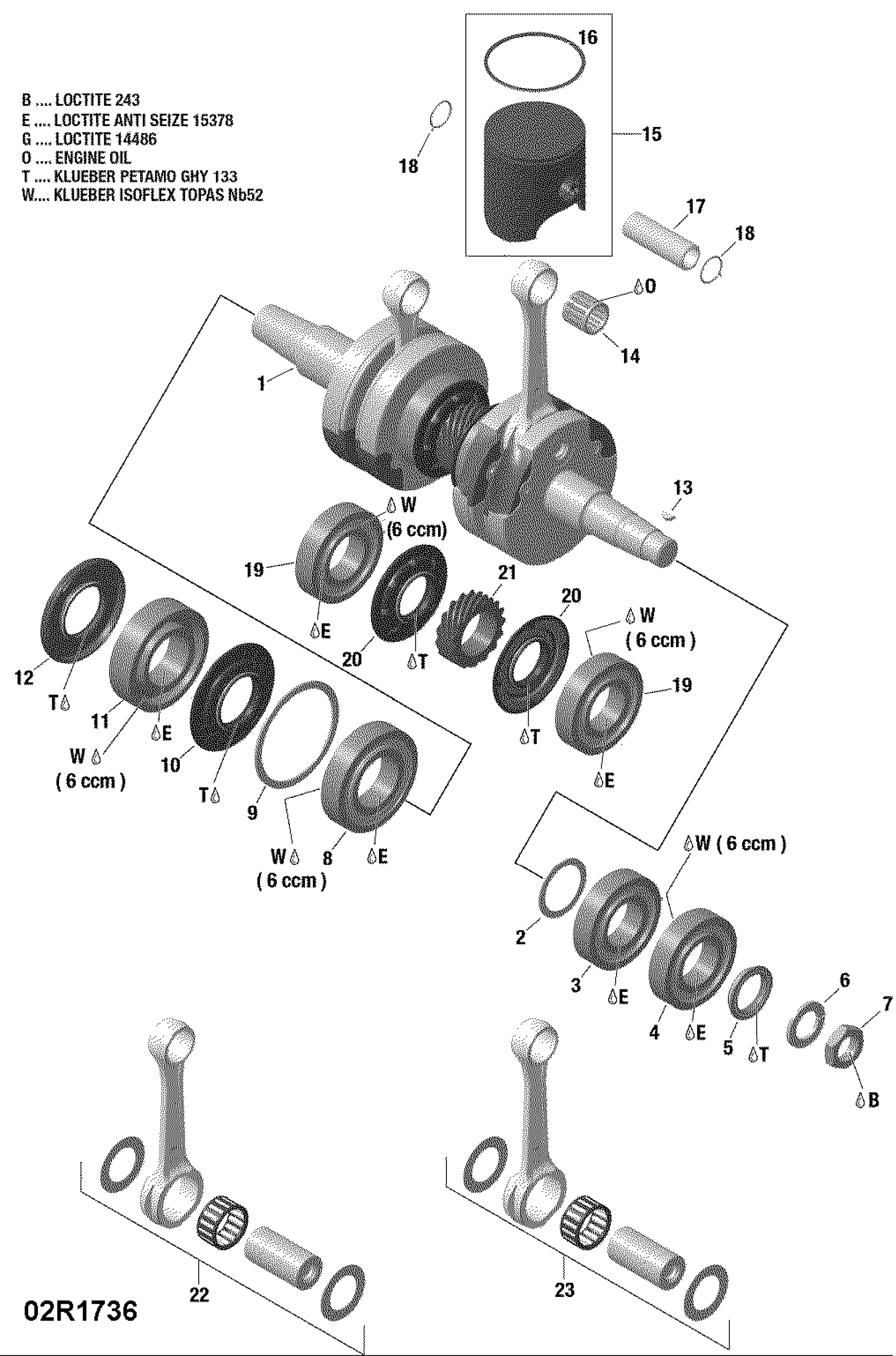

Ski-Doo MXZ 600 RS, 2017 01- Crankshaft and Pistons Diagram

Not Available As Spare Part - Friction Washer

Shim

Ball Bearing 6207 | With drive pin

Ball Bearing 6207 | With drive pin

Oil Seal

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Ball Bearing 6208 | With drive pin

Washer

Oil Seal

Ball Bearing This part replaces 420832603.

Oil Seal | Included in gasket kit

Woodruff Key

Needle Bearing

Piston Ass'y, 71.87 mm

Semi-Trapez Ring

Piston Pin

Piston Circlip

Ball Bearing 6207 | With drive pin

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership

Rod Repair Kit - Call your local BRP dealership
