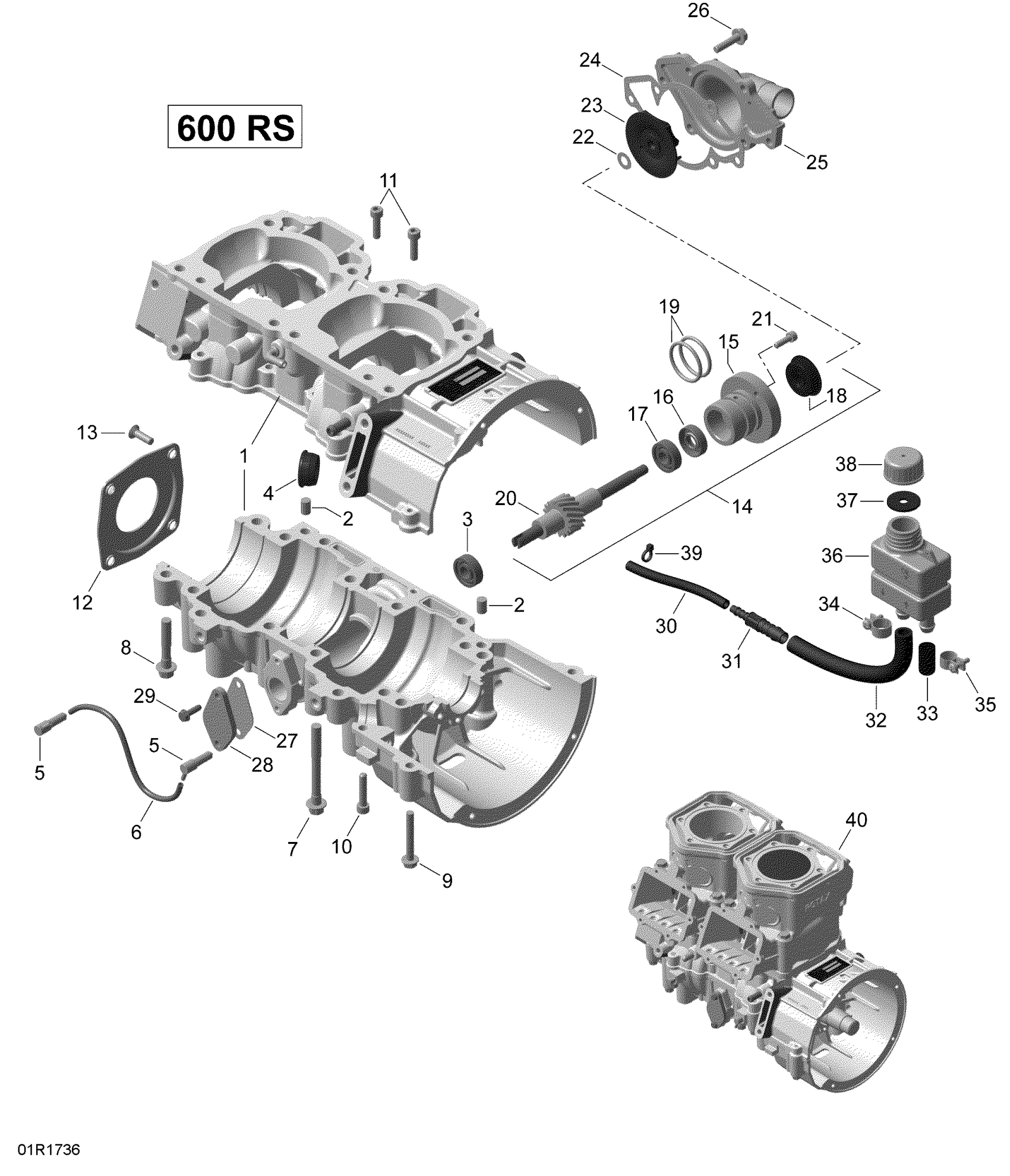

Ski-Doo MXZ 600 RS, 2017 01- Crankcase Diagram

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 6

420893291

Unavailable

Center Pin 8 X 12

420632010

$4.01

Ball Bearing

420232100

$20.99

Cable Grommet

420860965

$14.28

Check Valve

420956511

$35.99

Oil Hose 1500Mm Long

219704404

$17.26

Hex. Collar Screw M8 X 75

420640836

$13.16

Hex. Collar Screw M8 x 45

420640432

$8.57

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

Socket Head Screw M6 X 30

205063044

$1.69

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.48

Oil Seal Cover

420812422

$14.83

Screw M6 X 20

420941436

$3.17

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

Not Available As Spare Part - Friction Washer

Unavailable

Oil Seal

420230195

$15.36

Ball Bearing

420232100

$20.99

Rotary Seal

420650371

$43.49

O-Ring

420950890

$4.44

Not Available As Spare Part - Friction Washer

Unavailable

Allen Screw M5 x 16

420840514

$1.90

Thrust Washer

420227945

$4.01

Water Impeller

420222505

$19.99

Gasket This part replaces 420931810.

420931811

$13.76

Water Pump Housing

420922630

$61.49

Hex. Screw M6 X 25

420240034

$1.90

Gasket This part replaces 420931566.

420931568

$10.33

Cover Plate

420810827

$14.83

Taptite Screw M5 X 16

420941928

Unavailable

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

Fitting

420874370

$14.83

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

Closure Cap

420960279

$4.59

CLAMP - Call your local BRP dealership

420951260

Unavailable

CLAMP - Call your local BRP dealership

420951241

$9.79

Oil Tank Ass'y | Includes 25 to 27

420956240

$73.99

Rubber Gasket

420850350

$5.39

Oil Tank Cap

420956250

$15.28

Tie Rap

420866710

$5.49

BLOCK-SHORT 593RS - Call your local BRP dealership

420059325

Unavailable
