1981 Yamaha MX80 (MX80H) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

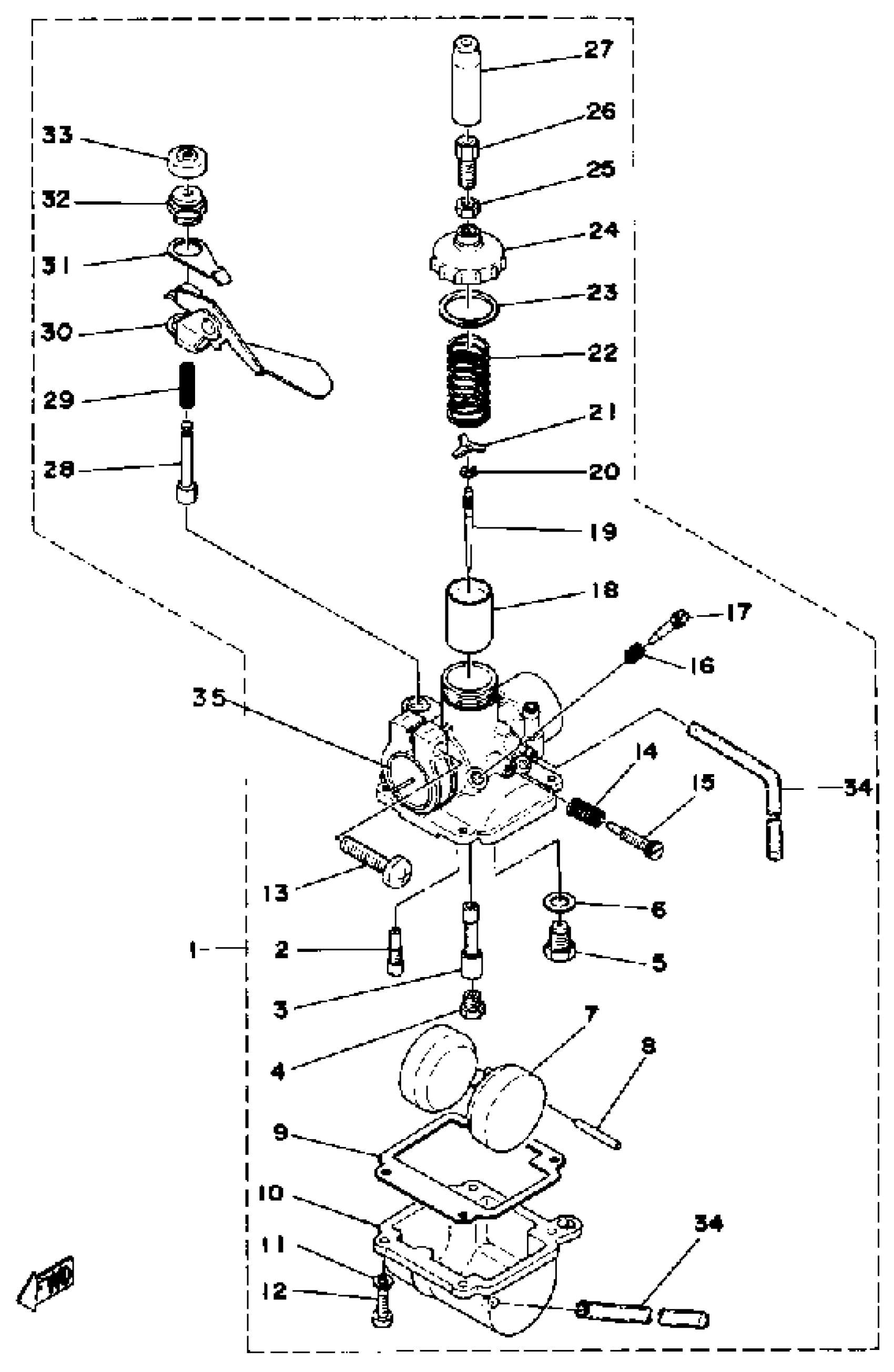

1981 Yamaha MX80 (MX80H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

367-14301-61-00

1
Out of stock

2

. JET, PILOT #34

367-14342-17-00

1
Out of stock

3

. NOZZLE, MAIN

288-14341-02-00

1
Out of stock

4

. JET, MAIN #92

288-14343-46-00

1
Out of stock

4

. JET, MAIN #94

288-14343-47-00

1
Out of stock

4

. JET, MAIN #96

288-14343-48-00

1
Out of stock

5

VALVE SEAT ASSY

367-14390-14-00

1

$34.91

In stock

6

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

7

FLOAT

367-14385-00-00

—
Out of stock

8

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

9

GASKET, FLOAT CHAMBER

4U1-14384-00-00

1

$6.75

In stock

10

BODY, FLOAT CHAMBER

(1G5-14381-25-00)

1
Out of stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

14

. SPRING, PILOT ADJUSTING

646-14212-01-00

1

$5.53

In stock

15

SCREW, PILOT ADJUSTING

646-14211-02-00

—

$5.65

In stock

16

. SPRING, AIR ADJUST

367-14337-00-00

1
Out of stock

17

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

18

. VALVE, THROTTLE 1

367-14312-10-00

1
Out of stock

19

. UNAVAILABLE IN PRICE BOOK

388-14336-03-00

1
Out of stock

20

. CLIP

288-14137-00-00

1
Out of stock

21

. SEAT, SPRING (367-14136-00)

367-14136-02-00

1
Out of stock

22

. SPRING, THRTL VALVE

367-14331-00-00

1
Out of stock

23

. GASKET

367-14126-00-00

1
Out of stock

24

. CAP, MIXING CHAMBER

367-14168-00-00

1
Out of stock

25

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

26

. SCREW, CABLE ADJUSTING

288-14124-00-00

1
Out of stock

27

. CAP

367-14169-00-00

1
Out of stock

28

PLUNGER,STARTER

29J-1410A-00-00

1
Out of stock

29

. SPRING, PLUNGER

367-14335-00-00

1
Out of stock

30

. LEVER, STARTER

367-14375-01-00

1
Out of stock

31

. STOPPER

367-14377-00-00

1
Out of stock

32

PLUNGER,STARTER

29J-1410A-00-00

1
Out of stock

33

COVER, PLUNGER CAP

(367-14373-00-00)

1
Out of stock

34

PIPE, OVER FLOW

367-14396-00-00

—

$8.49

In stock

35

GASKET, INSULATING

367-14156-00-00

1
Out of stock
