1980 Yamaha MX80 (MX80G) Kick-Starter Diagram

← All diagrams

Find the part on the Kick-Starter diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

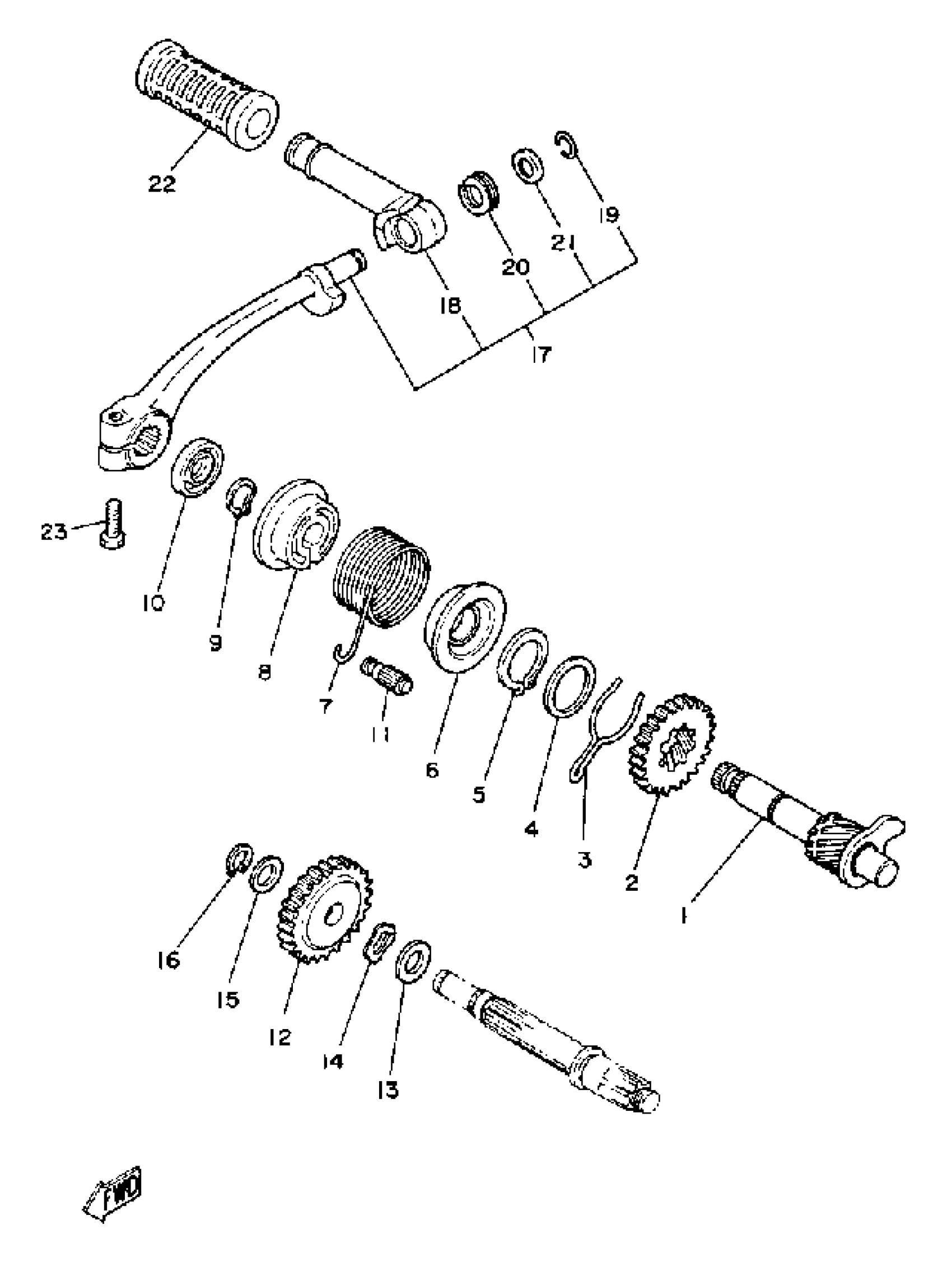

1980 Yamaha MX80 (MX80G) Kick-Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

353-15660-01-00

1
Out of stock

2

GEAR, KICK (24T)

353-15641-00-00

1
Out of stock

3

CLIP

90468-26038-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (256)

93410-25017-00

1
Out of stock

6

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

11

STOPPER, KICK SPRING

248-15668-00-00

1
Out of stock

12

GEAR, KICK IDLE

353-15651-00-00

1
Out of stock

13

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

14

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

15

WASHER (692)

90201-12M34-00

1

$3.47

In stock

16

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

17

KICK CRANK ASSEMBLY

3AY-15620-00-00

1
Out of stock

18

LEVER, KICK

(214-15612-09-00)

1
Out of stock

19

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

20

SPRING, COMPRESSION (5L1)

90504-18031-00

—

$7.66

In stock

21

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

22

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

23

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock
