1980 Yamaha MX80 (MX80G) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

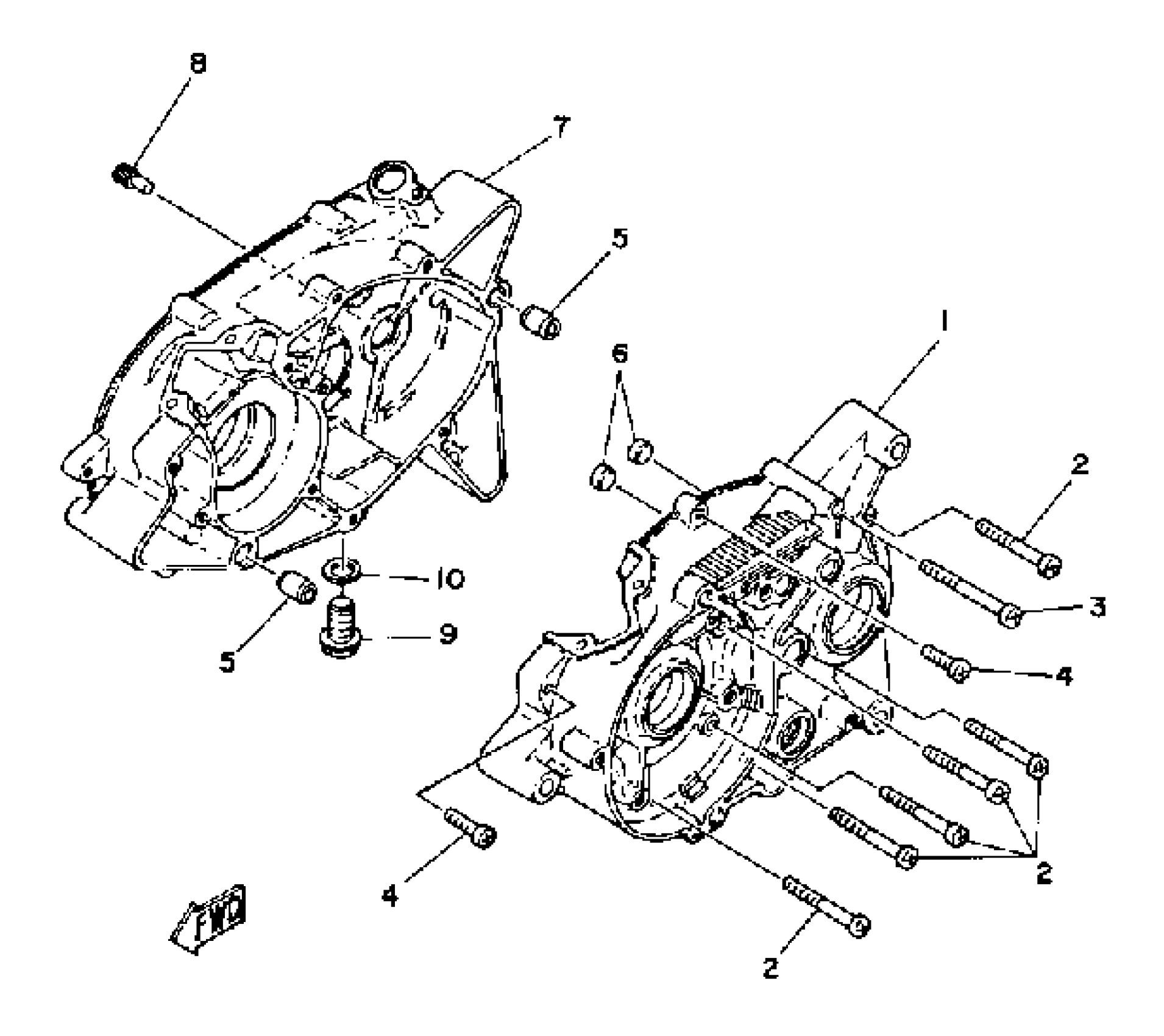

1980 Yamaha MX80 (MX80G) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(374-15111-00-00)

1
Out of stock

2

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

3

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

4

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

5

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

6

PLUG, STRAIGHT

90334-12009-00

1
Out of stock

7

CRANKCASE 2

374-15121-02-00

1
Out of stock

8

STOPPER

492-15387-00-00

1
Out of stock

9

1

$6.71

In stock

10

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock
