1980 Yamaha MX80 (MX80G) Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

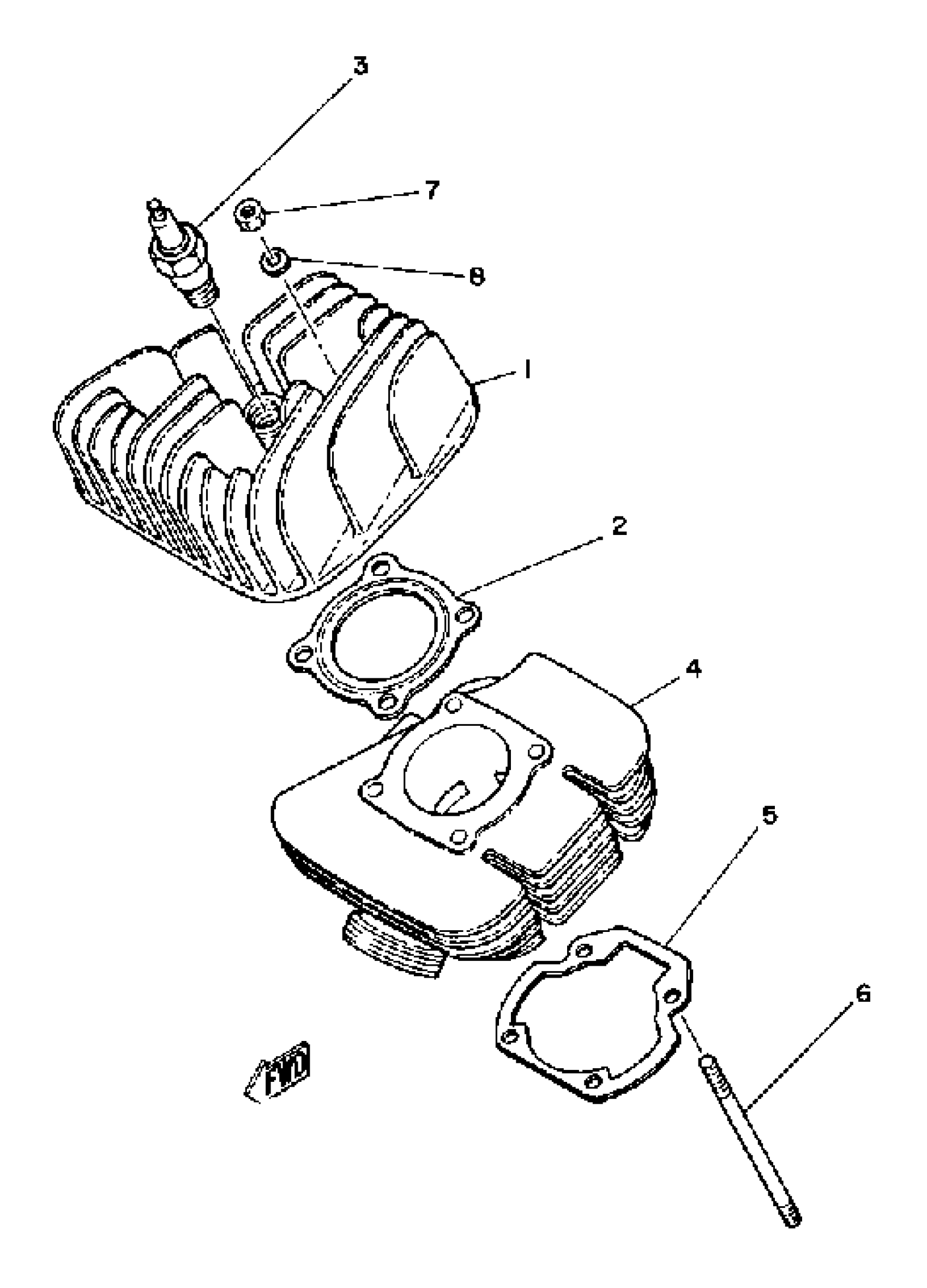

1980 Yamaha MX80 (MX80G) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

367-11111-01-R4

1
Out of stock

2

GASKET, CYLINDER HEAD

2F4-11181-00-00

1

$42.98

In stock

3

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

4

CYLINDER 1

367-11311-00-00

1
Out of stock

5

GASKET, CYLINDER

367-11351-01-00

1

$5.93

In stock

6

BOLT STUD 1091136100

90116-06026-00

1

$2.69

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
← Crankshaft-Piston Exhaust →
