1980 Yamaha MX80 (MX80G) Handlebar-Cable Diagram

← All diagrams

Find the part on the Handlebar-Cable diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

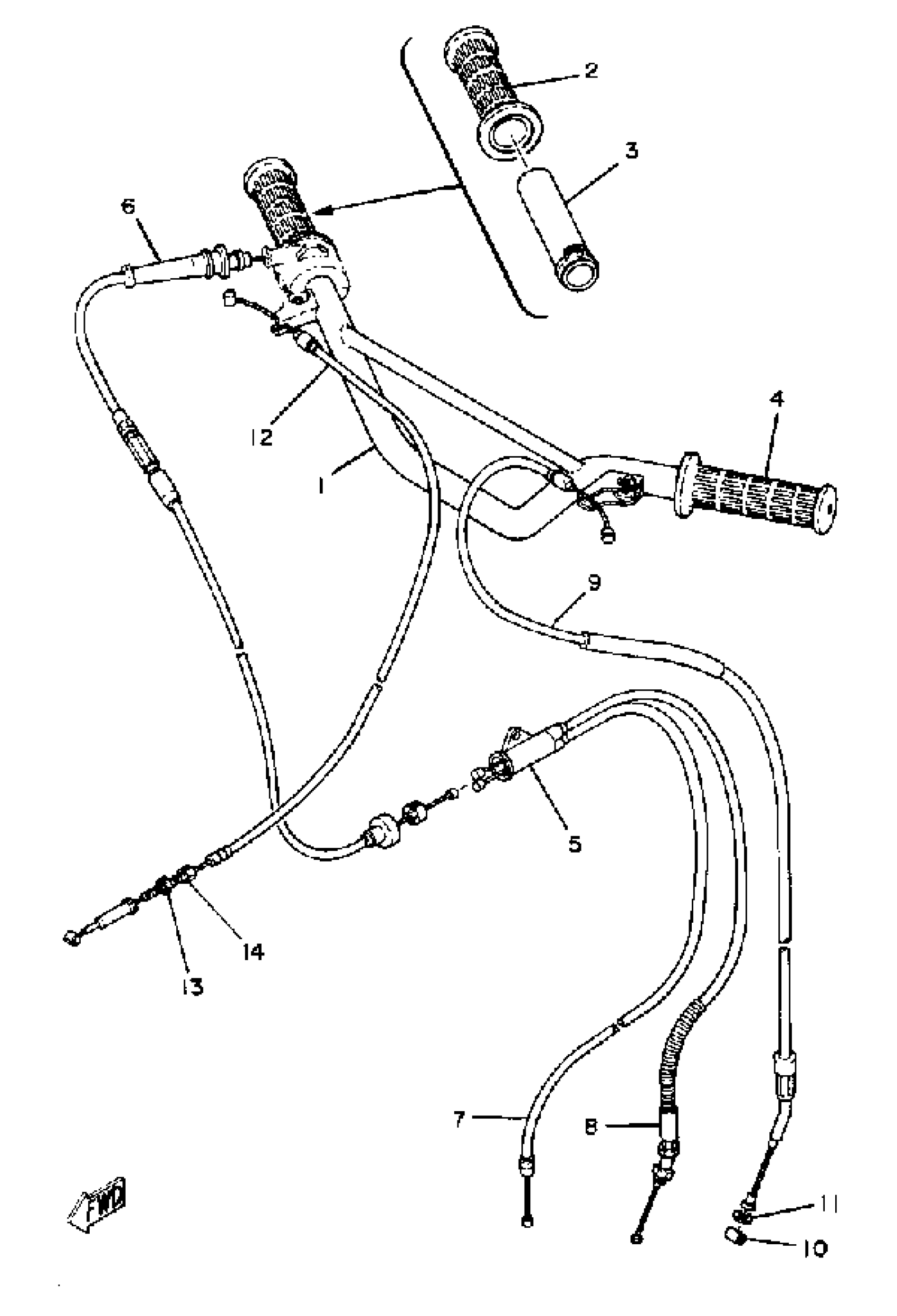

1980 Yamaha MX80 (MX80G) Handlebar-Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

367-26111-03-00

1
Out of stock

2

GRIP (R.H.)

462-26242-00-00

1
Out of stock

3

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

4

GRIP (L.H.)

462-26241-00-00

1
Out of stock

5

CONNECTER, CABLE

4U1-26261-00-00

1

$33.76

In stock

6

WIRE, THROTTLE 1

367-26311-02-00

—

$51.73

In stock

7

CABLE,THROTTLE 2

336-26312-00-00

1
Out of stock

8

CABLE, PUMP

367-26321-02-00

1
Out of stock

9

WIRE, CLUTCH

367-26335-02-00

1

$51.42

In stock

10

END, WIRE

164-26363-00-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

CABLE, BRAKE

367-26341-01-00

1
Out of stock

13

NUT (109-26344-00)

90179-06143-00

1

$6.68

In stock

14

BOLT (109-26345-00)

90123-06011-00

1

$14.12

In stock
