1980 Yamaha MX80 (MX80G) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1980 Yamaha MX80 (MX80G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

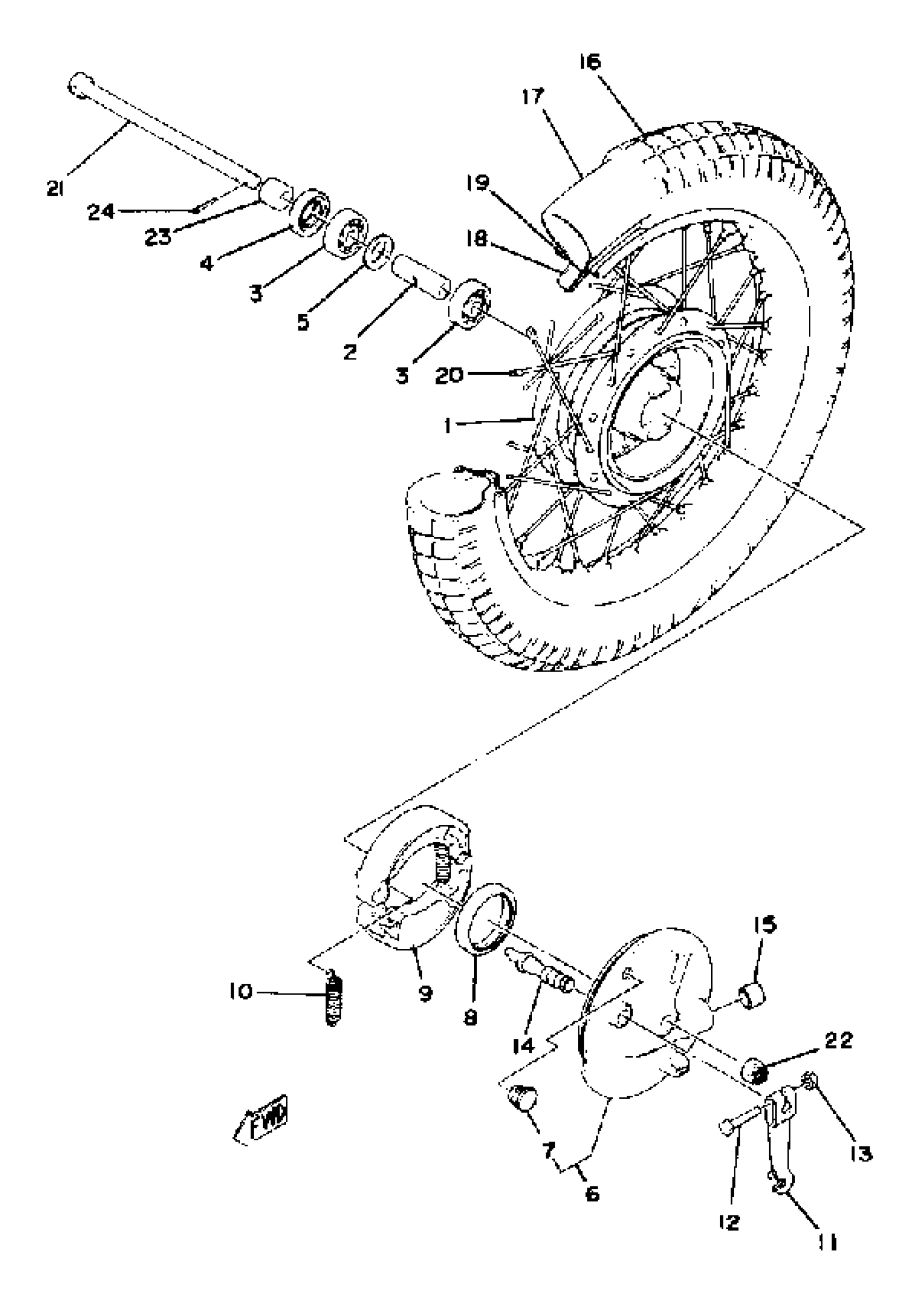

1980 Yamaha MX80 (MX80G) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(367-25111-00-Y8)

1
Out of stock

2

SPACER, BEARING

90560-10303-00

1
Out of stock

3

BRG,R-B 6300 35MM 58G NT

93306-30003-00

1
Out of stock

4

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

5

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

6

PLATE, BRAKE SHOE

1K8-25121-00-35

1
Out of stock

7

GROMMET (397)

90480-10068-00

1

$6.77

In stock

8

SEAL,OIL

93105-47007-00

1
Out of stock

9

BRAKE SHOE KIT

4KN-W253E-11-00

1

$22.40

In stock

10

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

11

LEVER, CAMSHAFT 1

538-25155-00-00

1
Out of stock

12

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

15

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

16

250-15 IRC TRIALS

94125-15478-00

1
Out of stock

17

TUBE (1K8)

94225-15103-00

—

$26.06

In stock

18

BAND, RIM(3DM)

94313-15154-00

—

$5.69

In stock

19

RIM 1.40X15

94414-15058-00

1
Out of stock

20

SPOKE SET, FRONT

288-25104-01-00

1
Out of stock

21

AXLE, WHEEL

99999-02188-00

1
Out of stock

22

NUT 3532518200

90171-10004-00

—

$5.32

In stock

23

COLLAR

90387-10077-00

1
Out of stock

24

PIN, COTTER

91490-20025-00

—

$1.31

In stock
