1975 Yamaha MX400 (MX400B) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

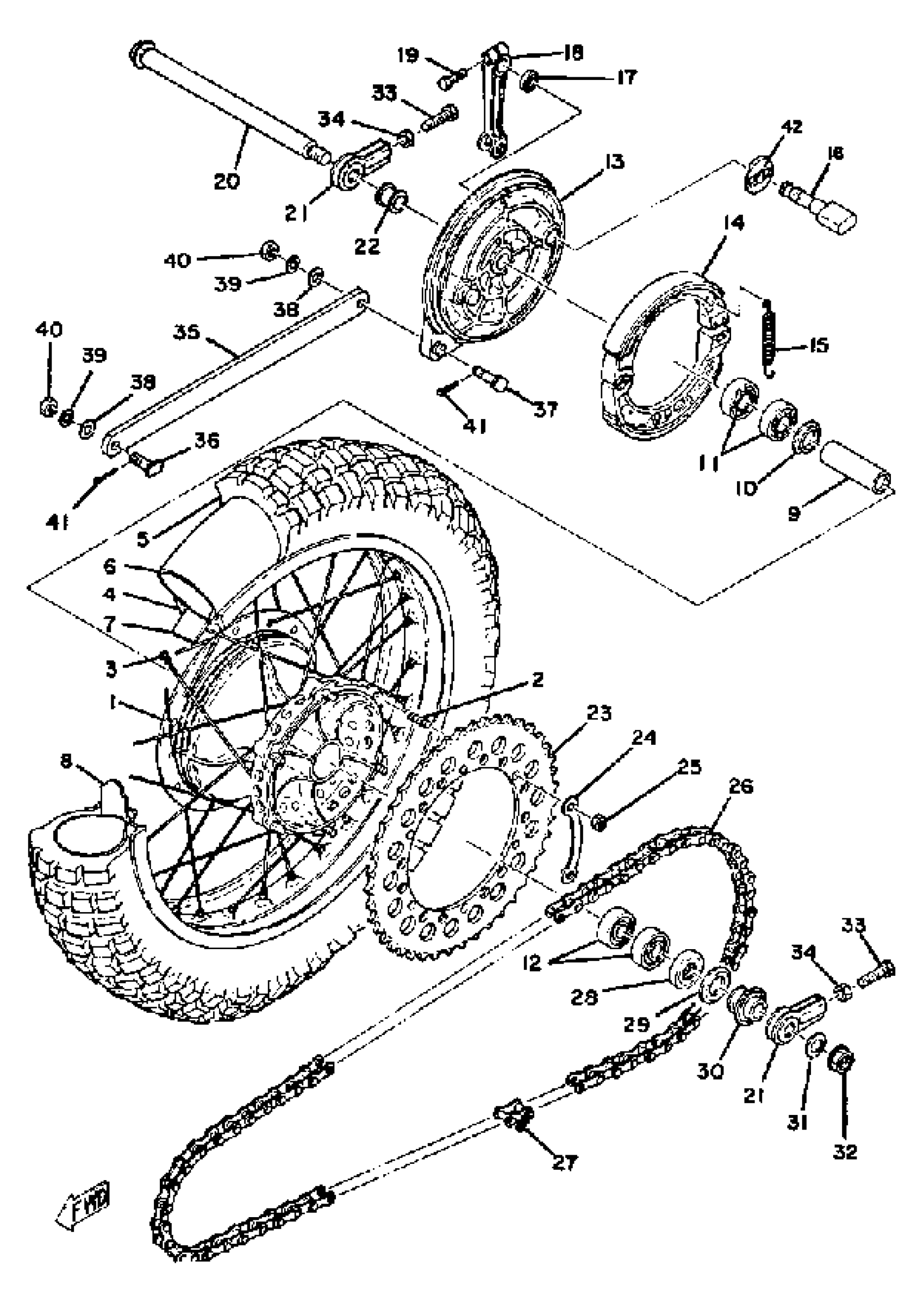

1975 Yamaha MX400 (MX400B) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(483-25311-13-98)

1
Out of stock

2

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

3

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

1
Out of stock

3

NO LONGER AVAILABLE

431-25391-90-00

1
Out of stock

3

SPOKE SET, OUTER 1

(431-25392-90-00)

1
Out of stock

3

SPOKE SET, INNER 2

(431-25396-90-00)

1
Out of stock

4

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

1
Out of stock

5

460X18 DUN SR SPRT

(94146-18109-00)

1
Out of stock

6

TUBE

(94246-18040-00)

1
Out of stock

7

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

8

SPACER,BEAD

1T1-25394-01-00

1
Out of stock

9

SPACER, BEARING

483-25317-01-00

1
Out of stock

10

FLANGE, SPACER

483-25315-00-00

1
Out of stock

11

1

$31.64

In stock

12

1

$31.64

In stock

13

PLATE, BRAKE SHOE

(483-25321-00-98)

1
Out of stock

14

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

15

—

$8.09

In stock

16

CAMSHAFT

(431-25351-00-00)

1
Out of stock

16

CAMSHAFT

(509-25351-00-00)

1
Out of stock

17

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

18

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

20

AXLE, WHEEL

(431-25381-00-00)

1
Out of stock

21

PULLER, CHAIN 1

431-25388-00-00

1
Out of stock

22

COLLAR

90387-17215-00

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK (431-25448-02)

(431-25448-03-XX)

1
Out of stock

23

SPROCKET, DRIVN 48T

(431-25448-04-XX)

1
Out of stock

23

UNAVAILABLE IN PRICE BOOK (431-25450-02)

(431-25450-04-XX)

1
Out of stock

23

SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)

431-25450-04-XX

1
Out of stock

23

SPROCKET, DRIVN 52T

(431-25452-04-XX)

1
Out of stock

23

SPROCKET, DRIVN 52T

(431-25452-04-XX)

1
Out of stock

24

WASHER

509-25412-00-00

1
Out of stock

25

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

26

520 DS 106L

94585-20106-00

1
Out of stock

27

. JOINT CHAIN

94680-11001-00

1
Out of stock

28

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

29

COVER, HUB DUST

431-25367-00-00

1
Out of stock

30

COLLAR

90387-17555-00

1
Out of stock

31

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

32

NUT, HEXAGON

90170-16177-00

1
Out of stock

33

BOLT

90101-08060-00

—

$4.92

In stock

34

. NUT

95380-08700-00

1

$3.07

In stock

35

BAR, TENSION

(509-25371-00-00)

1
Out of stock

36

BOLT

(90109-08378-00)

1
Out of stock

37

BOLT

90109-08176-00

1
Out of stock

38

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

. NUT

95380-08700-00

1

$3.07

In stock

41

PIN, COTTER

91490-20025-00

—

$1.31

In stock

42

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock
