1975 Yamaha MX400 (MX400B) Rear ARM Diagram

← All diagrams

Find the part on the Rear ARM diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

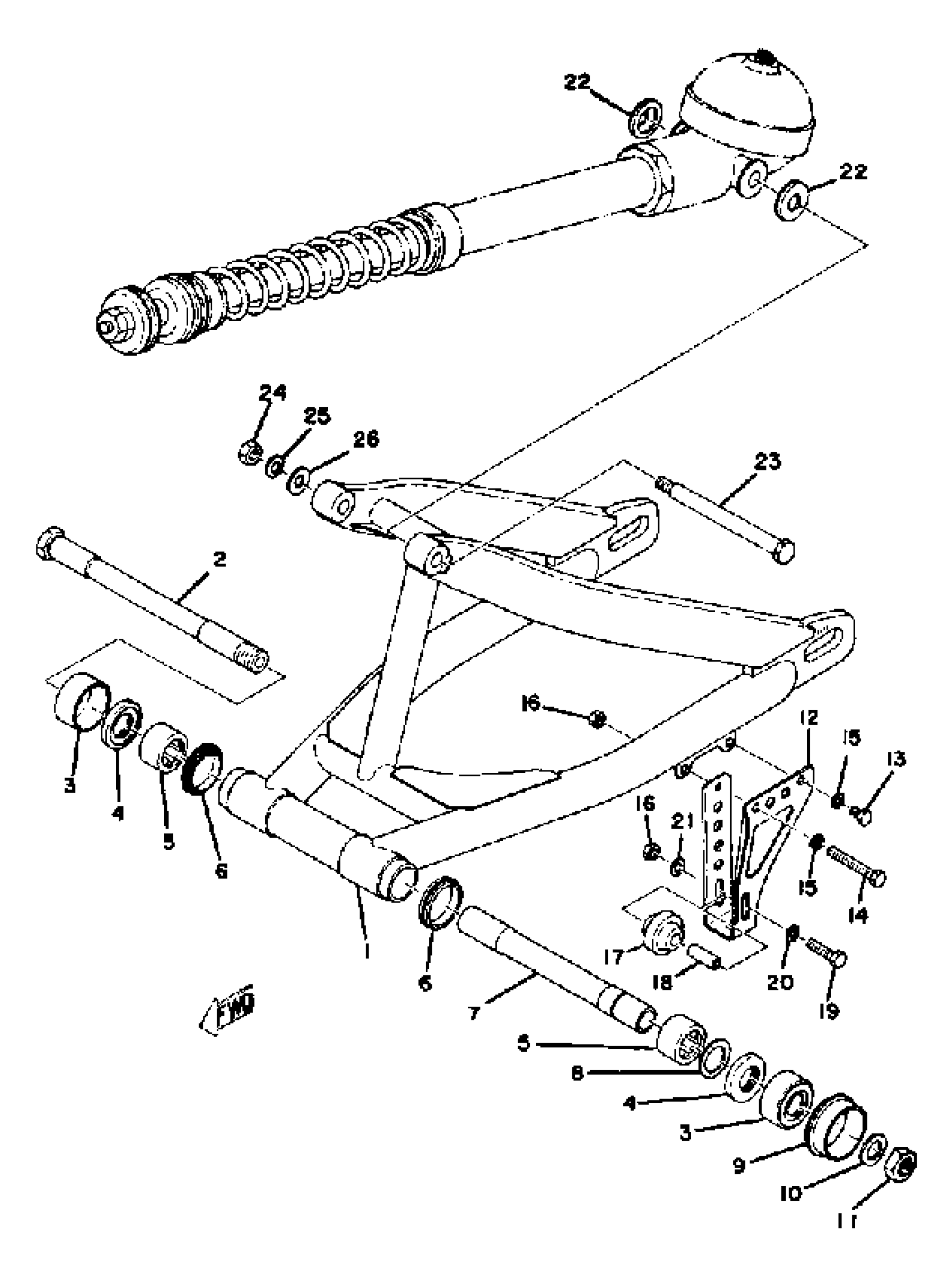

1975 Yamaha MX400 (MX400B) Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(483-22110-03-33)

1
Out of stock

2

SHAFT, PIVOT

1W4-22141-00-00

1
Out of stock

3

COVER, THRUST 2

2K8-22129-00-00

1
Out of stock

3

SEAL, GUARD

431-22151-03-00

1
Out of stock

3

THRUST COVER (483-22129-00)

99999-00938-00

1
Out of stock

4

BEARING, THRUST

93342-22205-00

1
Out of stock

5

1

$40.38

In stock

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

1

$12.58

In stock

7

BUSH 2

483-22124-00-00

1
Out of stock

8

SHIM (90201-22284)

648-45533-00-02

1
Out of stock

9

SEAL, GUARD

431-22151-03-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT

90170-16111-00

1
Out of stock

12

GUARD, CHAIN

322-22153-00-33

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

17

TENSIONER

322-22178-00-00

1
Out of stock

18

SPACER (322-22137-00)

90560-06003-00

1
Out of stock

19

BOLT (682)

97095-06040-00

—

$2.36

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

COVER, THRUST 1

483-22128-00-00

1
Out of stock

23

BOLT

90109-08300-00

1
Out of stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
