1975 Yamaha MX400 (MX400B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

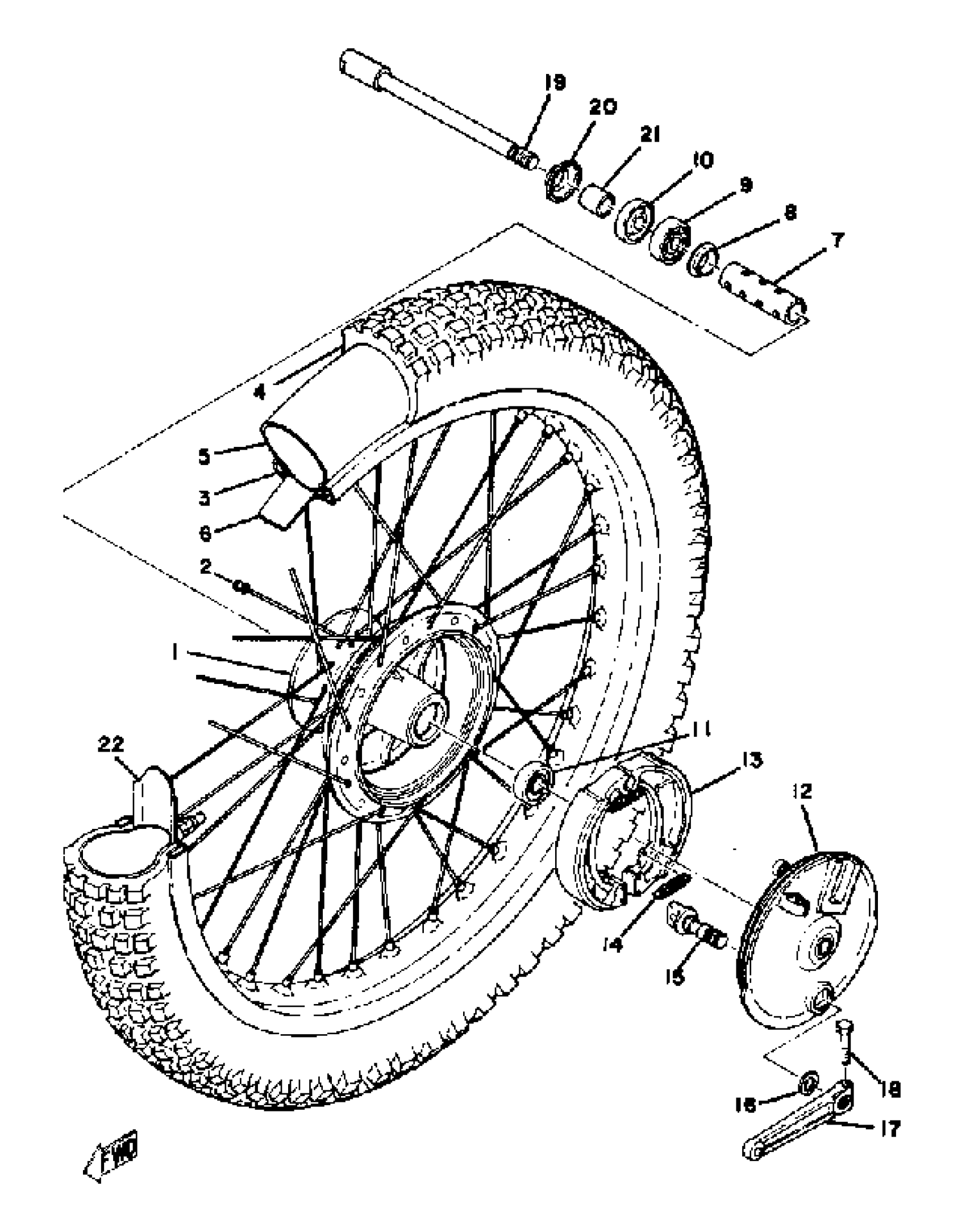

1975 Yamaha MX400 (MX400B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(322-25111-00-98)

1
Out of stock

2

SPOKE SET, FRONT

(322-25104-01-00)

1
Out of stock

2

SPOKE SET, INNER 2

(322-25179-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(322-25189-90-00)

1
Out of stock

2

SPOKE SET, INNER 1

(322-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(322-25197-90-00)

1
Out of stock

3

RIM 1.60X21

94416-21326-00

1
Out of stock

4

300-21 M1B (TT)

(94130-213A4-00)

1
Out of stock

5

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER

90560-15116-00

1
Out of stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BEARING

93306-20205-00

1

$32.63

In stock

10

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1

$21.28

In stock

12

PLATE, BRAKE SHOE

(483-25121-00-98)

1
Out of stock

13

BRAKE SHOE KIT

322-W253A-10-00

—

$31.99

In stock

14

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

15

CAMSHAFT

(431-25151-00-00)

1
Out of stock

16

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

17

LEVER, CAMSHAFT 1

322-25155-00-00

1
Out of stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

AXLE, WHEEL

(431-25181-00-00)

1
Out of stock

20

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

21

COLLAR (322-25183-00)

90387-15418-00

1
Out of stock

22

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock
