1975 Yamaha MX400 (MX400B) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

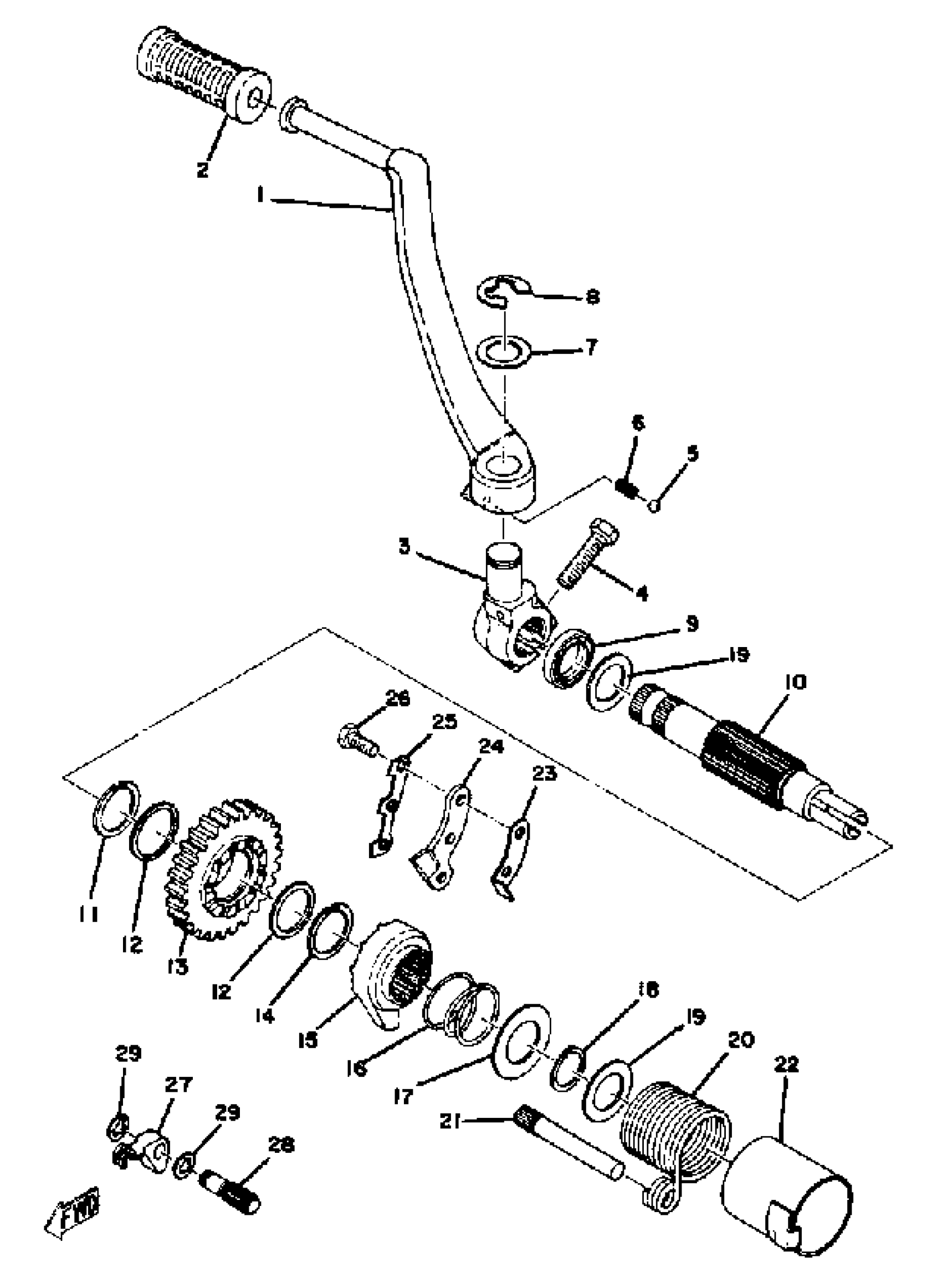

1975 Yamaha MX400 (MX400B) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

498-15611-01-93

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

BOSS, KICK CRANK

498-15621-00-91

1
Out of stock

4

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

5

BALL (12R)

93507-32031-00

1
Out of stock

6

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

7

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

10

AXLE, KICK

(498-15661-00-00)

1
Out of stock

11

1 CIRCLIP, OUTER

93440-25027-00

1
Out of stock

12

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

13

GEAR, KICK

(363-15641-00-00)

1
Out of stock

14

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

15

WHEEL, RACHET

583-15671-00-00

—
Out of stock

16

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

17

COVER, SPRING

363-15676-00-00

—
Out of stock

18

CIRCLIP(1EY)

99009-19400-00

—

$6.17

In stock

19

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

20

SPRING, KICK

90508-32060-00

1
Out of stock

21

STOPPER

(364-15668-00-00)

1
Out of stock

22

GUIDE, SPRING

(498-15664-00-00)

1
Out of stock

23

STOPPER

434-15668-00-00

—
Out of stock

24

GUIDE, RATCHET WHEEL

(363-15674-00-00)

1
Out of stock

25

WASHER, LOCK

363-15686-00-00

—
Out of stock

26

UNAVAILABLE IN PRICE BOOK

97301-06106-00

1
Out of stock

27

LINK

363-15656-00-00

1
Out of stock

28

SHAFT

363-15659-00-00

1
Out of stock

29

CIRCLIP

99080-07600-00

1

$2.89

In stock
