1975 Yamaha MX400 (MX400B) Crank-Piston Diagram

← All diagrams

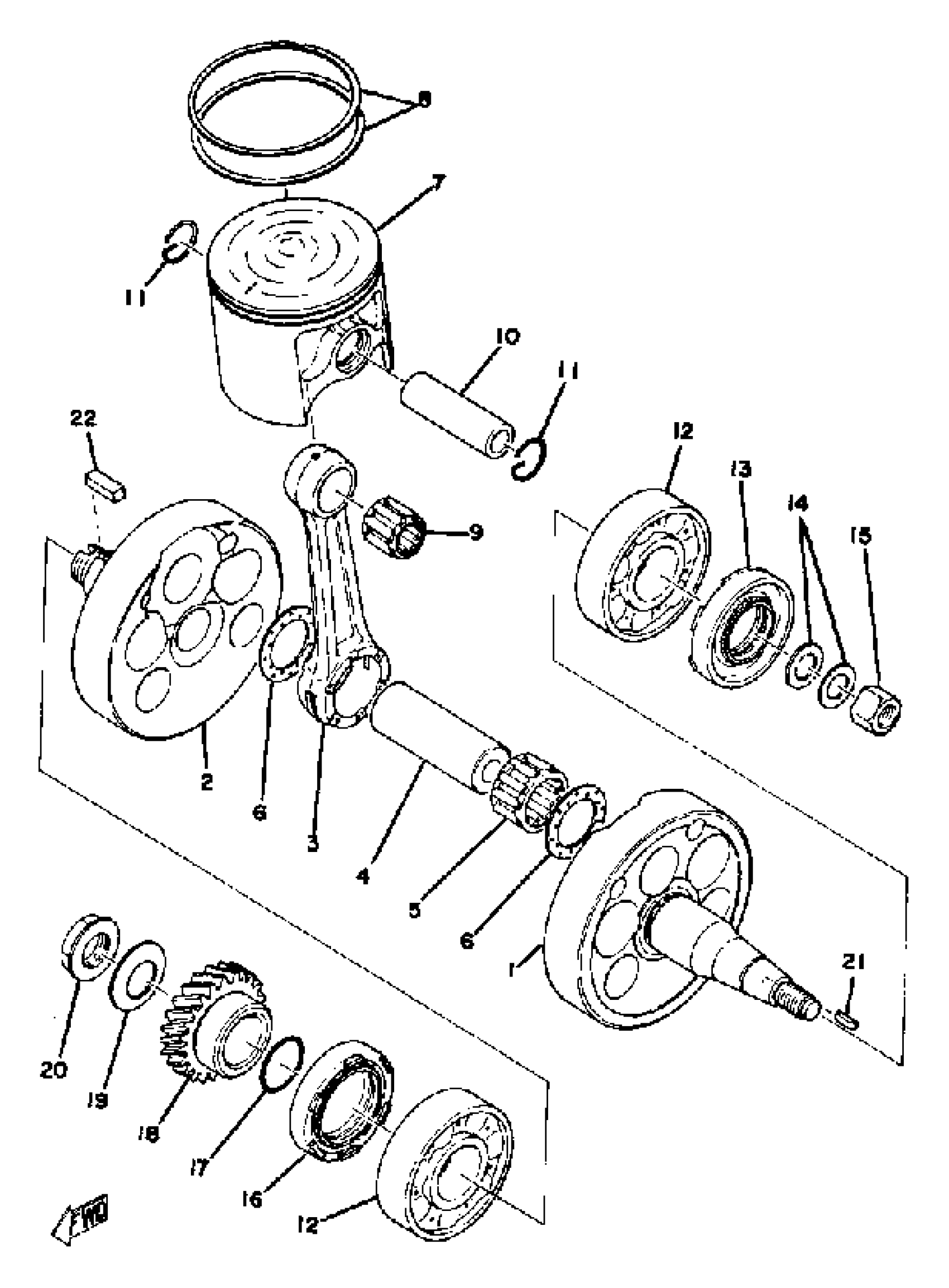

Find the part on the Crank-Piston diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX400 (MX400B) Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(510-11400-01-00)

1
Out of stock

1

CRANK 1

(510-11412-01-00)

1
Out of stock

2

CRANK 2

(500-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

510-11651-00-00

1
Out of stock

4

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

5

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

6

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

7

PISTON STD

510-11631-03-96

1
Out of stock

7

PISTON 1 O/S 0.25

(510-11635-03-00)

1
Out of stock

7

PISTON 2 O/S 0.50

510-11636-03-00

1
Out of stock

7

PISTON 3 O/S 0.75

(510-11637-03-00)

1
Out of stock

7

PISTON 4 O/S 1.00

510-11638-03-00

1
Out of stock

8

PISTON RINGSET STD

510-11601-01-00

1
Out of stock

8

PISTON RINGSET 1ST

510-11601-11-00

1
Out of stock

8

PISTON RINGSET 2ND

510-11601-21-00

1
Out of stock

8

PISTON RINGSET 3RD

510-11601-31-00

1
Out of stock

8

PISTON RINGSET 4TH

510-11601-41-00

1
Out of stock

8

PISTON KIT STD

(510-11630-01-00)

1
Out of stock

8

PISTON KIT 1ST

(510-11630-11-00)

1
Out of stock

8

PISTON KIT 2ND

(510-11630-21-00)

1
Out of stock

8

PISTON KIT 3RD

(510-11630-31-00)

1
Out of stock

8

PISTON KIT 4TH

(510-11630-41-00)

1
Out of stock

9

—

$32.87

In stock

10

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

11

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

12

BRG,R-B 6306 72MM 351G KY

93306-30615-00

—

$72.96

In stock

13

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

14

WASHER (492)

90201-12535-00

—
Out of stock

15

NUT, HEXAGON (525)

90170-12181-00

—

$11.51

In stock

16

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

17

O-RING (498)

93210-29282-00

—
Out of stock

18

GEAR, PRI DRIVE

(500-16111-00-00)

1
Out of stock

19

SPRING

214-16119-00-00

—
Out of stock

20

NUT (498)

90179-18172-00

—
Out of stock

21

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

22

KEY, STRAIGHT (498)

90282-07019-00

—

$8.69

In stock
