1975 Yamaha MX400 (MX400B) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

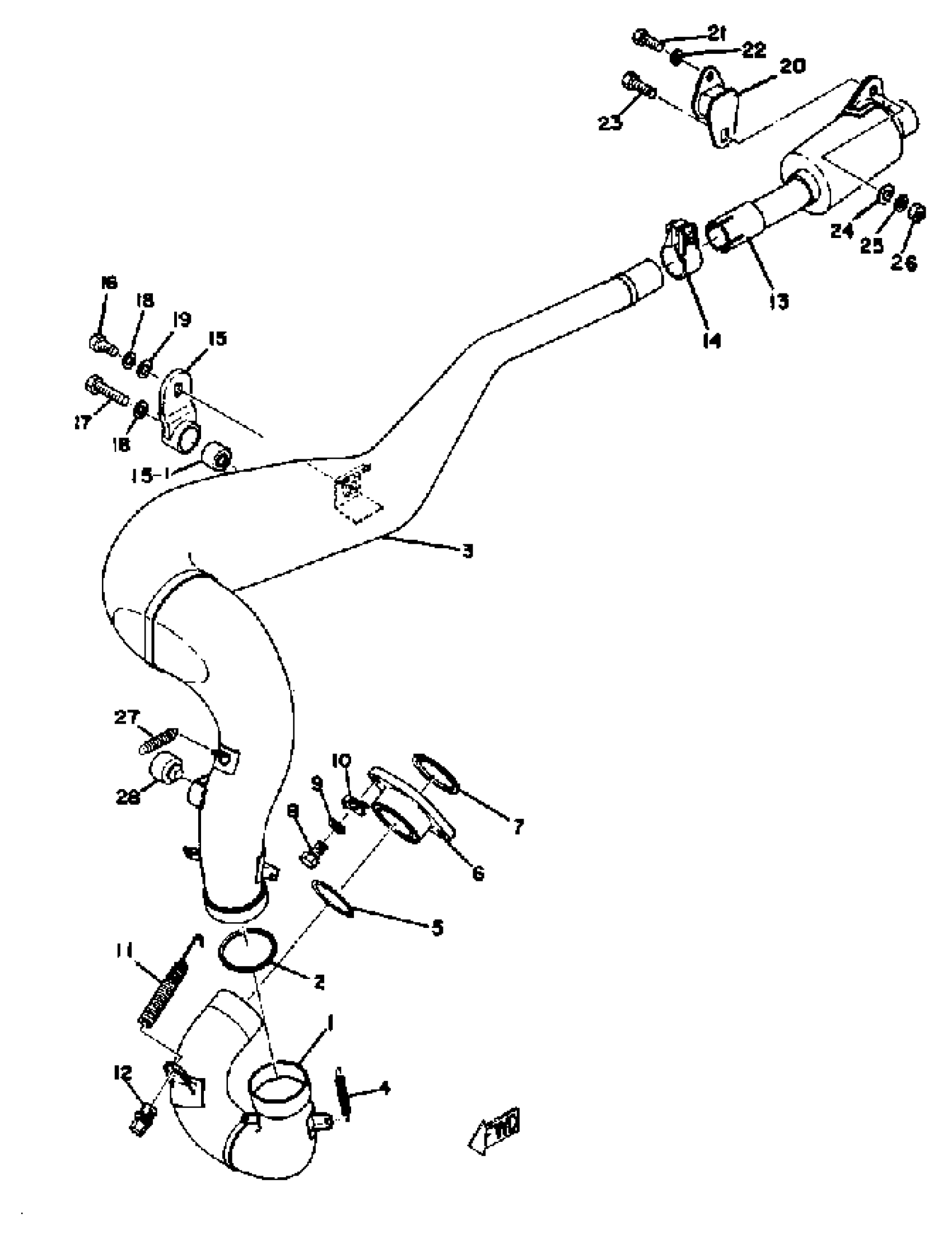

1975 Yamaha MX400 (MX400B) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUSHING, REAR CUSHION

164-22216-00-00

1

$12.17

In stock

1

PIPE, EXHAUST L

(510-14611-01-00)

1
Out of stock

2

GASKET

248-14623-10-00

1

$6.22

In stock

3

MUFFLER L

(510-14711-02-00)

1
Out of stock

4

SPRING, TENSION

90506-18068-00

1
Out of stock

5

GASKET

248-14623-10-00

1

$6.22

In stock

6

NUT, RING

(214-14612-00-00)

1
Out of stock

7

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

8

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

PLATE

363-14685-00-00

1
Out of stock

11

SPRING,TENSION

90507-20012-00

1
Out of stock

12

BOLT

(90109-08304-00)

1
Out of stock

13

SILENCER, EXHAUST

(510-14753-01-00)

1
Out of stock

14

CLAMP, HOSE

90460-35076-00

1
Out of stock

15

STAY, MUFFLER 1

483-14771-00-00

1
Out of stock

16

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

17

BOLT

97013-08035-00

—

$4.80

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

STAY, MUFFLER 2

483-14781-03-00

—
Out of stock

21

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

SPRING, TENSION

90506-14129-00

1
Out of stock

28

STOPPER MAIN STAND

278-27114-00-00

—

$8.45

In stock
