1975 Yamaha MX400 (MX400B) Electrical Diagram

← All diagrams

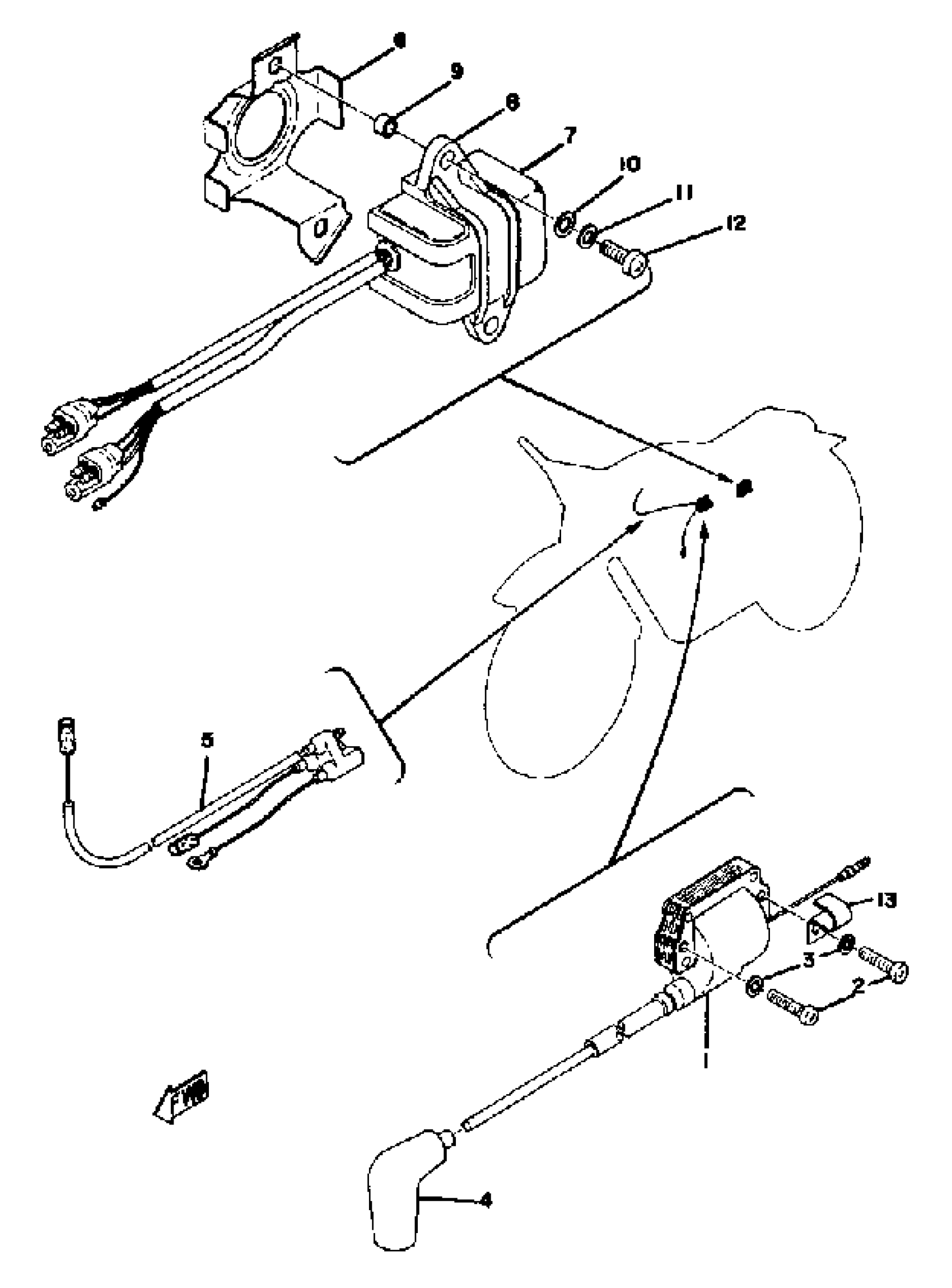

Find the part on the Electrical diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX400 (MX400B) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

PLUG CAP ASSEMBLY

294-82370-00-00

1
Out of stock

5

WIRE, SUB LEAD

(509-85517-01-00)

1
Out of stock

6

BRACKET

(509-85542-00-00)

1
Out of stock

7

CDI UNIT ASSEMBLY

445-85540-22-00

1
Out of stock

8

BAND

(510-85546-00-00)

1
Out of stock

9

COLLAR(8R4)

90387-062N2-00

1

$6.94

In stock

10

WASHER, PLATE

90201-06M08-00

1
Out of stock

11

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
