1975 Yamaha MX400 (MX400B) C - D - I - Magneto Diagram

← All diagrams

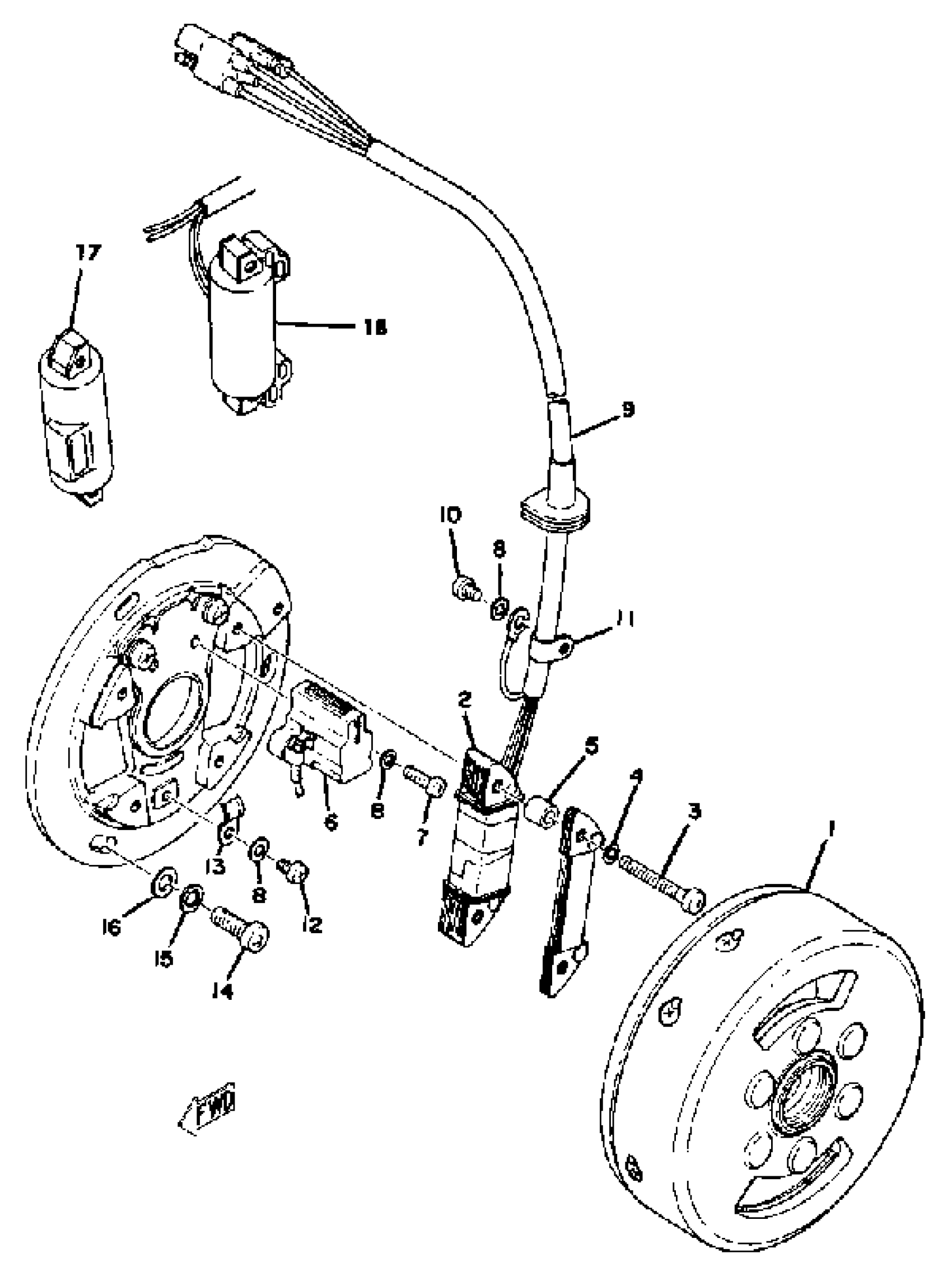

Find the part on the C - D - I - Magneto diagram for your 1975 Yamaha MX400 (MX400B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX400 (MX400B) C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

(500-85550-20-00)

1
Out of stock

1

CDI MAGNETO ASSEMBLY

(510-85500-21-00)

1
Out of stock

2

. COIL SOURCE 2

445-85512-20-00

1
Out of stock

3

SCREW, PAN

98507-05035-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

SPACER

(445-85519-20-00)

1
Out of stock

6

. COIL, PULSER

445-85580-21-00

1
Out of stock

7

SCREW, PAN HEAD(GA5)

98580-04014-00

1
Out of stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

9

LEAD WIRE ASSEMBLY

(510-85515-20-00)

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1
Out of stock

11

CLAMP, READ

445-81328-20-00

—
Out of stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

13

CLAMP, LEAD

(445-85528-20-00)

1
Out of stock

14

SCREW, PAN HEAD(6E5)

97880-06018-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

17

COIL, CHARGE 1

(322-85566-10-00)

1
Out of stock

18

COIL, CHARGE 2

(322-85567-10-00)

1
Out of stock
