1973 Yamaha MX360 (MX360) Transmission Diagram

← All diagrams

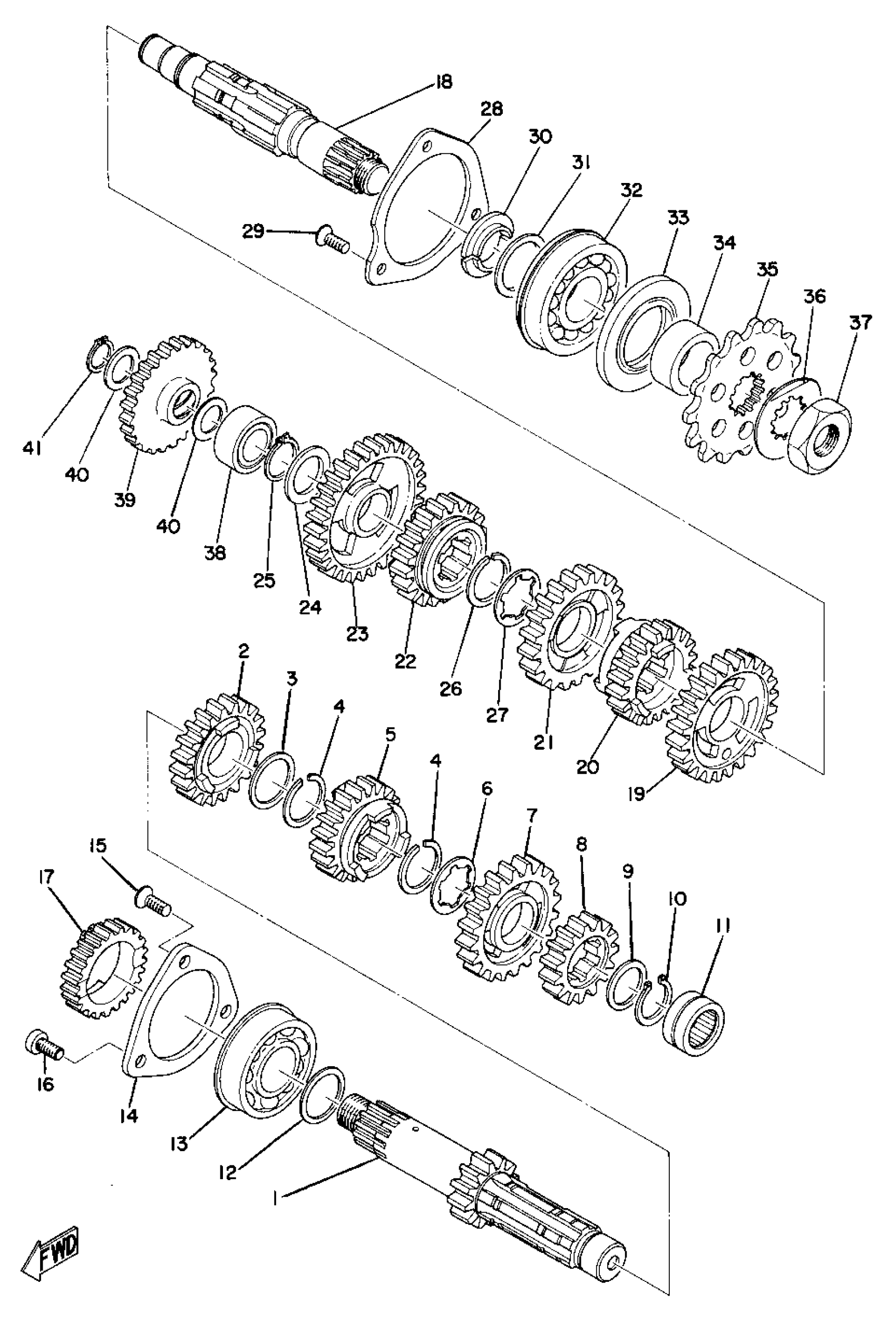

Find the part on the Transmission diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha MX360 (MX360) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(214-17411-61-00)

1
Out of stock

1

AXLE, MAIN

(322-17411-11-00)

1
Out of stock

1

AXLE, MAIN

(364-17411-10-00)

1
Out of stock

1

AXLE, MAIN

(365-17411-10-00)

1
Out of stock

1

AXLE, MAIN

(365-17411-60-00)

1
Out of stock

1

AXLE, MAIN

(446-17411-00-00)

1
Out of stock

1

AXLE, MAIN

(450-17411-00-00)

1
Out of stock

2

GEAR, 4TH PINION

(214-17141-11-00)

1
Out of stock

2

GEAR, 4TH PINION (26T)

438-17141-00-00

1
Out of stock

3

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

(364-17131-11-00)

1
Out of stock

5

GEAR, 3RD PINION

(364-17131-71-00)

1
Out of stock

5

GEAR, 3RD PINION

(365-17131-11-00)

1
Out of stock

5

GEAR, 3RD PINION

(438-17131-01-00)

1
Out of stock

6

WASHER, SPEC''L SHAP

(90209-21080-00)

1
Out of stock

6

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

7

GEAR, 5TH PINION

(308-17151-60-00)

1
Out of stock

7

GEAR, 5TH PINION

(322-17151-10-00)

1
Out of stock

7

GEAR, 5TH PINION

(365-17151-10-00)

1
Out of stock

7

GEAR, 5TH PINION

450-17151-00-00

1
Out of stock

8

. GEAR, 2ND PINION

214-17121-60-00

1
Out of stock

8

GEAR, 2ND PINION

(322-17121-10-00)

1
Out of stock

8

GEAR, 2ND PINION

(365-17121-10-00)

1
Out of stock

8

GEAR, 2ND PINION 001

(365-17121-60-00)

1
Out of stock

8

GEAR, 2ND PINION

450-17121-00-00

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

—
Out of stock

10

CIRCLIP(1EY)

99009-19400-00

—

$6.17

In stock

11

BEARING

93311-42077-00

—
Out of stock

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

12

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

13

BRG,R-B 4205 52MM 185G KY

93304-20501-00

—

$90.57

In stock

13

BEARING (93306-20515)

93306-20535-00

1
Out of stock

14

PLATE, BRNG COVER

(363-15383-00-00)

1
Out of stock

15

SCREW, FLAT

98707-06014-00

—
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock

17

NO LONGER AVAILABLE

214-15631-00-00

1
Out of stock

17

GEAR, KICK PINION

(363-15631-00-00)

1
Out of stock

17

GEAR, KICK PINION

(438-15631-00-00)

1
Out of stock

17

GEAR, KICK PINION

(445-15631-00-00)

1
Out of stock

18

AXLE, DRIVE

(291-17421-00-00)

1
Out of stock

18

AXLE, DRIVE

(365-17421-00-00)

1
Out of stock

18

AXLE, DRIVE

(438-17421-00-00)

1
Out of stock

18

AXLE, DRIVE

(445-17421-00-00)

1
Out of stock

19

GEAR, 2ND WHEEL

(214-17221-60-00)

1
Out of stock

19

GEAR, 2ND WHEEL

(322-17221-10-00)

1
Out of stock

19

GEAR, 2ND WHEEL 001

(365-17221-60-00)

1
Out of stock

20

GEAR, 5TH WHEEL

(275-17251-10-00)

1
Out of stock

20

GEAR, 5TH WHEEL

(322-17251-10-00)

1
Out of stock

20

GEAR, 5TH WHEEL

(365-17251-10-00)

1
Out of stock

20

GEAR, 5TH WHEEL (23T)

438-17251-00-00

1
Out of stock

21

GEAR, 3RD WHEEL

(291-17231-60-00)

1
Out of stock

21

GEAR, 3RD WHEEL

(322-17231-10-00)

1
Out of stock

21

GEAR, 3RD WHEEL

(365-17231-10-00)

1
Out of stock

21

GEAR, 3RD WHEEL

(450-17231-00-00)

1
Out of stock

22

NO LONGER AVAILABLE

291-17241-11-00

1
Out of stock

22

GEAR, 4TH WHEEL

(365-17241-10-00)

1
Out of stock

22

GEAR, 4TH WHEEL

(438-17241-00-00)

1
Out of stock

23

. GEAR, 1ST WHEEL

214-17211-60-00

1
Out of stock

23

GEAR, 1ST WHEEL

(322-17211-10-00)

1
Out of stock

24

WASHER PLATE 168171160000

90201-20278-00

—
Out of stock

25

CIRCLIP(1EY)

99009-19400-00

—

$6.17

In stock

26

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

27

WASHER, SPEC''L SHAP

(90209-21080-00)

1
Out of stock

27

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

28

PLATE, BRNG COVER

(363-15381-00-00)

1
Out of stock

29

SCREW, FLAT

98707-05012-00

—
Out of stock

30

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

—
Out of stock

32

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

—
Out of stock

33

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

34

COLLAR

(90387-25193-00)

1
Out of stock

35

SPROCKET, DRIVE (13T)

9383E-13216-00

—
Out of stock

35

SPROCKET, DRIVE (14T)

9383E-14215-00

—

$20.42

In stock

35

SPROCKET, DRIVE

4DN-17460-00-00

—

$50.31

In stock

35

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

1
Out of stock

36

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

37

NUT 152174630000

90179-18020-00

—
Out of stock

38

BEARING

93313-31709-00

1
Out of stock

38

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

—
Out of stock

39

GEAR, KICK IDLE (23T)

275-15651-00-00

1
Out of stock

39

GEAR, KICK IDLE

(363-15651-00-00)

1
Out of stock

40

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

40

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

41

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

41

CIRCLIP(1EY)

99009-17400-00

—
Out of stock
