1973 Yamaha MX360 (MX360) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

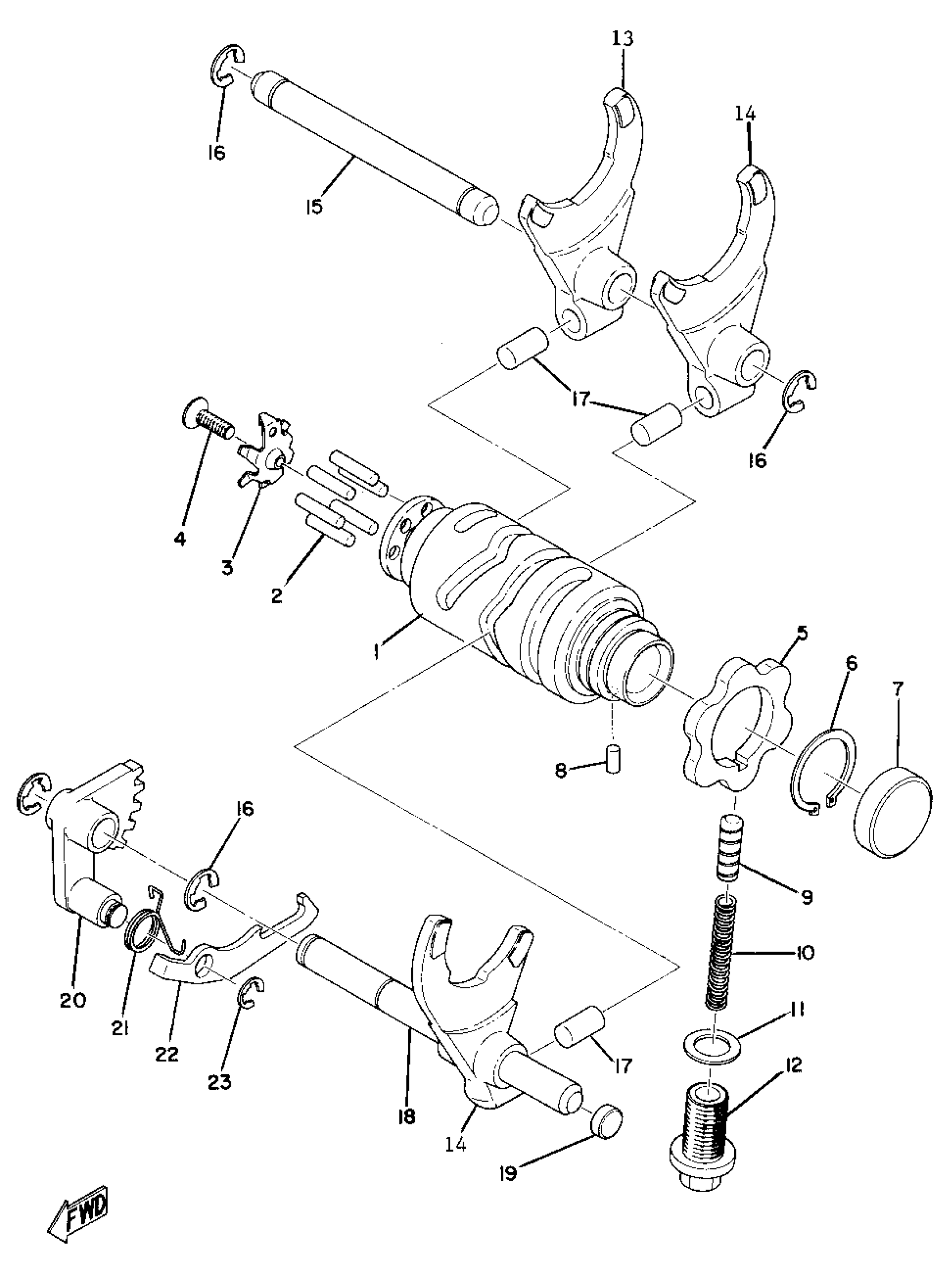

1973 Yamaha MX360 (MX360) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

364-18541-00-00

1
Out of stock

1

SHIFT CAM ASSEMBLY (434-18541-03)

434-18540-03-00

1
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE 1

(363-18561-01-00)

1
Out of stock

3

PLATE, SIDE

434-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PLATE, STOPPER

360-18141-01-00

1
Out of stock

6

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

7

PLUG, SPEC''L SHAPE

(90338-32031-00)

1
Out of stock

8

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

9

STOPPER, CAM

278-18547-02-00

1
Out of stock

10

SPRING COMPRESSION278185570000

90501-10062-00

1
Out of stock

11

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

12

BOLT (1K8)

90109-14485-00

1
Out of stock

13

FORK, SHIFT 1

363-18511-00-00

—
Out of stock

14

FORK, SHIFT

364-18511-00-00

—
Out of stock

15

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

16

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

17

PIN, STRAIGHT

90250-08017-00

1
Out of stock

18

BAR, SHIF FRK GDE 1

(363-18531-00-00)

1
Out of stock

19

PLUG, BLIND

90334-10006-00

1
Out of stock

20

LEVER, SHIFT 2

(363-18122-00-00)

1
Out of stock

20

LEVER, CHANGE 2

434-18122-00-00

—
Out of stock

21

SPRING

90508-08008-00

1
Out of stock

22

LEVER, CHANGE 3

498-18151-03-00

—
Out of stock

23

CIRCLIP

99080-07600-00

1

$2.89

In stock
