1973 Yamaha MX360 (MX360) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1973 Yamaha MX360 (MX360), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

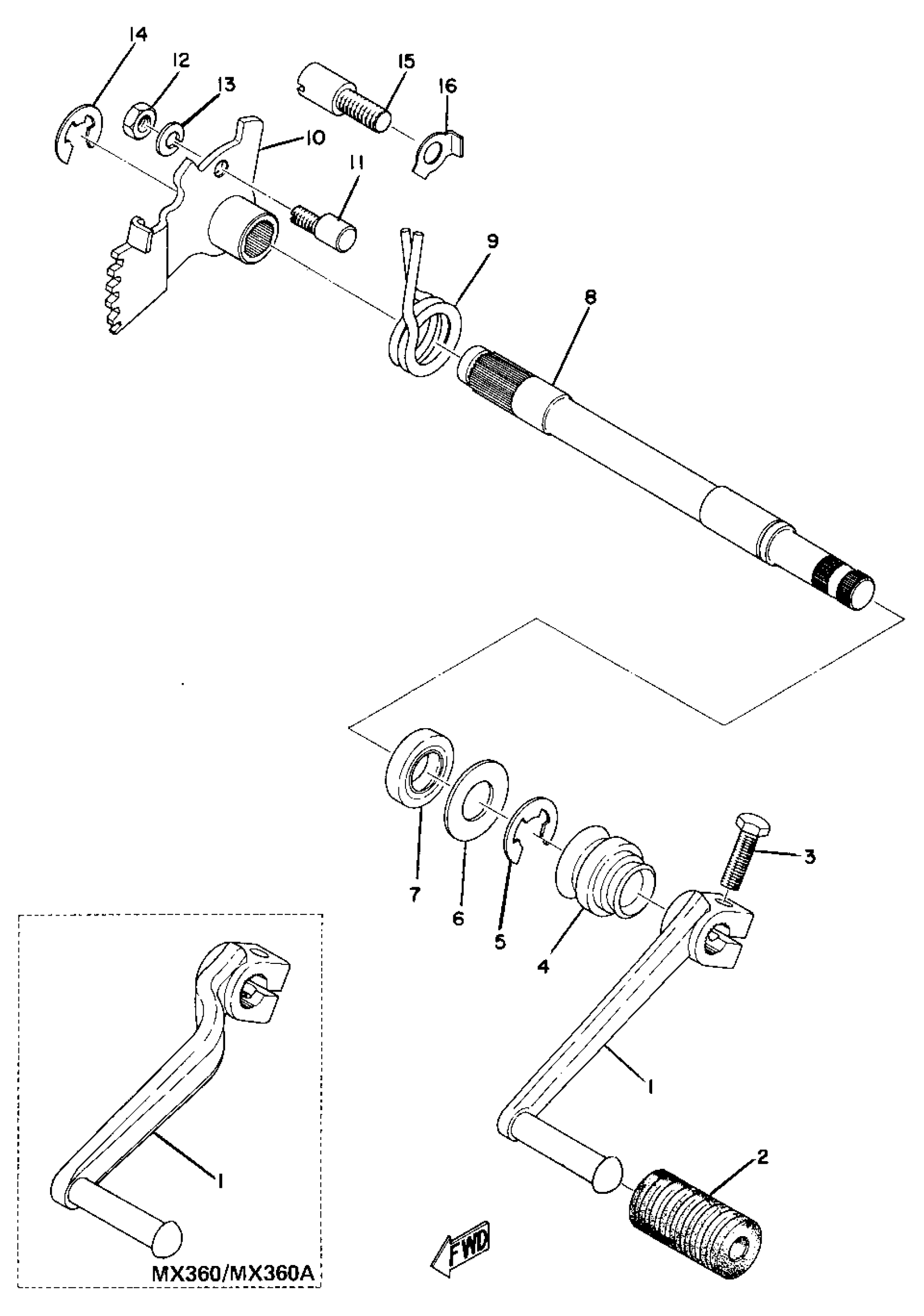

1973 Yamaha MX360 (MX360) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

1M1-18111-01-00

1
Out of stock

1

SHIFT PEDAL ASSEMBLY

22U-18110-00-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

BOOT

214-18131-00-00

1
Out of stock

5

. CIRCLIP

99001-12600-00

1

$5.78

In stock

6

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

7

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

8

SHAFT, CHANGE

363-18125-00-00

1
Out of stock

9

SPRING TORSION 214181240000

90508-32052-00

1
Out of stock

10

LEVER, SHIFT 1

363-18121-00-00

1
Out of stock

10

LEVER, CHANGE 1

434-18121-00-00

1
Out of stock

11

SCREW 214181860000

90149-06017-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

WASHER, LOCK

90215-06016-00

1
Out of stock

14

CIRCLIP

99006-10600-00

—

$6.91

In stock

15

STOPPER, SCREW

278-18127-01-00

—
Out of stock

16

WASHER

90215-08015-00

1
Out of stock
