1975 Yamaha MX250 (MX250B) Rear Wheel Diagram

← All diagrams

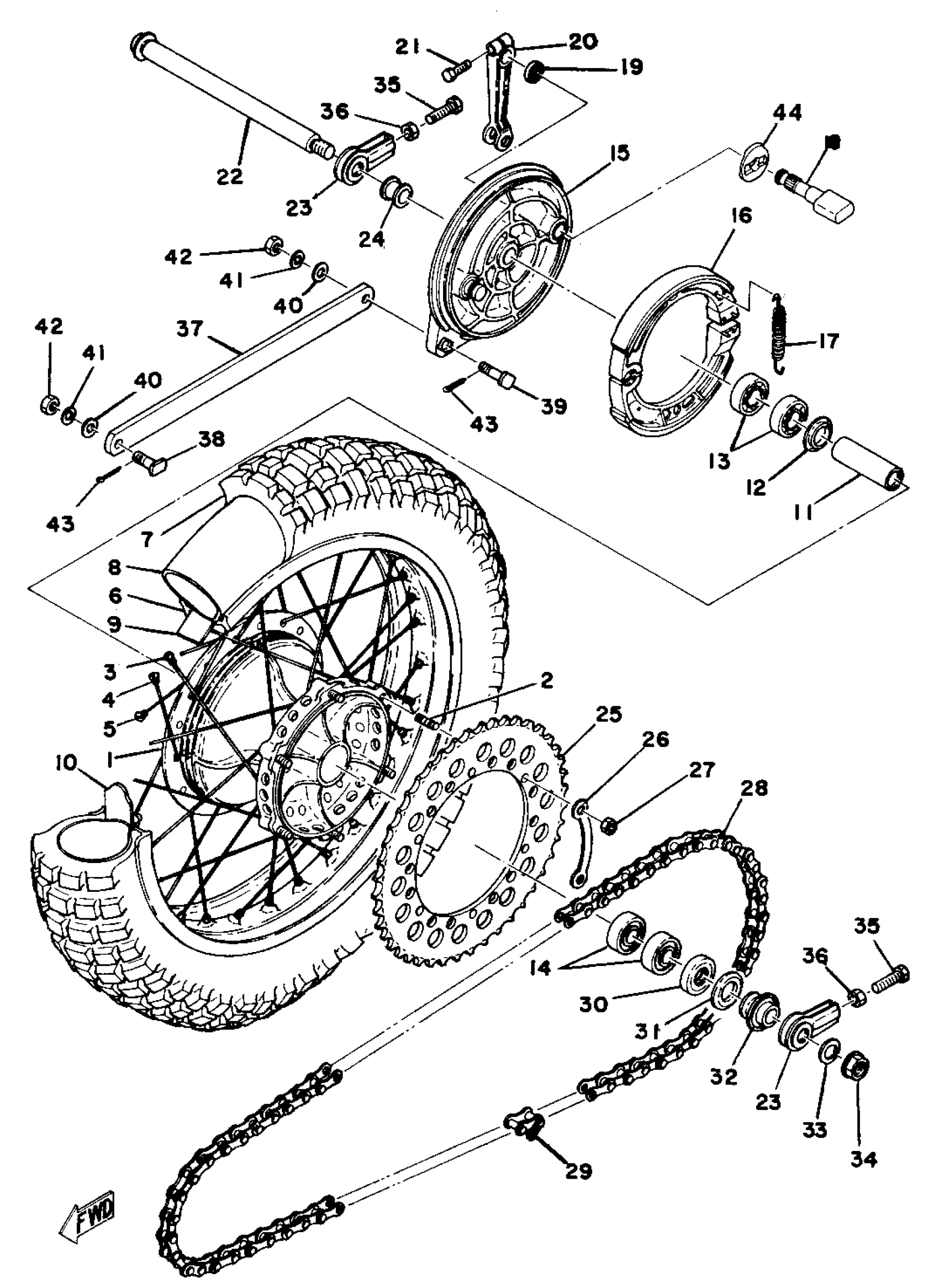

Find the part on the Rear Wheel diagram for your 1975 Yamaha MX250 (MX250B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1975 Yamaha MX250 (MX250B) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

1
Out of stock

1

HUB, REAR

483-25311-13-98

1
Out of stock

1

HUB, REAR

483-25311-13-98

1
Out of stock

2

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

3

SPOKE SET, INNER 2

(431-25396-90-00)

1
Out of stock

4

SPOKE SET, INNER 1

(431-25391-90-00)

1
Out of stock

5

SPOKE SET, OUTER 1

(431-25392-90-00)

1
Out of stock

6

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

1
Out of stock

7

460X18 DUN SR SPRT

(94146-18109-00)

1
Out of stock

8

TUBE

(94246-18040-00)

1
Out of stock

9

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

10

SPACER,BEAD

1T1-25394-01-00

1
Out of stock

11

SPACER, BEARING

483-25317-01-00

1
Out of stock

12

FLANGE, SPACER

483-25315-00-00

1
Out of stock

13

1

$31.64

In stock

14

1

$31.64

In stock

15

PLATE, BRAKE SHOE

(483-25321-00-98)

1
Out of stock

16

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

17

—

$8.09

In stock

18

CAMSHAFT

(431-25351-00-00)

1
Out of stock

18

CAMSHAFT

(509-25351-00-00)

1
Out of stock

19

CAMSHAFT

(169-25351-00-00)

1
Out of stock

20

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

1
Out of stock

21

BOLT (682)

97013-08025-00

—

$6.80

In stock

22

AXLE, WHEEL

(431-25381-00-00)

1
Out of stock

23

PULLER, CHAIN 1

431-25388-00-00

1
Out of stock

24

COLLAR

90387-17215-00

1
Out of stock

25

SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)

431-25450-04-XX

1
Out of stock

25

SPROCKET, DRIVN 52T

(431-25452-04-XX)

1
Out of stock

25

SPROCKET, DRIVN 54TSPROCKET WHEEL (54T)

431-25454-04-XX

1
Out of stock

26

WASHER

509-25412-00-00

1
Out of stock

27

NUT, HEXAGON (509)

90170-08158-00

—

$1.10

In stock

28

520 DS 106L

94585-20106-00

1
Out of stock

29

. JOINT CHAIN

94680-11001-00

1
Out of stock

30

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

31

COVER, HUB DUST

431-25367-00-00

1
Out of stock

32

COLLAR

90387-17555-00

1
Out of stock

33

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

34

NUT, HEXAGON

90170-16177-00

1
Out of stock

35

BOLT

90101-08060-00

—

$4.92

In stock

36

. NUT

95380-08700-00

1

$3.07

In stock

37

BAR, TENSION

(509-25371-00-00)

1
Out of stock

38

BOLT

(90109-08378-00)

1
Out of stock

39

BOLT

90109-08176-00

1
Out of stock

40

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

41

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

42

. NUT

95380-08700-00

1

$3.07

In stock

43

PIN, COTTER

91490-20025-00

—

$1.31

In stock

44

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock
